Rittal SV 9666.757 Mounting angle - 7 U (1050 mm)
Part Number: 9666757
Manufacturer
Rittal
Part number
9666757
Alt Part Number
SV 9666.757
Quick Summary
SV 9666.757 is a mounting angle that subdivides the vertical support frame in AE enclosures. For engineers, cluttered racks and ad hoc expansions create misalignment and wiring challenges. While SIL, CE, and IP ratings are not listed for this component, it is classified under ETIM 7.0 EC001900 and ECLASS 8.0 27400613, aligning with common procurement classifications. This accessory integrates with AX/AE enclosures and enables scalable, neat layouts, helping you meet installation standards and improve maintenance workflows. In practice, you gain enhanced traceability and faster changeouts, supported by a robust, metal-backed solution that scales with your automation infrastructure.
Product Information
Extended Description

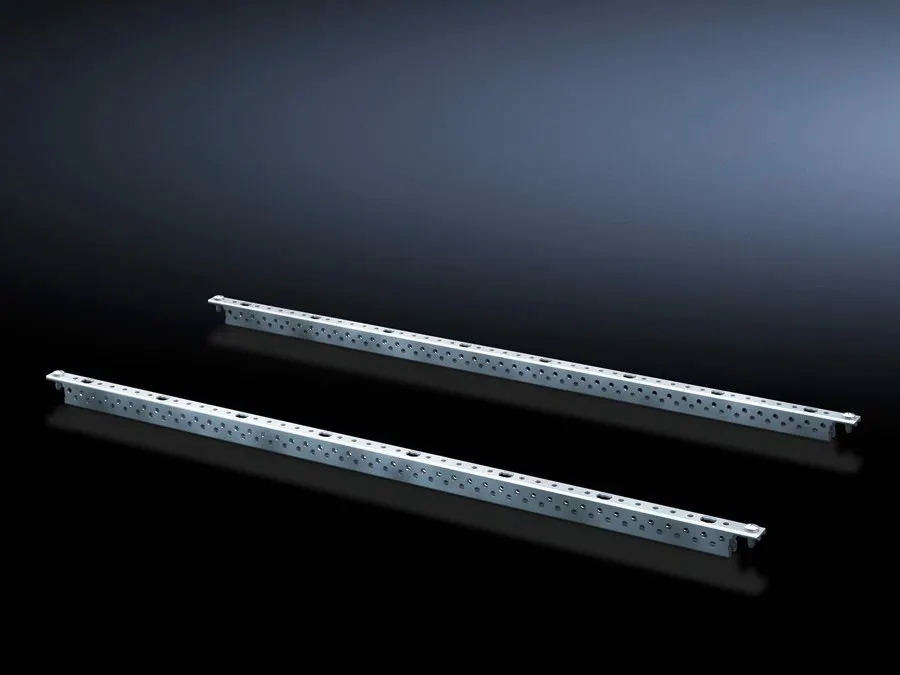

9666757 Rittal: SV Mounting angle (ISV), 7 U (1050 mm), for AE
Article number
SV 9666.757
Product description
For vertical sub-division of the support frame in the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions
Height:Â 1,050 mm
Size
Height units (U) @ 150 mm:Â 7
Packs of
2 pc(s).
Weight/pack
1.448 kg
PCF per pack (cradle-to-gate)
5.5Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177679955
ETIM 7.0
EC001900
ECLASS 8.0
27400613
Product description
SV Mounting angle (ISV), 7 U (1050 mm), for AE
ISV mounting angle provides a defined subdivision within the enclosure's vertical support frame, delivering a structured backbone for internal wiring. This translates to faster assembly, easier cable routing, and a predictable mounting grid, reducing layout errors during expansion. Applied to AX/AE enclosures, it supports 7 U height at 1050 mm, enabling scalable configurations. Constructed from sheet steel with a zinc-plated surface, the ISV angle resists corrosion in harsh industrial environments. The robust material choice lowers long-term maintenance costs and extends enclosure life, keeping critical components protected. Pack size is 2 pieces; weight per pack is 1.448 kg, enabling predictable logistics and stocking. PCF per pack is 5.5 kg CO2 eq (Cat B), supporting sustainable procurement. ETIM 7.0 EC001900 and ECLASS 8.0 27400613 ensure standardised, interoperable specifications across BOMs. Downloads include the PDF view and multilingual instructions for quick reference, reducing field risk and downtime.
Get a Quick Quote for a Rittal 9666757
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666757?
Enquire Now
FAQs
SV 9666.757 is designed as an ISV mounting angle for vertical subdivision of the AE enclosure's support frame, compatible with AX/AE systems. It provides a 7 U high, 1050 mm tall subdivision that aligns with standard Rittal mounting grids, enabling clean cable routes and modular expansion without reconfiguring internal mounts.
The mounting angle is 7 U tall (1050 mm), made from sheet steel with a zinc-plated finish. It ships in packs of two pieces, with a weight of 1.448 kg per pack. The article number is SV 9666.757, and the accompanying EAN is 4028177679955, facilitating easy procurement and inventory management.
Specific SIL, CE, or IP ratings are not listed for this mounting angle. However, it is classified under ETIM 7.0 EC001900 and ECLASS 8.0 27400613, which supports standardised procurement and interoperability within industrial automation projects.
The product has a cradle-to-gate PCF of 5.5 kg CO2 equivalent per pack (Cat B). This measure helps buyers assess environmental impact during supplier selection and lifecycle sustainability planning.
Rittal provides downloadable documentation for SV 9666.757, including a PDF view and multilingual instructions (DE, EN, ES, RU). For installation guidance, consult the supplied drawings and the 9666757_Instructions_DE_EN_ES_RU file to ensure correct alignment with the AE enclosure's mounting grid and to minimize commissioning time.
