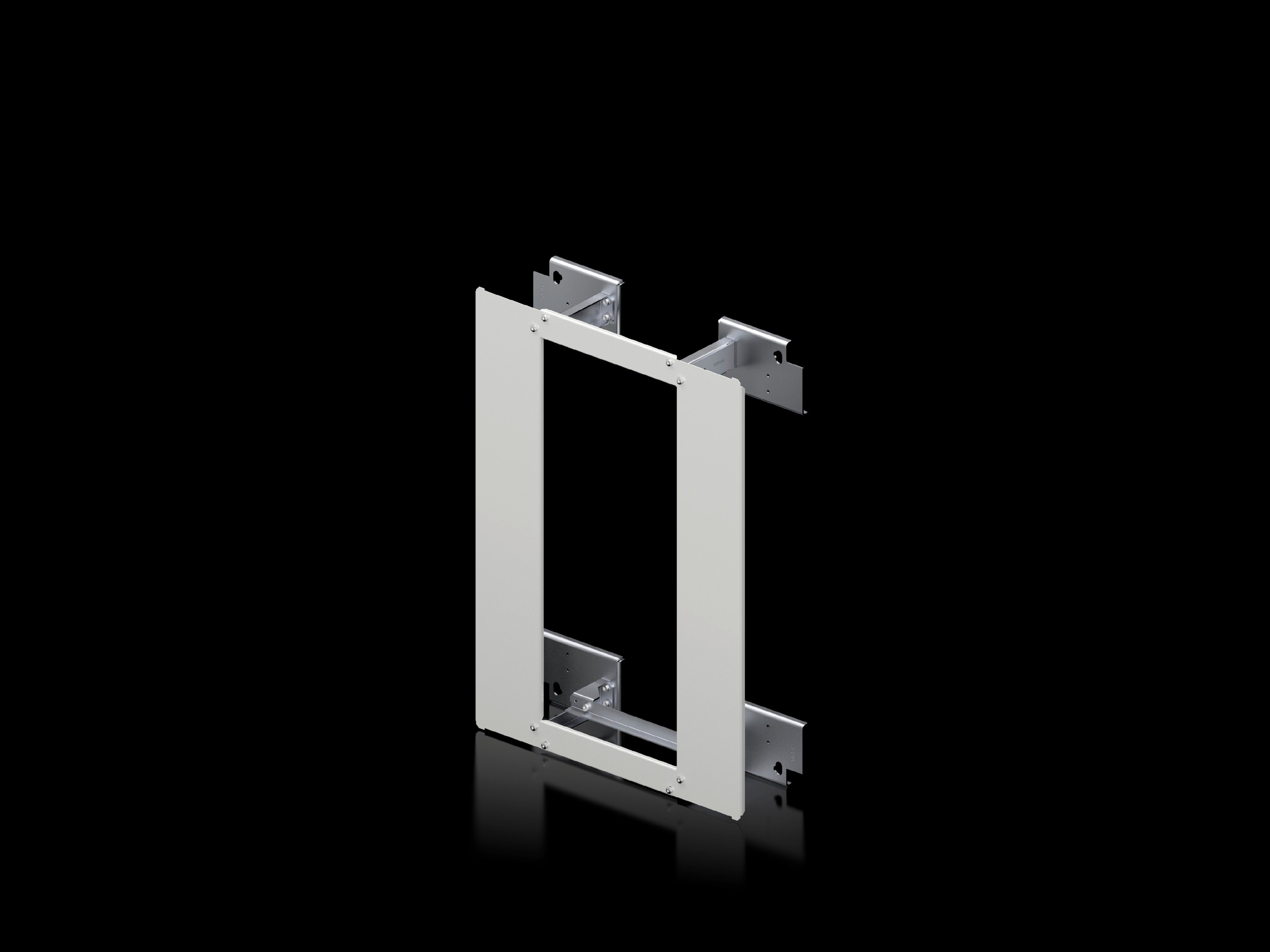

Rittal SV Installation Kit 9666811 - AE enclosures 500x700x250
Part Number: 9666811
Manufacturer
Rittal
Part number
9666811
Alt Part Number
SV 9666.811
Quick Summary
Rittal SV Installation Kit 9666811 is a mounting solution for ISV installation modules in AE enclosures. When engineers face tight timelines and the risk of misalignment during panel builds, this kit helps streamline the process. In typical industrial applications, it supports precise module positioning and safer cabling, with CE compliance and regional standards considerations for the installation. Designed for a 500x700x250 mm space, the kit uses 1 WU width and 4 U height to match ISV modules, and its sheet steel, zinc‑plated components plus included rails deliver durability and reliable performance in AX/AE environments.
Product Information
Extended Description
9666811 Rittal: SV Installation kit (ISV), 1 WU (250 mm), 4 U (600 mm), for AE (WHD: 500x700x250 mm)
Article number
SV 9666.811
Product description
For mounting ISV installation modules in enclosures.
Material
Assembly kit: Sheet steel, zinc-plated | Support rail: Sheet steel, zinc-plated | Contact hazard protection: Sheet steel, spray-finished
Supply includes
Assembly kit | Support rails | Contact hazard protection | Assembly parts
Size
Width units (WU) @ 250 mm:Â 1 | Height units (U) @ 150 mm:Â 4
To fit Model No.
1057.000
To fit
Width:Â 500 mm | Height:Â 700 mm | Depth:Â 250 mm
Packs of
1 pc(s).
Weight/pack
6.12 kg
Customs tariff number
83024900
EAN
4028177803787
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Installation kit (ISV), 1 WU (250 mm), 4 U (600 mm), for AE (WHD: 500x700x250 mm)
Feature: The kit combines an assembly kit with sheet steel, zinc-plated support rails, and hazard protection. Business Impact: This construction delivers corrosion resistance, longevity, and safer handling during assembly. Application: Ideal for ISV mounting in AE enclosures, where long service life and reliable protection matter. Feature: Included rails and assembly parts provide a turnkey mounting solution. Business Impact: Reduces on-site wiring errors and misalignment, shortening installation time and increasing first-pass correctness. Application: Fits standard 1 WU by 4 U ISV modules in AX/AE cabinets. Feature: Defined size and weight—1 WU @ 250 mm, 4 U @ 150 mm, weight per pack 6.12 kg. Business Impact: Improves handling, reduces crane or lift requirements, and supports predictable logistics. Application: Useful for controlled-panel builds in manufacturing and process environments. Feature: Specific to enclosure fit—WHD 500x700x250 mm and To fit Model No. 1057.000. Business Impact: Ensures a precise, repeatable installation footprint, minimizing gaps and rework. Application: Facilitates compliant mounting of ISV modules within AE enclosures. Feature: Packaging and compatibility with AE systems. Business Impact: Streamlines procurement with a single, compatible kit and predictable lead times. Application: Works seamlessly with AX/AE enclosure ecosystems for ISV installation modules.
Get a Quick Quote for a Rittal 9666811
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666811?
Enquire Now
FAQs
To install the SV Installation Kit in an AE enclosure, mount the ISV installation module onto the supplied rails, attach the zinc-plated support rails, and secure the hazard protection as described in the included instructions. The kit is designed for 1 WU by 4 U ISV modules with a WHD of 500x700x250 mm, ensuring alignment aides and components fit within the enclosure without modification.
SV 9666.811 provides 1 width unit (WU) at 250 mm and 4 height units (U) at 150 mm, with a WHD footprint of 500x700x250 mm. Weight per pack is 6.12 kg. These dimensions support stable, repeatable mounting for ISV modules in AE enclosures, reducing risk of misalignment and enabling consistent panel builds in production environments.
The kit is specified for mounting ISV modules in AE enclosures, with references to AX/AE environments. While it is purpose-built for AE dimensions and ISV installation, always verify with Rittal documentation or your distributor for cross-series compatibility to avoid fitment issues and ensure proper support rails align with the enclosure’s internal mounting points.
The provided data does not explicitly list certifications for this kit. In practice, check your regional requirements and the supplier’s documentation for CE marking and any country-specific standards. For stricter governance in regulated environments, request the full compliance and certification dossier from Rittal or the authorized distributor.
Yes. The kit standardizes ISV mounting with precise 1 WU/4 U sizing, included rails, and hazard protection, which minimizes field customization, reduces misalignment risks, and shortens installation cycles. Over time this translates to lower labor costs, fewer reworks, and more predictable maintenance planning for enclosure-based control systems.
