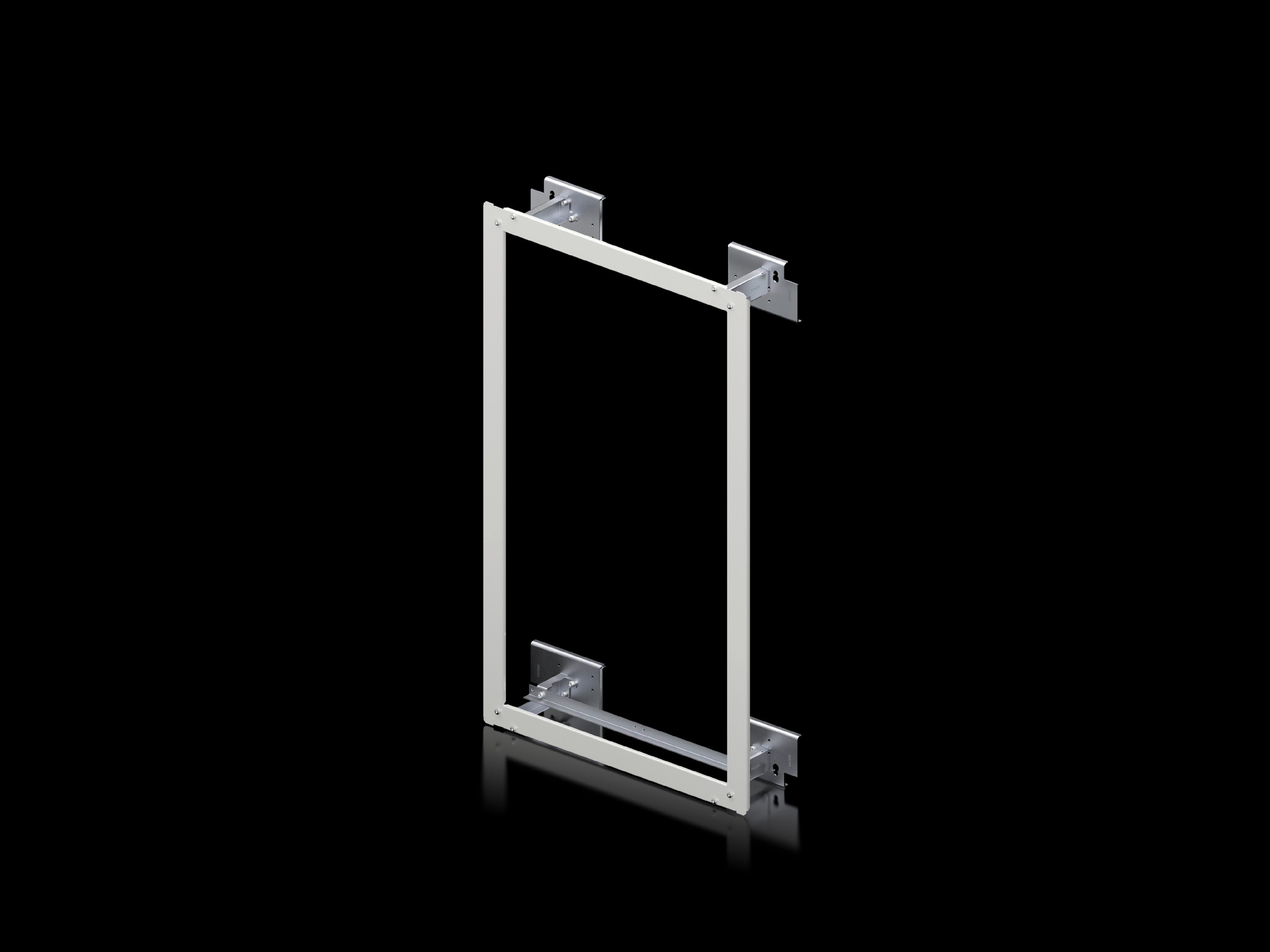

Rittal SV 9666.831 Installation Kit - 2 WU, 6 U for AE
Part Number: 9666831
Manufacturer
Rittal
Part number
9666831
Alt Part Number
SV 9666.831
Quick Summary
The Rittal SV 9666.831 Installation Kit is a mounting solution designed to support ISV installation modules inside AX/AE enclosures. It addresses common challenges like precise module alignment, rail compatibility, and restricted service access during enclosure upgrades. The kit meets CE certification expectations and is designed to enable safe operation in IP-rated environments when installed per Rittal guidelines. By delivering a standardized assembly with included rails and hazard protection, it simplifies procurement and on-site installation. This approach supports enclosures & electrical infrastructure workflows while delivering tangible business value through faster installations and easier future reconfigurations.
Product Information
Extended Description
9666831 Rittal: SV Installation kit (ISV), 2 WU (500 mm), 6 U (900 mm), for AE (WHD: 600x1000x250 mm)
Article number
SV 9666.831
Product description
For mounting ISV installation modules in enclosures.
Material
Assembly kit: Sheet steel, zinc-plated | Support rail: Sheet steel, zinc-plated | Contact hazard protection: Sheet steel, spray-finished
Supply includes
Assembly kit | Support rails | Contact hazard protection | Assembly parts
Size
Width units (WU) @ 250 mm:Â 2 | Height units (U) @ 150 mm:Â 6
To fit Model No.
1090.000
To fit
Width:Â 600 mm | Height:Â 1,000 mm | Depth:Â 250 mm
Packs of
1 pc(s).
Weight/pack
6.08 kg
Customs tariff number
83024900
EAN
4028177803763
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Installation kit (ISV), 2 WU (500 mm), 6 U (900 mm), for AE (WHD: 600x1000x250 mm)
Feature: Defined mounting footprint for ISV modules with 2 WU (500 mm) width and 6 U (900 mm) height fits within AE enclosures. Business Impact: Maximizes usable enclosure space and reduces or eliminates need for custom fabrication, accelerating project timelines. Application: Ideal for AX/AE enclosure modernization where ISV installation modules are common. Feature: Durable materials—assembly kit, rails, and hazard protection are sheet steel, zinc-plated or spray-finished for long-term reliability. Business Impact: Improves corrosion resistance and safety compliance, lowering maintenance costs over the product life. Application: Suitable for harsh industrial environments in manufacturing plants. Feature: Complete supply includes assembly kit, support rails, contact hazard protection, and all assembly parts. Business Impact: Streamlines procurement, reduces vendor coordination, and cuts installation lead times. Application: Great for standardizing on one, repeatable ISV mounting solution. Feature: Precise dimensions matched to AE/WHD 600x1000x250 mm and Model No. 1090.000. Business Impact: Ensures predictable fit, reduces field guesswork, and supports rapid commissioning. Application: Essential for projects with strict enclosure size specs. Feature: Pack size and weight (1 pack, 6.08 kg). Business Impact: Easy handling and shipping planning, enabling faster stocking and reduced freight costs. Application: Beneficial for warehouse and maintenance teams managing enclosure upgrades.
Get a Quick Quote for a Rittal 9666831
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666831?
Enquire Now
FAQs
The kit ships with an assembly kit, rails, and hazard protection designed for AE and AX enclosures. Follow the included installation parts, align the ISV module to 2 WU by 6 U, and secure with the provided rails to ensure a stable mounting that preserves service access.
The kit supports 2 WU @ 250 mm width and 6 U @ 150 mm height, designed to fit AE dimensions of 600x1000x250 mm. It is compatible with Model No. 1090.000 and includes all parts needed for a complete installation.
The installation kit is designed to support CE-compliant installations in European markets. When used within appropriate IP-rated enclosures and installed per Rittal guidelines, it helps maintain safe operation and enclosure integrity during ISV mounting.
Each pack weighs 6.08 kg and is sold as 1 piece per pack, with included assembly parts, rails, and hazard protection to simplify handling and shipping logistics.
The kit standardizes mounting, reduces installation time, ensures reliable module alignment, and minimizes maintenance complexity, contributing to lower total cost of ownership and faster project commissioning.
