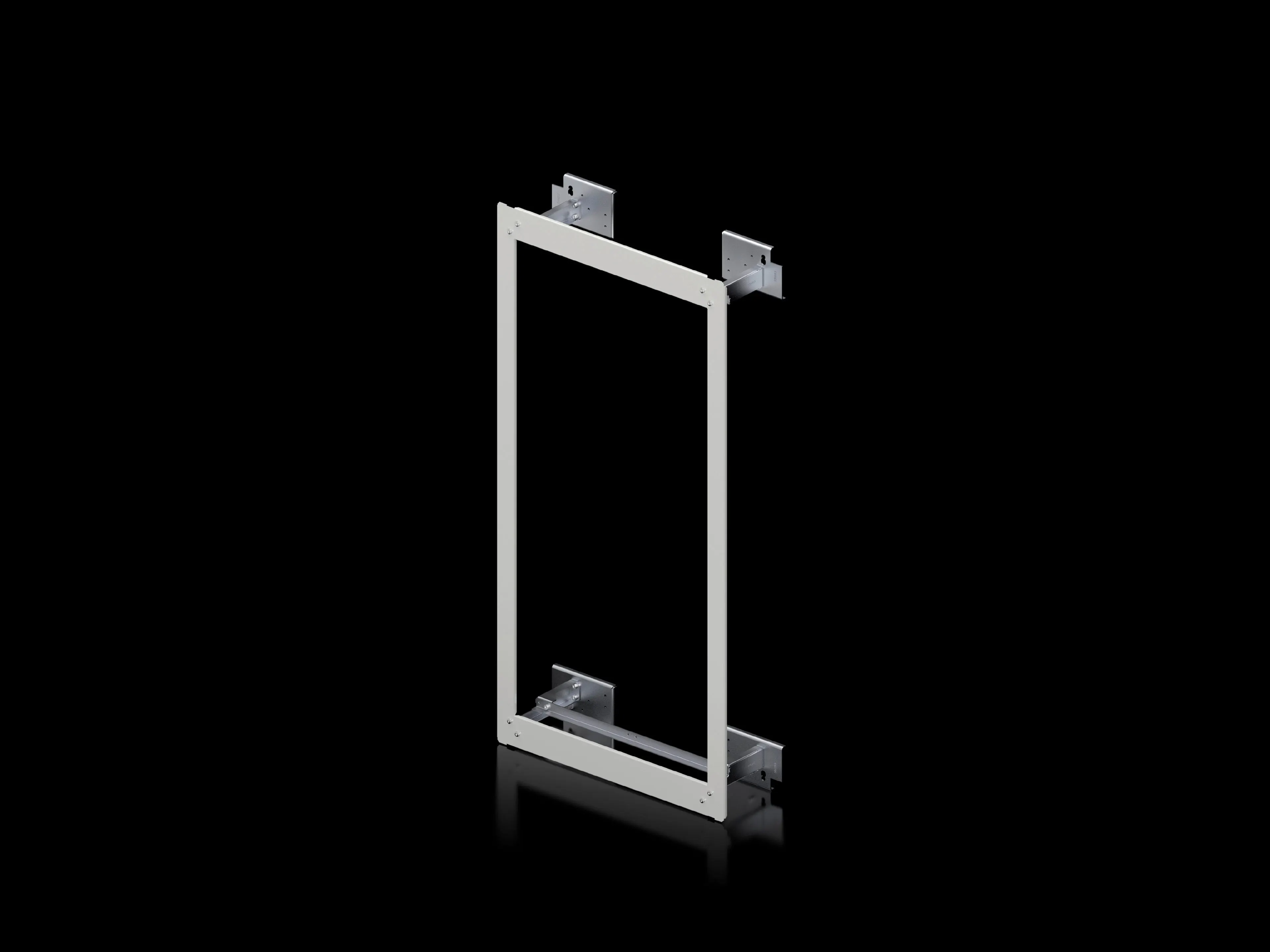

Rittal 9666841 SV Installation kit - AE 600x1200x300
Part Number: 9666841
Manufacturer
Rittal
Part number
9666841
Alt Part Number
SV 9666.841
Quick Summary
SV Installation kit is designed to mount ISV installation modules in AX/AE enclosures, delivering clean, reliable panel integration. Engineers often struggle with precise alignment and secure mounting in tight control panels, which can slow commissioning and increase rework. ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications support interoperability with your parts system, while the kit’s sheet steel construction offers robust durability. Note that explicit CE/SIL/IP ratings aren’t listed in the data, so market-specific compliance should be verified. This solution reduces sourcing complexity since the kit includes rails, contact hazard protection, and assembly parts, streamlining procurement. In summary, it improves installation speed, consistency, and long-term maintenance in industrial automation projects.
Product Information
Extended Description
9666841 Rittal: SV Installation kit (ISV), 2 WU (500 mm), 7 U (1050 mm), for AE (WHD: 600x1200x300 mm)
Article number
SV 9666.841
Product description
For mounting ISV installation modules in enclosures.
Material
Assembly kit: Sheet steel, zinc-plated | Support rail: Sheet steel, zinc-plated | Contact hazard protection: Sheet steel, spray-finished
Supply includes
Assembly kit | Support rails | Contact hazard protection | Assembly parts
Size
Width units (WU) @ 250 mm: 2 | Height units (U) @ 150 mm: 7
To fit Model No.
1260.000
To fit
Width: 600 mm | Height: 1,200 mm | Depth: 300 mm
Packs of
1 pc(s).
Weight/pack
6.7 kg
Customs tariff number
83024900
EAN
4028177803756
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Installation kit (ISV), 2 WU (500 mm), 7 U (1050 mm), for AE (WHD: 600x1200x300 mm)
Feature: The SV Installation kit provides a dedicated mounting frame for ISV installation modules inside AE enclosures, sized at 2 WU and 7 U to align with standard AX/AE racks, with a WHD of 600x1200x300 mm. Business impact: This precise footprint minimizes misalignment, reduces field rework, and speeds commissioning for new control panels and retrofit projects. Application: It is designed for ISV mounting in automation panels, supporting consistent module placement and repeatable results across multiple builds. Feature: Construction uses sheet steel, zinc-plated assembly components, support rails, and spray-finished contact hazard protection for corrosion resistance. Business impact: The rugged finish extends service life in factory environments and minimizes preventive maintenance costs. Application: Suitable for enclosure mounting hardware where long-term reliability under vibration and temperature swings is essential in industrial facilities. Feature: The supply includes an assembly kit, support rails, contact hazard protection, and assembly parts, providing a complete installation solution. Business impact: One-stop procurement shortens lead times, reduces stockouts, and eliminates mis-matched components, accelerating project schedules. Application: Particularly beneficial during enclosure retrofits or capacity upgrades in manufacturing lines. Feature: Precise fit with Model No. 1260.000 and a 600 mm width by 1200 mm height footprint (depth 300 mm). Business impact: Ensures compatibility across common enclosure sizes, lowering modification costs and simplifying replacement planning. Application: Widely used by panel builders and system integrators for reliable ISV installations in OEM assemblies. Feature: Manageable handling with 6.7 kg weight per pack and a single-pack configuration. Business impact: Easier on-site handling and safer lifting during installation, reducing labor risk and overall installation time. Application: Suitable for regular field installs and site upgrades in mid-to-large scale industrial facilities.
Get a Quick Quote for a Rittal 9666841
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666841?
Enquire Now
FAQs
Yes. It is designed for AE enclosures and supports ISV installation modules within AX/AE racks. It fits AE enclosures with WHD of 600x1200x300 mm and aligns to Model No. 1260.000. The kit provides 2 WU width and 7 U height for precise, repeatable ISV mounting. Each pack is 1 piece.
Key dimensions are 2 WU (500 mm) width and 7 U (1050 mm) height, with a WHD of 600x1200x300 mm for AE. Weight per pack is 6.7 kg. The kit includes the assembly kit, support rails, contact hazard protection, and assembly parts, all in a 1 pc pack to simplify procurement.
Ideal for industrial automation, panel builders, and control-room upgrades needing ISV mounting in AE enclosures. It supports reliable, repeatable ISV installations in manufacturing lines, automation panels, and retrofit projects where enclosure footprint is standardized.
The data lists ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications for interoperability. CE/SIL/IP ratings are not specified in the provided data, so market-specific compliance should be verified with local requirements.
The kit provides a complete installation solution (assembly kit, rails, protection, parts), reducing procurement steps and field rework. Its standardized footprint and 6.7 kg weight per pack improve on-site handling, shorten installation time, and lower lifecycle maintenance costs in automation projects.
