Rittal 9666912 VX Installation Kit - 3 WU/12U
Part Number: 9666912
Manufacturer
Rittal
Part number
9666912
Alt Part Number
SV 9666.912
Quick Summary
Rittal 9666912 VX Installation Kit is a mounting accessory for ISV modules in VX enclosures. It provides a ready-to-install mounting frame and protective components to simplify ISV integration and reduce installation time. Users often confront misalignment and sourcing delays when adding ISV hardware, which this kit eliminates with a standardized mounting system. The solution aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, supporting data-driven procurement and cross-system compatibility. With a 3 WU by 12 U footprint and an enclosure footprint of 850x2000 mm, it streamlines cabinet planning, maintenance, and spare-parts management. In practice, this enables faster deployments, lower field labor costs, and scalable enclosure architectures for growing control- and automation-focused projects.
Product Information
Extended Description
9666912 Rittal: VX Installation kit (ISV), 3 width units WU (750 mm), 12 U (1800 mm), (WH: 850x2000 mm)
Article number
SV 9666.912
Product description
For mounting ISV installation modules in the enclosure.
Material
Mounting frame holder: Sheet steel, zinc-plated | Contact hazard protection: Sheet steel, spray-finished | Contact hazard protection, sides: PVC
Supply includes

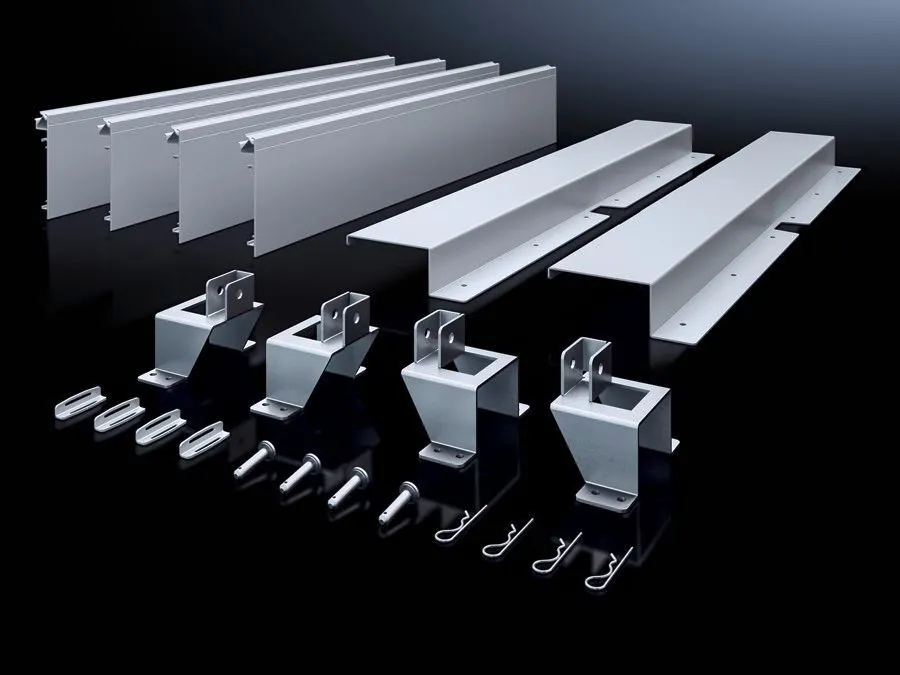

Mounting aid support | Contact hazard protection | Assembly parts
Size
Width units (WU) @ 250 mm: 3 | Height units (U) @ 150 mm: 12
To fit Model No.
9666.916
Note on Model No.
Mounting angle 9666.712 and mounting plate 8612.400 are additionally required
To fit
Width: 850 mm | Height: 2,000 mm | Depth: 400 mm | 600 mm
Packs of
1 pc(s).
Weight/pack
8.5 kg
Customs tariff number
83024900
EAN
4028177923294
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
VX Installation kit (ISV), 3 width units WU (750 mm), 12 U (1800 mm), (WH: 850x2000 mm)
Feature: Integrated mounting frame holder and hazard protection improves safety and reduces installation errors. Business impact: Fewer misalignments and less rework, leading to shorter project timelines and lower labor costs. Application: Ideal for ISV installation modules inside VX enclosures, supporting repeatable, standards-based assembly. Feature: Precise footprint and fit with 3 width units by 12 height units (3 WU, 12 U) and 850x2000 mm overall dimensions. Business impact: Consistent cabinet integration across multiple VX enclosures, enabling faster scheduling and easier spare parts planning. Application: VIN-compatible with 9666.916 and similar VX configurations. Feature: Durable materials—sheet steel, zinc-plated mounting frame, plus sheet steel with spray finish for contact hazards and PVC sides. Business impact: Enhanced corrosion resistance and user safety in harsh industrial environments, reducing maintenance costs over the life of the enclosure. Application: Suitable for demanding factory floors and outdoor-rated installations. Feature: Complete supply includes mounting aid support, hazard protection, and assembly parts. Business impact: Reduces sourcing complexity and supplier touchpoints, accelerating procurement and deployment. Application: Streamlines onboarding for installation teams and reduces downtime. Feature: Compatibility notes and modular add-ons—note that mounting angle 9666.712 and mounting plate 8612.400 are required, and maximum depth options are 400/600 mm. Business impact: Clarifies upgrade paths and avoids mis-purchases, ensuring a correct, scalable fit. Application: Essential for planning phase and change management in evolving VX installations. Feature: Compliance-friendly data with ETIM 9 EC002525 and ECLASS 8.0 27400613 alignment. Business impact: Improves ERP/MRP integration and parts data accuracy, supporting accurate BOMs and procurement workflows. Application: Beneficial for large-scale manufacturing sites with standardized data models.
Get a Quick Quote for a Rittal 9666912
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666912?
Enquire Now
FAQs
Yes. The SV 9666.912 VX Installation Kit is designed specifically to mount ISV installation modules inside VX enclosures and fits the 9666.916 model as a reference point for compatibility.
The kit provides 3 width units (WU) and 12 height units (U) with an overall width of 850 mm and height of 2000 mm. Each pack weighs 8.5 kg, with 1 piece per pack.
The package includes a mounting aid support, contact hazard protection, and assembly parts. Note that mounting angle 9666.712 and mounting plate 8612.400 are additionally required for full installation.
The product is classified under ETIM 9 EC002525 and ECLASS 8.0 27400613, which supports data-driven procurement and system interoperability, although explicit CE/SIL/IP ratings are not listed in the data.
By providing a standardized mounting framework and hazard protection, the kit reduces setup time, minimizes alignment issues, and facilitates scalable expansions or replacements within VX enclosure fleets.
