Rittal 9666922 VX Installation Kit - 1100x2000 mm
Part Number: 9666922
Manufacturer
Rittal
Part number
9666922
Alt Part Number
SV 9666.922
Quick Summary
Rittal 9666922 VX Installation Kit mounts ISV installation modules inside VX enclosures, delivering a compact, secure mounting solution for industrial control panels. In space-constrained panels, engineers frequently struggle with precise alignment and cable routing, which can slow down projects and increase risk of misfit. The kit supports VX footprints: 4 width units (WU) at 250 mm each and 12 U height, designed for enclosures with overall dimensions of 1100x2000 mm. By aligning with industry-standard safety and conformity practices and enabling straightforward assembly with included mounting aids and parts, it helps shorten installation time and improve repeatability while enabling efficient procurement.
Product Information
Extended Description
9666922 Rittal: VX Installation kit (ISV), 4 width units WU (1000 mm), 12 U (1800 mm), (WH: 1100x2000 mm)
Article number
SV 9666.922
Product description
For mounting ISV installation modules in the enclosure.
Material
Mounting frame holder: Sheet steel, zinc-plated | Contact hazard protection: Sheet steel, spray-finished | Contact hazard protection, sides: PVC
Supply includes

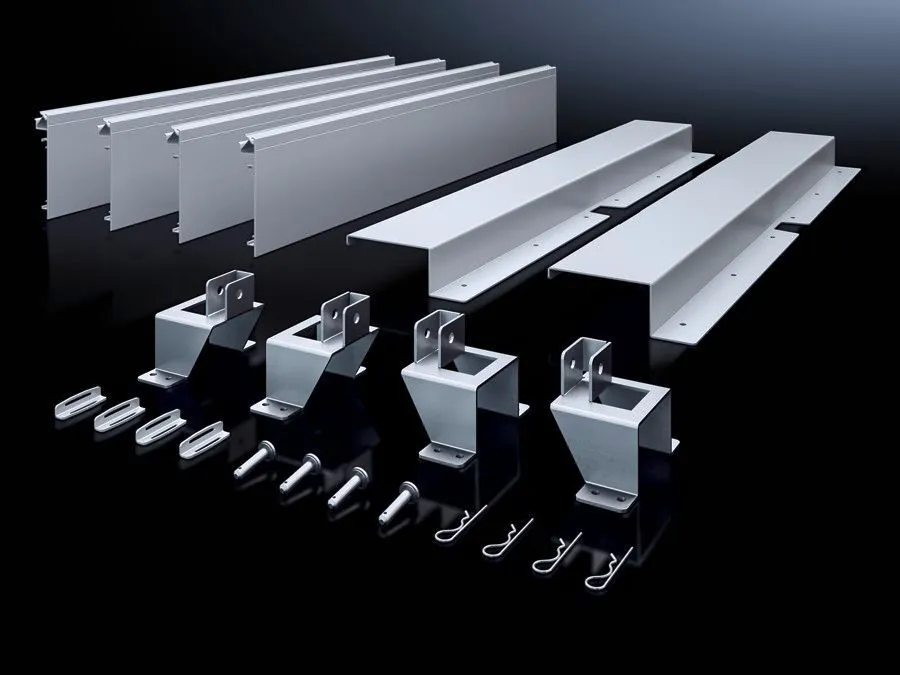

Mounting aid support | Contact hazard protection | Assembly parts
Size
Width units (WU) @ 250 mm: 4 | Height units (U) @ 150 mm: 12
To fit Model No.
9666.926
Note on Model No.
Mounting angle 9666.712, depth stay 9666.732 and mounting board 8612.400 are additionally required
To fit
Width: 1,100 mm | Height: 2,000 mm | Depth: 400 mm | 600 mm
Packs of
1 pc(s).
Weight/pack
10 kg
Customs tariff number
83024900
EAN
4028177923263
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
VX Installation kit (ISV), 4 width units WU (1000 mm), 12 U (1800 mm), (WH: 1100x2000 mm)
Feature: Robust mounting frame and hazard protection. Business impact: Improved mechanical stability, reduced risk of accidental contact, and longer service life in demanding environments. Application: Ideal for ISV module mounting inside VX enclosures where reliability is essential. Feature: Complete supply with mounting aid support, hazard protection, and assembly parts. Business impact: Cuts installation time and lowers external sourcing costs by providing everything needed in a single kit. Application: Accelerates projects and minimizes vendor coordination. Feature: Clear size compatibility with 4 WU and 12 U, plus VX footprint fit (1100x2000 mm). Business impact: Standardizes installations and simplifies procurement across sites. Application: Scales from single-panel installs to multi-site deployments. Feature: Durable materials (sheet steel, zinc-plated frame; PVC sides). Business impact: Enhances corrosion resistance and operator safety. Application: Suitable for industrial control environments. Feature: Weight per pack 10 kg and single-pack configuration. Business impact: Easy handling and precise scheduling in logistics and assembly workflows. Application: Mobile or on-site assembly scenarios.
Get a Quick Quote for a Rittal 9666922
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666922?
Enquire Now
FAQs
The kit is designed for VX enclosures with a 1100x2000 mm footprint and targets a 4 width unit (WU) configuration at 250 mm each, plus 12 U in height. Depth compatibility spans 400 to 600 mm, aligning with standard VX installation footprints and ensuring a secure ISV module mount.
The package comprises a mounting aid support, contact hazard protection, and assembly parts, delivering a complete mounting solution without needing additional accessories. This minimizes sourcing steps and reduces lead times during panel assembly.
Yes. The VX Installation Kit is specifically described for mounting ISV installation modules inside VX enclosures, providing a stable frame, protective features, and integration hardware to support reliable ISV module installation.
Verify that the enclosure system and overall installation meet your local CE, IP protection, and safety requirements. While the kit provides compatible mounting hardware and protection features, the specific regulatory certifications depend on the complete enclosure assembly and system configuration.
Adopting the VX Installation Kit reduces installation time, improves mounting repeatability, and lowers integration risk by supplying a complete, ready-to-install solution. This results in faster project completion, fewer site visits for parts, and more predictable maintenance planning across multiple sites.
