Rittal SV 9666.932 VX Installation Kit - ISV Fit
Part Number: 9666932
Manufacturer
Rittal
Part number
9666932
Alt Part Number
SV 9666.932
Quick Summary
Rittal SV 9666.932 VX Installation Kit enables mounting ISV installation modules in VX enclosures. Design teams often struggle with secure mounting alignment and protected cable routing in compact VX enclosures. This installation kit aligns with ETIM EC002525 and ECLASS 27400613 classifications, streamlining sourcing and cross-system compatibility. By delivering a complete mounting aid with mounting frame holder, contact hazard protection, and assembly parts, it reduces installation time, minimizes field adjustments, and improves safety. The kit fits VX enclosures measuring 600 mm wide by 1800 mm high, with 2 width units (WU 500 mm) and 11 U, supporting scalable configurations across the VX family. For procurement and service teams, this translates to repeatable installations and lower lifecycle costs.
Product Information
Extended Description
9666932 Rittal: VX Installation kit (ISV), 2 width units WU (500 mm), 11 U (1650 mm), (WH: 600x1800 mm)
Article number
SV 9666.932
Product description
For mounting ISV installation modules in the enclosure.
Material
Mounting frame holder: Sheet steel, zinc-plated | Contact hazard protection: Sheet steel, spray-finished | Contact hazard protection, sides: PVC
Supply includes

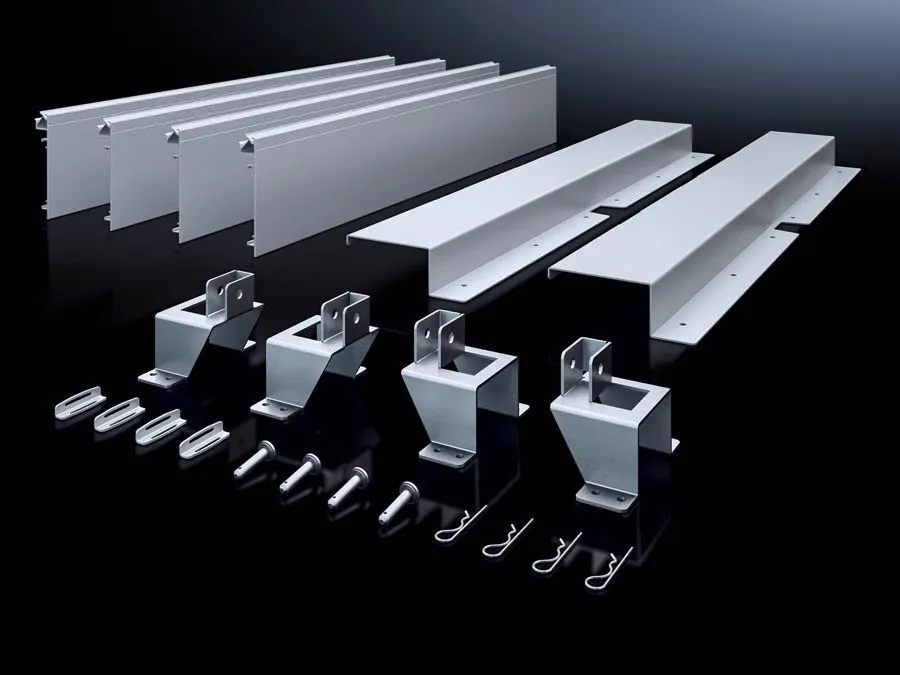

Mounting aid support | Contact hazard protection | Assembly parts
Size
Width units (WU) @ 250 mm: 2 | Height units (U) @ 150 mm: 11
To fit Model No.
8457.000
Note on Model No.
Mounting angle 9666.711 and mounting plate 8612.400 are additionally required
To fit
Enclosure type: VX | Width: 600 mm | Height: 1,800 mm | Depth: 400 mm | 500 mm | 600 mm
Packs of
1 pc(s).
Weight/pack
7 kg
Customs tariff number
83024900
EAN
4028177923287
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
VX Installation kit (ISV), 2 width units WU (500 mm), 11 U (1650 mm), (WH: 600x1800 mm)
VX Installation Kit includes a mounting frame holder and assembly parts, delivering precise alignment during ISV module installation. This reduces rework and keeps cabling tidy, accelerating installation in VX enclosures and improving overall project timelines. The kit is designed to fit VX enclosures with a 600 mm width and 1800 mm height, enabling rapid deployment across multiple cabinet lines. Compatibility and fit are reinforced by the inclusion of mounting aids and protective elements, lowering the risk of contact hazards during maintenance and commissioning. With a weight of 7 kg per pack and a single unit per pack, handling is straightforward for on-site teams, while standardised parts support consistent interior layouts and simplified spares management. Note that mounting angle 9666.711 and mounting plate 8612.400 are additional requirements for certain configurations, ensuring a robust and compliant installation.
Get a Quick Quote for a Rittal 9666932
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666932?
Enquire Now
FAQs
The SV 9666.932 kit is designed for VX enclosures with a width of 600 mm and height of 1,800 mm, supporting ISV installation modules. It includes mounting aids and hardware suitable for 2 WU (500 mm) and 11 U configurations, and it may require mounting angle 9666.711 and mounting plate 8612.400 for certain setups.
The package covers 2 width units (WU) at 500 mm each and 11 U in height, with a total enclosure footprint of 600x1800 mm. Each pack weighs 7 kg and includes mounting aid support, contact hazard protection, and assembly parts, designed to simplify installation and reduce rework.
Yes. The VX Installation Kit is specifically intended for mounting ISV installation modules inside VX enclosures, providing a ready-made mounting frame and protective components to support reliable module integration in automation cabinets.
The provided data specifies ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, which aid standardization and procurement. For formal CE, IP, or other regulatory certifications, please verify with the supplier documentation or product data sheets.
The kit streamlines ISV module mounting, reduces installation time, and minimizes site adjustments, delivering predictable interiors and safer cabling. It supports scalable VX configurations, lowers lifecycle costs through standardization, and improves overall project efficiency for maintenance and upgrades.
