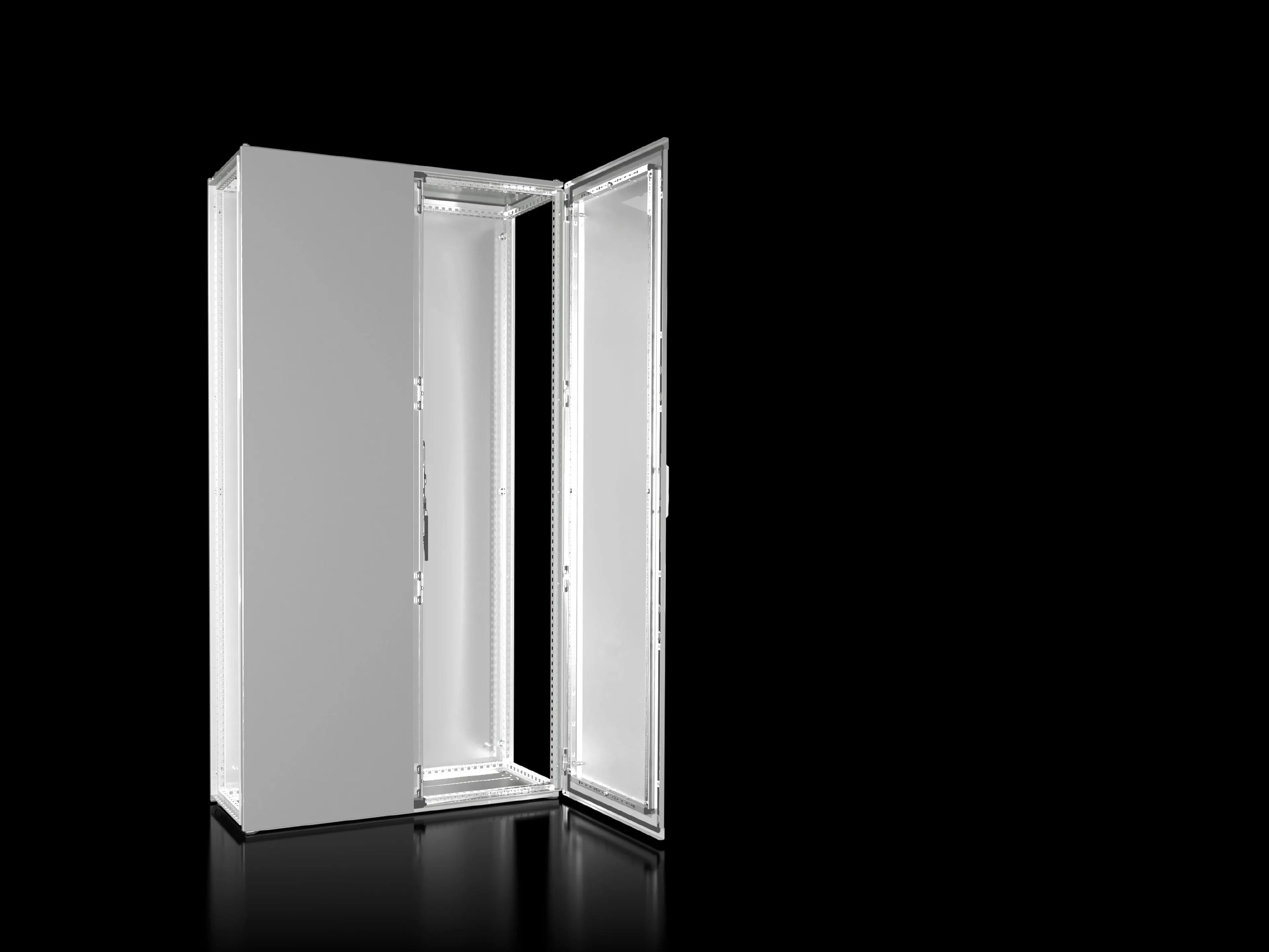

Rittal VX 9666.966 Distribution Enclosure - IP55
Part Number: 9666966
Manufacturer
Rittal
Part number
9666966
Alt Part Number
VX 9666.966
Quick Summary
Rittal VX 9666.966 distribution enclosure is a rugged cabinet solution for ISV module installations in industrial control panels. Engineers often struggle with cramped spaces, complex gland plate layouts, and slow commissioning when upgrading panel housings. This enclosure delivers IP 55 protection, NEMA 12 compliance, and IEC 61439-1/2 testing, providing reliable performance in challenging environments. With a powder-coated exterior and a configurable door hinge, it supports fast installation and predictable lifecycle costs, while ISV compatibility accelerates integration and reduces changeover time.
Product Information
Extended Description
9666966 Rittal: VX Distribution enclosure (ISV), WHdepth 1100x2000x400 mm, sheet steel, two-door
Article number
VX 9666.966
Material
Sheet steel
Surface finish
Enclosure frame: Dipcoat-primed | Door(s), roof, rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Gland plates | Rear panel | Roof plate | Lock: 3 mm double-bit
Number of doors
2
Note
For 600 mm wide distribution enclosures, please use VX basic enclosures
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Test specification
IEC 61 439-1/-2
Dimensions
Width: 1,100 mm | Height: 2,000 mm | Depth: 400 mm
Packs of
1 pc(s).
Weight/pack
146 kg
PCF per pack (cradle-to-gate)
359.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177929777
ETIM 9
EC002525
ECLASS 8.0
27142409
Product description
VX Distribution enclosure (ISV), WHdepth 1100x2000x400 mm, sheet steel, two-door
Durable sheet steel construction provides robust mechanical protection for sensitive electronics, improving long-term reliability in demanding environments and enabling stable operation of ISV modules in automation panels. The IP 55/NEMA 12 protection combination minimizes dust and moisture ingress, reducing maintenance costs and downtime in manufacturing and process environments. The VX 9666.966 ships with a complete supply set — enclosure frame, doors, gland plates, rear panel, roof plate, and a right-hinged door that can be swapped to the left — delivering faster on-site installation and flexible layout planning for larger control systems. At 1,100 mm wide, 2,000 mm high, and 400 mm deep, the enclosure accommodates substantial electrical gear while maintaining a compact footprint; weight of 146 kg per pack supports secure, vibration-resistant mounting in retrofit projects. Powder-coated exterior with zinc-plated gland plates enhances corrosion resistance in semi-aggressive environments, aligning with industrial sanitation and washdown considerations. The cradle-to-gate PCF of 359.7 kg CO2 eq (Cat B) is a transparent footprint metric that supports sustainability reporting for capital projects. The enclosure is also compatible with VX basic enclosures for 600 mm wide distribution setups, expanding modularity across plant footprints.
Get a Quick Quote for a Rittal 9666966
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9666966?
Enquire Now
FAQs
Plan for a 1,100 mm wide by 2,000 mm high footprint with 400 mm depth, ensuring stable mounting surface and clearance for ISV modules. The unit ships with a right-hand hinged door that can be swapped to the left, and includes gland plates, rear panel, and roof plate, simplifying wiring, cable entry, and panel layout during retrofit or new builds.
IP55 protects against dust ingress and water jets, while NEMA 12 guards against dust and non-corrosive liquids in indoor installations. Together they reduce the risk of ingress-related faults, support longer service intervals, and enable reliable operation in manufacturing floors, assembly lines, or process environments with wash-down or heavy dust exposure.
Yes. The enclosure is supplied with doors hinged on the right and may be swapped to the left to suit site layouts. This flexibility simplifies installation in tight spaces and aligns with existing panel designs, enabling a smoother integration with minimal rework during retrofits or new deployments.
The VX 9666.966 is IEC 61439-1/2 tested and carries IP 55 protection with a NEMA 12 rating. It also aligns with IEC 61 439-1/-2 test specifications and supports general industrial enclosure requirements, providing confidence in regulatory compliance and safe operation within standard automation environments.
The enclosure combines a dipcoat-primed frame with a powder-coated exterior and zinc-plated gland plates for corrosion resistance and durability. With a weight of 146 kg per pack, it offers stable, vibration-resistant mounting. Its rugged construction reduces maintenance frequency, extends service life for automation panels, and lowers lifecycle costs in high-demand production lines.
