Rittal 9670005 SV Fuse-switch Enclosure - IP3X
Part Number: 9670005
Manufacturer
Rittal
Part number
9670005
Category
Alt Part Number
SV 9670.005
Quick Summary
Rittal 9670005 SV fuse-switch disconnector enclosure enables safe power distribution in industrial control panels. Engineers and integrators often face long install times and retrofit costs when disconnectors don't align with enclosures. It is tested to IEC 61 439-1/-2 and offers IP protection up to IP 3X, supporting durable, compliant deployments. Designed for industrial automation and power distribution, it streamlines installation while enabling plug-and-play compatibility with ABB SlimLine and Jean Müller SASIL disconnectors.
Product Information
Extended Description

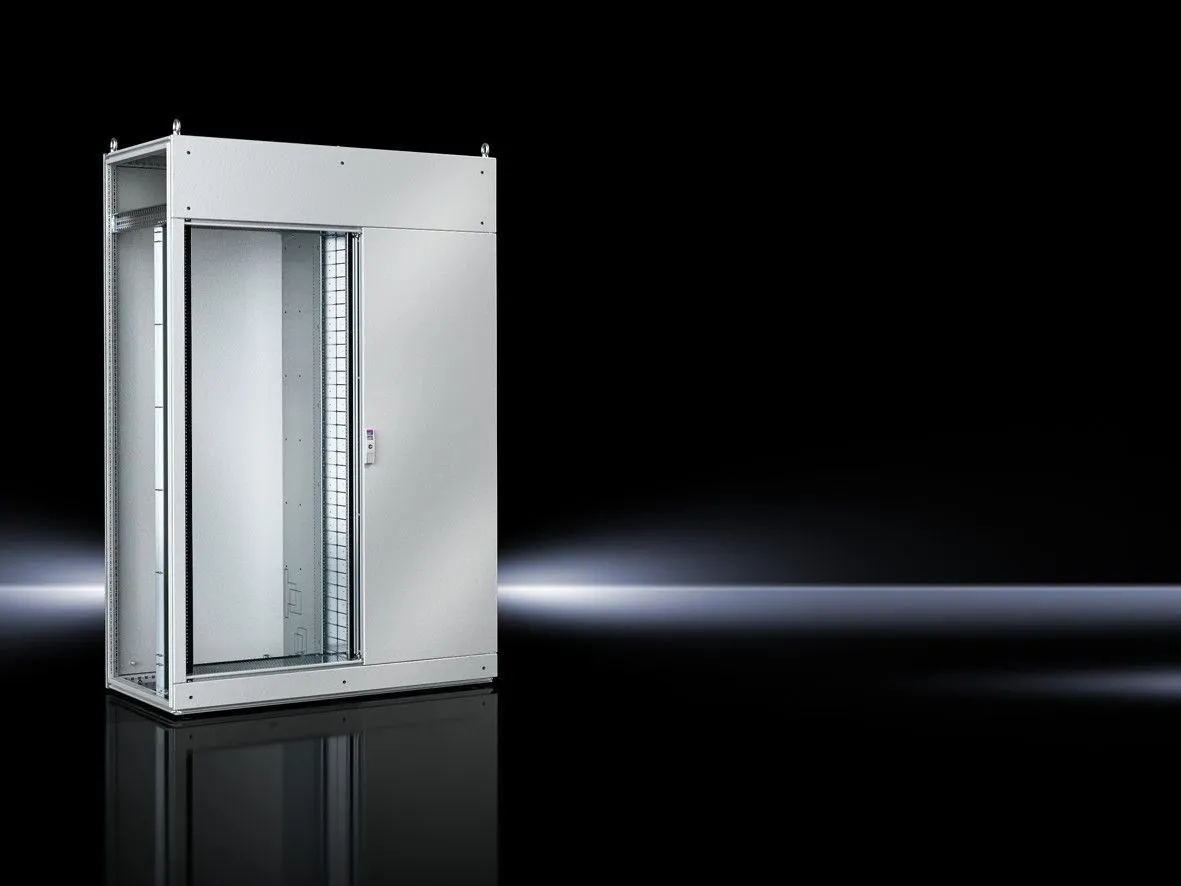

9670005 Rittal: SV Fuse-switch disconnector enclosure, WHD: 1000x2000x600 mm, sheet steel
Article number
SV 9670.005
Material
Sheet steel
Surface finish
Enclosure frame: Dipcoat-primed | Door(s), roof, rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame with r/h door hinge, left side open | Roof | Rear panel | Three-piece gland plates | Lock: 3 mm double-bit | 4 eyebolts | Locating frame for disconnectors with fuses (brands ABB SlimLine/Jean Müller SASIL)
Test specification
IEC 61 439-1/-2
IP protection category to IEC 60 529
Up to IP 3X, depending on the panels
Dimensions
Width: 1,000 mm | Height: 2,000 mm | Depth: 600 mm
Packs of
1 pc(s).
EAN
4028177814547
ETIM 9
EC002525
ECLASS 8.0
27180101
Product description
SV Fuse-switch disconnector enclosure, WHD: 1000x2000x600 mm, sheet steel
WHD 1000x2000x600 mm sheet-steel enclosure provides a robust foundation for transformer and switchgear integration, reducing mechanical flex and vibration in busy control rooms. The durable surface finish—dipcoat-primed frame with powder-coated exterior and zinc-plated gland plates—delivers long-term corrosion resistance, lowering maintenance costs and downtime. Supplying includes an enclosure frame with right-hand door hinge, roof, rear panel, three-piece gland plates, a 3 mm double-bit lock, four eyebolts, and a locating frame for disconnectors with fuses (ABB SlimLine/Jean Müller SASIL), enabling rapid, plug-and-play assembly and scalable configurations. IP protection up to IP 3X ensures reliable performance in industrial environments, while IEC 61 439-1/-2 testing confirms compliance and safety. Compatibility with ABB SlimLine and Jean Müller SASIL disconnectors simplifies procurement and reduces field modifications, accelerating project timelines. For OEMs and integrators, the combination of frame rigidity, clear gland routing, and standardized dimensions supports faster commissioning and predictable maintenance cycles across multiple installations.
Get a Quick Quote for a Rittal 9670005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9670005?
Enquire Now
FAQs
The enclosure ships with a locating frame for ABB SlimLine and Jean Müller SASIL disconnectors, enabling plug-and-play mounting in TS 8 baying systems. It provides an enclosure frame with door hinge, roof, rear panel, three-piece gland plates, and a lock, simplifying installation and future scalability.
Dimensions are Width 1,000 mm, Height 2,000 mm, Depth 600 mm (WHD 1000x2000x600). The body is sheet steel finished with a dipcoat primer and powder coating; color is RAL 7035, with zinc-plated gland plates for corrosion resistance; IP protection up to IP 3X.
It is tested to IEC 61 439-1/-2 and offers IP protection up to IP 3X, ensuring compliance with common industrial safety and performance requirements. The enclosure is designed to accommodate fuse-switch disconnectors to support robust control gear assemblies.
Supply includes the enclosure frame with right-hand door hinge (left side open), roof, rear panel, three-piece gland plates, a 3 mm double-bit lock, four eyebolts, and a locating frame for disconnectors with fuses (ABB SlimLine/Jean Müller SASIL). This reduces field fabrication and accelerates installation.
Ideal for industrial automation and power distribution panels, the enclosure supports baying with fused disconnectors, provides plug-and-play compatibility with key brands, and offers durable surface protection. The result is faster commissioning, lower lifecycle costs, and improved uptime in manufacturing and infrastructure projects.
