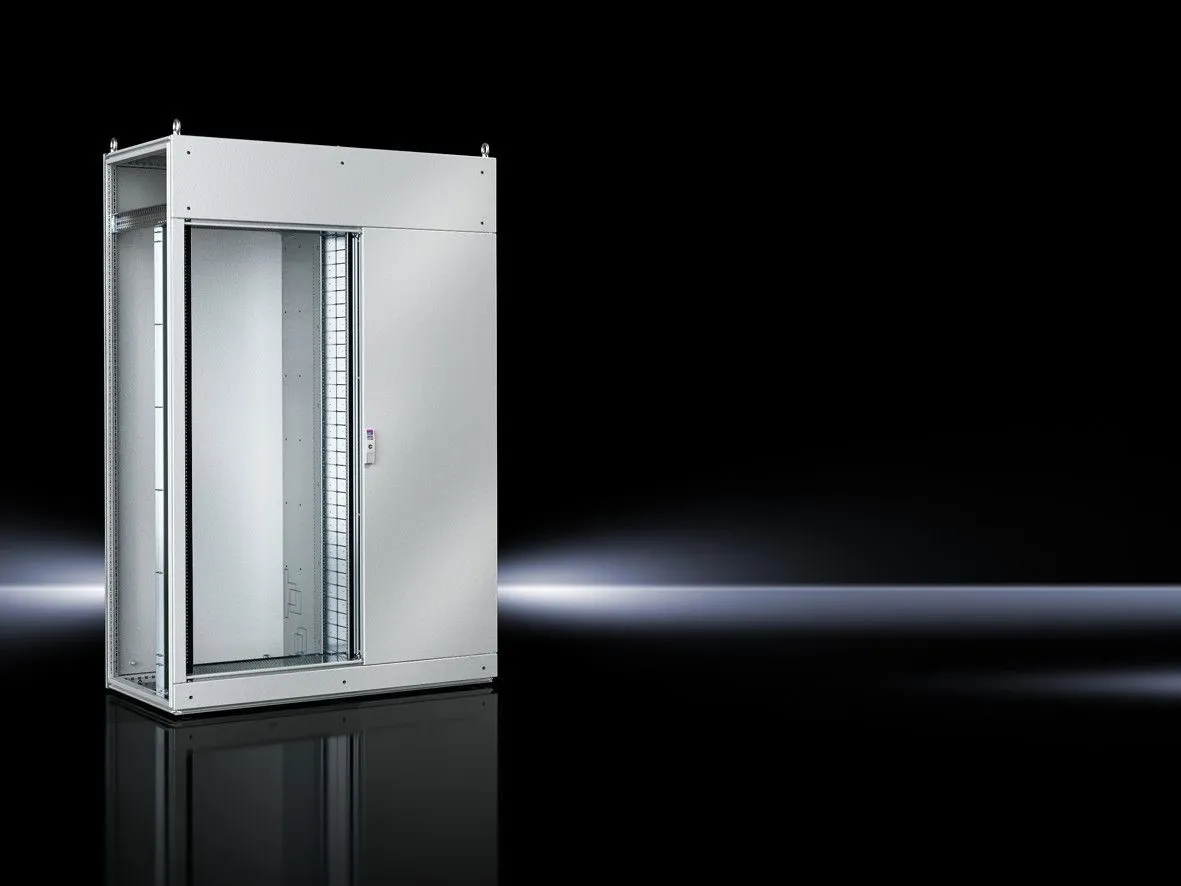

Rittal 9670025 Fuse-switch Disconnector Enclosure - IP3X
Part Number: 9670025
Manufacturer
Rittal
Part number
9670025
Category
Alt Part Number
SV 9670.025
Quick Summary
Rittal SV 9670.025 fuse-switch disconnector enclosure delivers rugged, ready-to-install power distribution housing for TS 8 baying systems. That complexity often delays deployment and increases risk. This enclosure is IEC 61439-1/2 tested, IP protection up to IP3X, and features a durable powder-coated exterior with zinc-plated gland plates. With sheet steel construction in RAL 7035 and full compatibility with ABB SlimLine or Jean Müller SASIL disconnectors, you gain reliable performance and straightforward installation. In practice, this combination reduces commissioning time, enhances safety, and supports scalable, standardized power distribution across industrial automation projects.
Product Information
Extended Description
9670025 Rittal: SV Fuse-switch disconnector enclosure, WHD: 1000x2200x600 mm, sheet steel
Article number
SV 9670.025
Material
Sheet steel
Surface finish
Enclosure frame: Dipcoat-primed | Door(s), roof, rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame with r/h door hinge, left side open | Roof | Rear panel | Three-piece gland plates | Lock: 3 mm double-bit | 4 eyebolts | Locating frame for disconnectors with fuses (brands ABB SlimLine/Jean Müller SASIL)
Test specification
IEC 61 439-1/-2
IP protection category to IEC 60 529
Up to IP 3X, depending on the panels
Dimensions
Width: 1,000 mm | Height: 2,200 mm | Depth: 600 mm
Packs of
1 pc(s).
EAN
4028177814554
ETIM 9
EC002525
ECLASS 8.0
27180101
Product description
SV Fuse-switch disconnector enclosure, WHD: 1000x2200x600 mm, sheet steel
Feature: The SV 9670.025 enclosure offers a WHD of 1000x2200x600 mm with a three-piece gland plate system. Business Impact: It provides a precise, plug-and-play footprint that minimizes field modifications and speeds up deployment. Application: Ideal for TS 8 baying systems in panel assemblies with ABB SlimLine or Jean Müller SASIL disconnectors. Feature: The enclosure uses sheet steel with a dipcoat-primed frame and powder-coated exterior, plus zinc-plated gland plates. Business Impact: Delivers corrosion resistance and long service life in harsh industrial environments. Application: Suitable for data centers, process lines, and rugged manufacturing floors. Feature: IP protection up to IP3X and IEC 61439-1/2 testing. Business Impact: Reduces environmental risk and ensures safety and regulatory compliance. Application: Essential for dusty or variable humidity areas. Feature: Supplied with enclosure frame (R/H hinge), roof, rear panel, gland plates, lock, eyebolts, and locating frame for disconnectors. Business Impact: Accelerates installation and ensures compatibility with ABB SlimLine/Jean Müller SASIL disconnectors. Application: Simplifies integration in medium-to-large switchgear installations. Feature: Enclosure finish in RAL 7035. Business Impact: Visual consistency across plants reduces misidentification and simplifies maintenance. Application: Global deployments with standardized cabinet color coding.
Get a Quick Quote for a Rittal 9670025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9670025?
Enquire Now
FAQs
The SV 9670.025 is designed for TS 8 baying configurations with a WHD of 1000x2200x600 mm. It includes an enclosure frame with right-hand door hinge, roof, rear panel, three-piece gland plates, lock, eyebolts, and a locating frame for disconnectors. For seamless integration, ensure compatibility with ABB SlimLine or Jean Müller SASIL disconnectors and align mounting with the provided gland plates and mounting points to minimize field modifications and commissioning time.
Key specifications include a sheet steel enclosure, dipcoat-primed frame, powder-coated exterior (outside), and zinc-plated gland plates with RAL 7035 color. Dimensions are 1000 mm wide, 2200 mm high, and 600 mm deep. The enclosure is tested to IEC 61439-1/2 standards and offers IP protection up to IP3X, supporting safe, compliant power distribution in harsh environments.
Yes. The enclosure is designed with a locating frame for disconnectors that supports ABB SlimLine and Jean Müller SASIL variants. This compatibility simplifies integration, reduces the need for custom adapters, and speeds up assembly within TS 8 baying systems while maintaining regulatory compliance and reliable operation.
Included components are the enclosure frame with right-hand hinge, roof, rear panel, three-piece gland plates, a 3 mm double-bit lock, four eyebolts, and a locating frame for disconnectors. To complete a full installation, you may need compatible disconnectors (ABB SlimLine or Jean Müller SASIL) and any site-specific gaskets or seals depending on environmental conditions.
The SV 9670.025 uses sheet steel with a dipcoat-primed frame and powder-coated exterior, plus zinc-plated gland plates for durability. It achieves IP protection up to IP3X and adheres to IEC 61439-1/2 testing, improving safety, reducing maintenance intervals, and ensuring consistent performance in dusty or variable humidity environments typical of manufacturing and data-center infrastructures.
