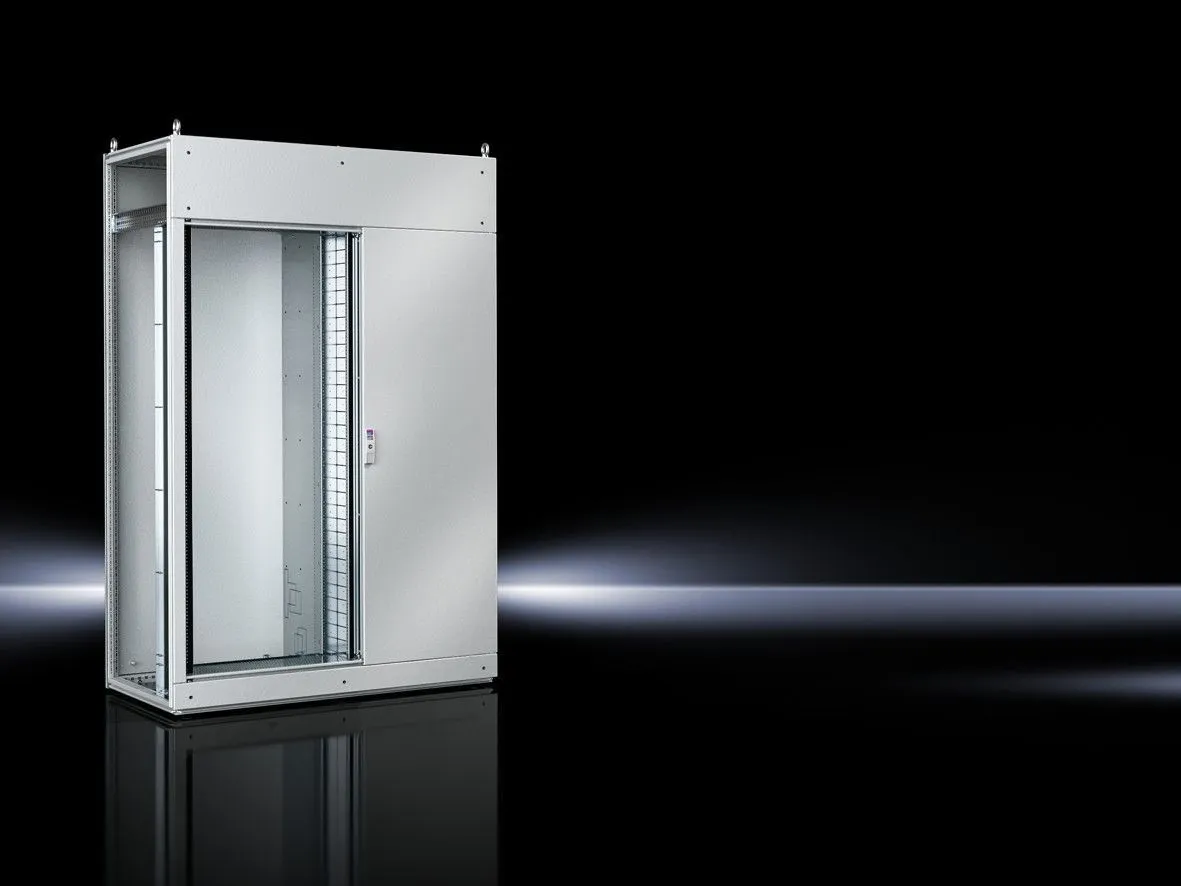

Rittal SV 9670.127 Fuse-switch Disconnector Enclosure - IP3X
Part Number: 9670127
Manufacturer
Rittal
Part number
9670127
Category
Alt Part Number
SV 9670.127
Quick Summary
SV 9670.127 fuse-switch disconnector enclosure provides robust power distribution for industrial control panels. Engineers face limited enclosure space, complex wiring, and the need for safe, reliable disconnection during maintenance in high-density switchgear. This design is tested to IEC 61 439-1/-2 and offers IP protection up to IP 3X, reinforcing safety and regulatory alignment in harsh environments. Built with a dip-coated frame and powder-coated exterior, it delivers long service life while minimizing downtime. The enclosure supports ABB SlimLine or Jean Müller SASIL disconnectors and gland plate configurations, delivering installation efficiency and scalable busbar integration for modern automation projects.
Product Information
Extended Description
9670127 Rittal: SV Fuse-switch disconnector enclosure, WHD: 1200x2200x800 mm, sheet steel
Article number
SV 9670.127
Material
Sheet steel
Surface finish
Enclosure frame: Dipcoat-primed | Door(s), roof, rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame with r/h door hinge, left side open | Roof | Rear panel | Three-piece gland plates | Lock: 3 mm double-bit | 4 eyebolts | Locating frame for disconnectors with fuses (brands ABB SlimLine/Jean Müller SASIL)
Test specification
IEC 61 439-1/-2
IP protection category to IEC 60 529
Up to IP 3X, depending on the panels
Dimensions
Width: 1,200 mm | Height: 2,200 mm | Depth: 800 mm
Packs of
1 pc(s).
EAN
4028177814578
ETIM 9
EC002525
ECLASS 8.0
27180101
Product description
SV Fuse-switch disconnector enclosure, WHD: 1200x2200x800 mm, sheet steel
Feature → Business Impact → Application: The sheet steel enclosure with dipcoat-primed frame and textured outer coating provides rugged protection against corrosion and impact, reducing maintenance cycles and total cost of ownership in control cabinets used in harsh industrial environments. This translates to higher uptime for production lines and lower lifecycle costs in power distribution bays for automated systems. Feature → Business Impact → Application: A 1,200 mm by 2,200 mm by 800 mm WHD footprint accommodates large fuse-switch disconnector assemblies, enabling compact, modular layouts in switchgear rooms and data-driven factories. This supports faster panel assembly and scalable integration in TS 8 baying configurations for critical processes. Feature → Business Impact → Application: Gland plates (three-piece) and locating frame for disconnectors (ABB SlimLine/Jean Müller SASIL) streamline wiring and alignment, reducing installation time and risk of misconnection in industrial power management applications. Feature → Business Impact → Application: Enclosure includes door hinge on the right/left, roof and rear panel, improving service access and ergonomic maintenance in high-density electrical cabinets. Feature → Business Impact → Application: IP protection up to 3X and IEC 61 439-1/-2 testing provide regulatory assurance, supporting compliance in European and global panels and minimizing audit findings for electrical enclosures in manufacturing plants.
Get a Quick Quote for a Rittal 9670127
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9670127?
Enquire Now
FAQs
Yes. The SV 9670.127 includes a locating frame designed for disconnectors with fuses from ABB SlimLine and Jean Müller SASIL, ensuring precise alignment and straightforward mounting. The enclosure frame, left door hinge option, and gland plate arrangement simplify integration into existing switchgear layouts and reduce field modification time. This compatibility supports rapid project delivery and minimizes risk during panel assembly.
The enclosure measures 1200 mm wide, 2200 mm high, and 800 mm deep, providing ample space for large fuse-switch assemblies. It offers protection up to IP 3X, depending on the final gland plates and panel configuration, which helps guard against ingress in typical industrial environments. The sheet steel construction with dipcoat-primed and powder-coated exterior ensures durability under harsh conditions.
SV 9670.127 is specified with IEC 61 439-1/-2 testing and supports IP protection up to 3X, aligning with common European cabinet safety expectations. This combination provides regulatory confidence for electrical enclosures used in automated manufacturing and power distribution. While CE labeling is typical in many regions, the documented test standard and IP rating are the primary compliance indicators specified for this product.
This enclosure is ideal for baying systems TS 8 in power distribution, housing fused fuse-switch disconnectors for centralized control in automation panels. Its large footprint accommodates multiple disconnect devices, enabling scalable, modular switchgear layouts in manufacturing lines, water treatment plants, and process automation environments where safe, reliable disconnection and organized cabling are essential.
Key advantages include a pre-configured locating frame for disconnectors with fuses, three-piece gland plates, and a robust frame with right/left hinge options for easy door access. The textured powder-coated exterior resists corrosion, reducing repaint cycles, while the enclosed wiring and gland layout streamline fabrication and maintenance. Together, these features shorten installation time, reduce labor costs, and extend service intervals for lower total cost of ownership.
