Rittal SV 9671.536 Roof Plate Adapter for TS Enclosures - EC002525
Part Number: 9671536
Quick Summary

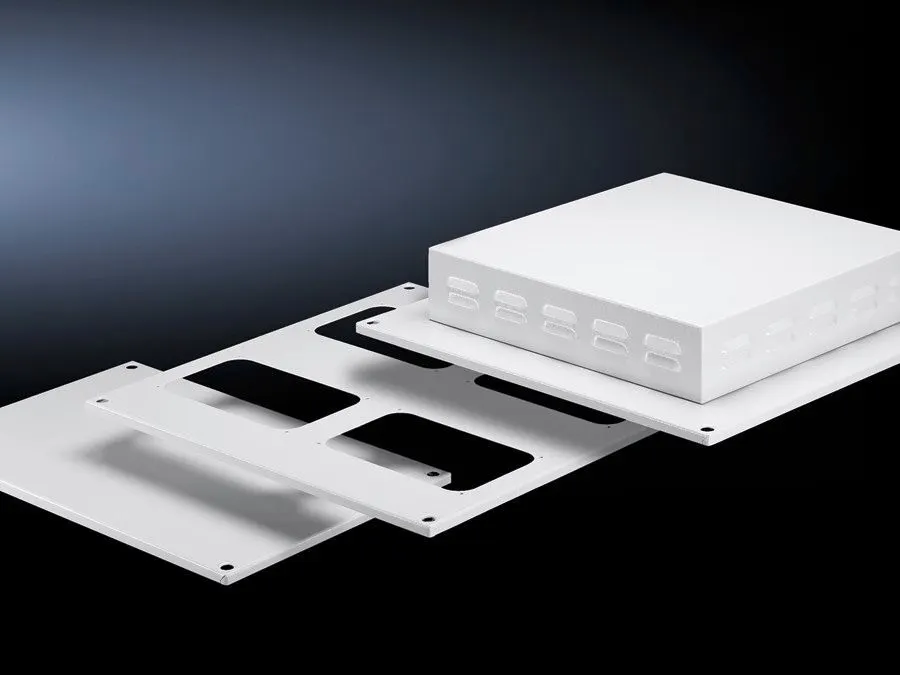

Rittal SV 9671.536 is a roof plate adapter that enables retrofitting TS enclosures. This solution helps avoid installing a full roof where one is missing, reducing downtime and part clutter. It aligns with ETIM EC002525 and ECLASS 27182405 for reliable data exchange and procurement. Featuring 1.5 mm sheet steel, textured paint in RAL 7035, and a 2-gland entry layout, it delivers robust business value. Designed to fit TS enclosures with a 300 mm width and 600 mm depth, it maintains enclosure integrity. One-pack packaging and straightforward installation help procurement teams streamline ordering and avoid project delays. The textured paint and 1.5 mm sheet steel offer durable protection in demanding industrial environments. A two-gland layout supports typical control panel cabling while maintaining seal integrity. Compatible with standard TS roofs from other enclosures, it enables cost-effective retrofits without replacing the entire enclosure.
Product Information
Article number
SV 9671.536
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Number of required cable entry glands
2
To fit
Enclosure type:Â TS | Width:Â = 300 mm | Depth:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
2.25 kg
Customs tariff number
73269098
EAN
4028177544291
ETIM 9
EC002525
ECLASS 8.0
27182405
Material and finish: Sheet steel construction at 1.5 mm with a textured paint finish. This robust build provides resistance to mechanical wear and corrosion, extending service life in plant environments. Ideal for TS enclosures that require a durable roof plate adapter without compromising aesthetics. Fit and dimensions: Designed to fit TS enclosures with 300 mm width and 600 mm depth, and features two cable entry glands. Precise fit reduces misalignment and simplifies routing, cutting installation time. Suitable for standard TS configurations and retrofit projects. Retrofit compatibility: Replaces missing roof or integrates with standard roofs from other TS enclosures. Enables cost-effective replacements and minimizes downtime during upgrades. Useful for projects upgrading legacy TS systems. Packaging and handling: Packs of 1 piece, weight 2.25 kg per pack. Eases handling, shipping, and on-site logistics. Streamlines procurement and reduces freight costs. Data and standards: ETIM 9 EC002525 and ECLASS 8.0 27182405 ensure consistent data and procurement. Improves BOM accuracy and supplier integration.
Get a Quick Quote for a Rittal 9671536
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9671536?
Enquire Now
FAQs
To install SV 9671.536 on a TS enclosure, verify that the enclosure is Type TS and matches the 300 mm by 600 mm footprint. Align the roof plate adapter with the existing mounting pattern, insert fasteners appropriate for sheet steel, and secure the unit to maintain seal integrity around the two cable entry glands. Ensure gasket seating and cable routing align with your internal wiring plan.
Core specifications include 1.5 mm sheet steel construction, textured paint finish, and a RAL 7035 color. The unit is designed for TS enclosures with a 300 mm width and 600 mm depth, carries two cable entry glands, and is sold in packs of one with a weight of 2.25 kg per pack. GTIN and EAN are 4028177544291.
Yes. SV 9671.536 is specifically designed for enclosures without a roof plate and to exchange for the standard roof in other TS variants. It preserves enclosure integrity, maintains seal performance, and provides a consistent look across installations. This makes retrofitting faster and reduces the need for complete enclosure replacement in typical plant environments.
SV 9671.536 is covered by ETIM 9 EC002525 and ECLASS 8.0 27182405, ensuring consistent product data and interoperability with procurement systems. The GTIN/EAN is 4028177544291. These classifications support accurate BOM creation, cataloging, and supplier data exchange across ERP and purchasing workflows.
Using this roof plate adapter minimizes downtime during roof retrofits, reduces part proliferation, and simplifies stocking with a single 1-pack SKU. The durable 1.5 mm steel construction and textured finish extend service life in harsh environments, while TS roof compatibility supports scalable upgrades across multiple enclosures, delivering measurable uptime and cost savings.
