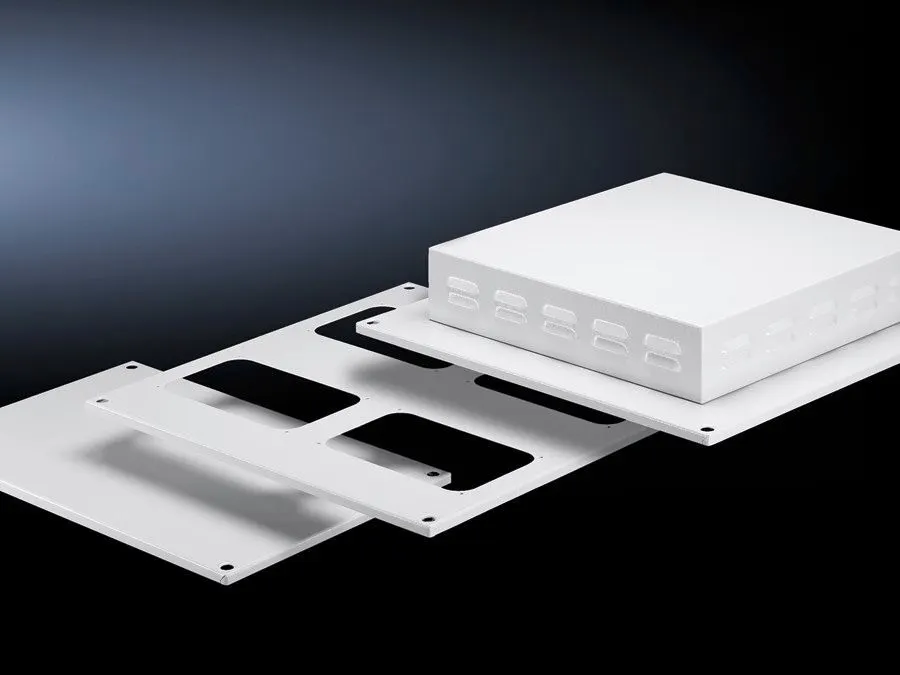

Rittal 9671548 SV Roof Plate - TS 400x800 mm 1.5 mm Steel
Part Number: 9671548
Quick Summary
SV Roof Plate by Rittal provides a robust roof option for TS enclosures, enabling secure cable entry gland integration. When upgrading or exchanging roofs, engineers often face misalignment, gasket gaps, and downtime that disrupt productivity. This part supports ETIM 9 EC002525 and ECLASS 8.0 27182405, ensuring consistent procurement data and cataloging across projects. With a textured finish in RAL 7035 and 1.5 mm sheet steel, it delivers durable protection and a uniform appearance suitable for harsh industrial environments. Designed to fit TS dimensions exactly, it streamlines installation and maintenance, delivering tangible value for panel builders and automation projects that require reliable retrofits and quick commissioning. This solution also helps standardize enclosure tops across multiple sites, supporting better asset management and serviceability.
Product Information
Extended Description
9671548 Rittal: SV Roof plate, WD: 400x800 mm, for TS, for cable entry gland
Article number
SV 9671.548
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Number of required cable entry glands
4
To fit
Enclosure type: TS | Width: = 400 mm | Depth: = 800 mm
Packs of
1 pc(s).
Weight/pack
3.2 kg
Customs tariff number
73269098
EAN
4028177573574
ETIM 9
EC002525
ECLASS 8.0
27182405
Product description
SV Roof plate, WD: 400x800 mm, for TS, for cable entry gland
Material and finish: The SV Roof Plate employs 1.5 mm sheet steel with a textured paint finish in RAL 7035, delivering strong impact resistance and corrosion protection. This reduces maintenance cycles and keeps enclosures looking consistent in harsh environments. The business impact is lower lifecycle cost and improved site aesthetics, with applications ideal for TS enclosures in automotive, food & beverage, and machinery manufacturing settings. Size and exact fit: With a WD of 400x800 mm, the plate matches TS enclosures precisely, minimizing field modifications and gasket misalignment. The result is faster installations and fewer post-install fixes, benefiting project timelines and quality assurance. Cable glands and layout: The design supports four cable entry glands, enabling a tidy, repeatable wiring scheme that improves EMC performance and simplifies commissioning. This helps electrical teams deliver reliable control cabinet wiring in low- to high-volume deployments. Pack and handling: Each pack contains a single unit and weighs 3.2 kg, aiding straightforward handling, shipping, and inventory planning. This reduces logistics complexity for distributors and end users while supporting lean procurement. Retrofit-ready compatibility: The roof plate is intended for exchange with the standard TS roof, enabling retrofits without a full enclosure replacement. This minimizes downtime, extends asset lifecycles, and delivers faster ROI for plant modernization projects.
Get a Quick Quote for a Rittal 9671548
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9671548?
Enquire Now
FAQs
Yes. The SV Roof Plate with model 9671.548 is specifically designed for TS enclosures with a width of 400 mm and a depth of 800 mm. It is intended as a roof replacement or exchange for the standard TS roof and includes space for four cable entry glands, simplifying retrofits and minimizing installation downtime.
The roof plate uses 1.5 mm sheet steel with a textured paint finish in RAL 7035. This combination provides robust mechanical protection and corrosion resistance, while maintaining a clean, consistent appearance across installations. The durable finish reduces maintenance needs and aligns with standard Rittal enclosure aesthetics for industrial environments.
Four cable entry glands are specified for the SV Roof Plate SV 9671.548. This fixed gland count supports a predictable wiring scheme and reduces the need for additional gland kits. With glands positioned to optimize routing, EMI control is improved and commissioning time is shortened, especially in high-mix manufacturing environments.
Yes, the roof plate is designed to be exchanged for the standard roof in TS enclosures, enabling retrofit without a full enclosure replacement. Ensure alignment with mounting points and gasket interfaces. The 400x800 mm TS fitment and 1.5 mm steel structure provide a reliable upgrade path for upgrades and asset life extension.
Packaging is 1 piece per pack, weighing 3.2 kg per pack. This compact, easy-to-handle packaging simplifies logistics, stocking, and project planning for procurement teams, reducing the risk of over-ordering and improving inventory accuracy in job sites and distribution centers.
