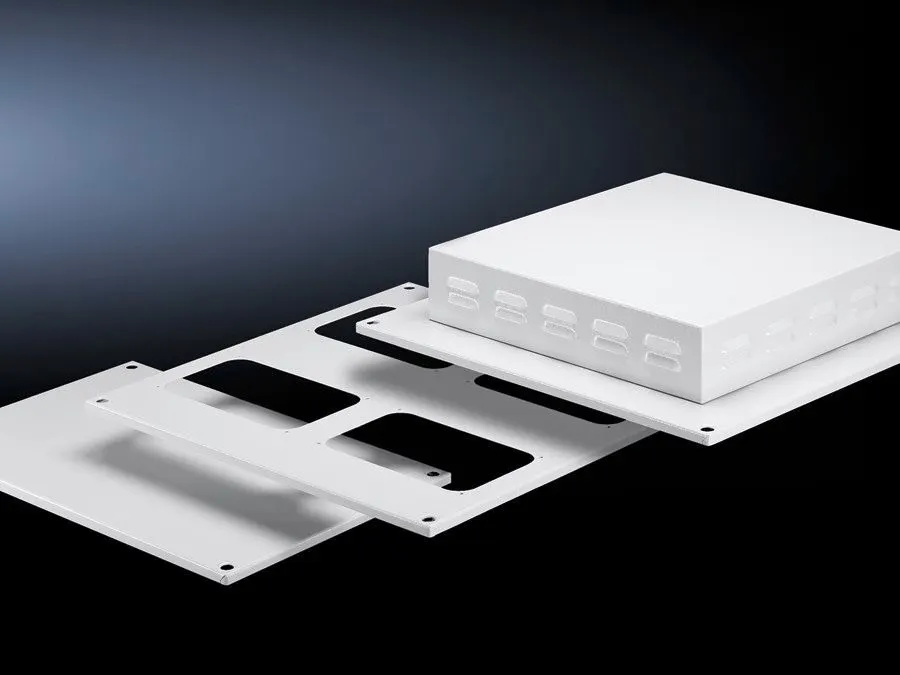

Rittal 9671586 SV Roof plate - Textured paint (RAL 7035)
Part Number: 9671586
Quick Summary
SV Roof plate for TS enclosures provides a sturdy roof option with cable entry gland support. If the enclosure roof is missing, retrofitting can cause project delays and introduce wiring errors. This accessory aligns with ETIM 9 EC002525 and ECLASS 8.0 27182405, while utilizing 1.5 mm sheet steel and a textured paint finish for durability. It is designed for TS enclosures at 800x600 mm, accommodating eight cable entry glands and preserving enclosure integrity during upgrades. The textured finish in RAL 7035 supports consistent aesthetics across panels and simplifies maintenance, delivering a cost-effective upgrade path for panel builders and integrators.
Product Information
Extended Description
9671586 Rittal: SV Roof plate, WD: 800x600 mm, for TS, for cable entry gland
Article number
SV 9671.586
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Number of required cable entry glands
8
To fit
Enclosure type: TS | Width: = 800 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
4 kg
Customs tariff number
73269098
EAN
4028177573598
ETIM 9
EC002525
ECLASS 8.0
27182405
Product description
SV Roof plate, WD: 800x600 mm, for TS, for cable entry gland
Feature: TS compatibility for 800x600 enclosures ensures plug-and-play retrofit without field modifications. Business Impact: reduces installation time and minimizes risk of misalignment, lowering project cost. Application: suitable for TS type enclosures in new builds or retrofits where a roof is replaced. Feature: 1.5 mm sheet steel with textured paint in RAL 7035 delivers robust corrosion resistance and a low-maintenance exterior. Business Impact: extends service life in harsh industrial environments and reduces repainting costs. Application: ideal for factory floors and outdoor enclosures with frequent washdowns. Feature: Eight cable entry glands capacity streamlines cable management and sealing. Business Impact: speeds wiring, enhances EMC integrity, and reduces labor time. Application: supports organized, compliant cabling of control panels. Feature: Single 1 pc pack at 4 kg facilitates easy handling and on-site logistics. Business Impact: lowers forklift and manpower requirements during installation. Application: efficient for multi-site deployments. Feature: Designed to exchange missing roof plates without altering the standard TS roof, enabling cost-effective retrofits. Business Impact: minimizes downtime, preserves IP and environmental sealing expectations. Application: retrofit projects where roof plates are absent or need replacement.
Get a Quick Quote for a Rittal 9671586
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9671586?
Enquire Now
FAQs
The SV Roof plate is designed specifically for TS enclosures at 800x600 mm, ensuring direct compatibility with standard TS roofs or with enclosures missing a roof plate. It accepts eight cable entry glands and maintains the enclosure’s structural integrity without modifying existing mounting points or dimensions.
Begin by confirming the enclosure type is TS and the dimensions are 800x600 mm. Remove any existing roof components if required, align the SV 9671.586 plate to the mounting plane, secure with the appropriate fasteners, and connect/gland cables through the eight entry points. Finally, verify sealing and finish for a consistent appearance in RAL 7035.
The roof plate is manufactured from sheet steel with a thickness of 1.5 mm and finished in a textured paint. The color specified is RAL 7035, providing a durable, easy-to-clean exterior suitable for industrial environments and simplifying maintenance over the product lifecycle.
Yes. It aligns with ETIM 9 EC002525 and ECLASS 8.0 27182405, supporting compatibility with common procurement taxonomies and ensuring consistent data across systems, which helps with specification accuracy and sourcing reliability.
Installing the SV Roof plate reduces retrofit downtime, simplifies cabling with eight gland entries, and preserves enclosure integrity. The 4 kg single-pack design eases on-site handling, while the textured finish and color provide durable aesthetics, contributing to lower labor costs and faster project completion.
