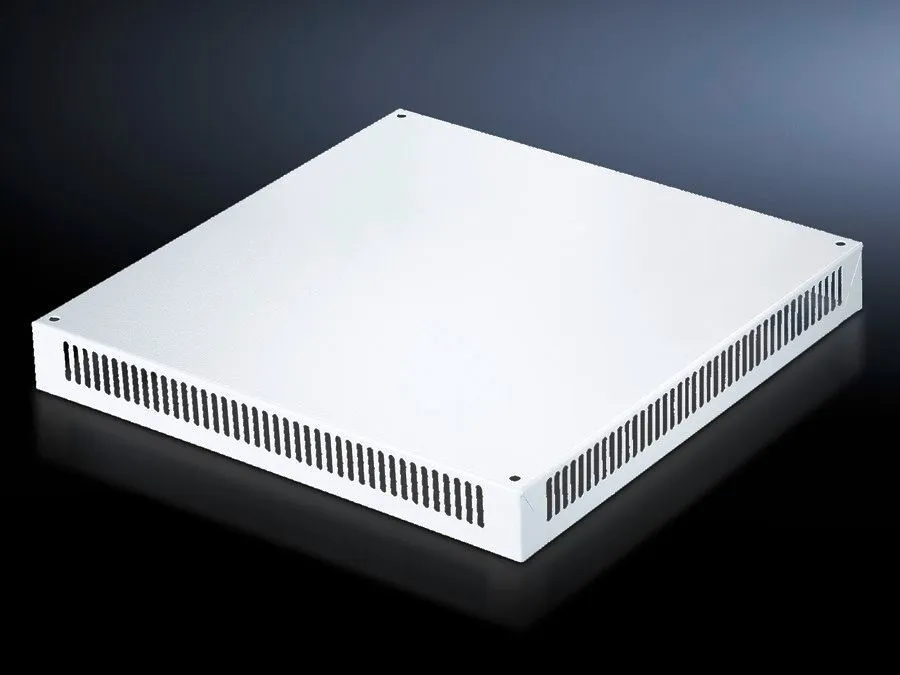

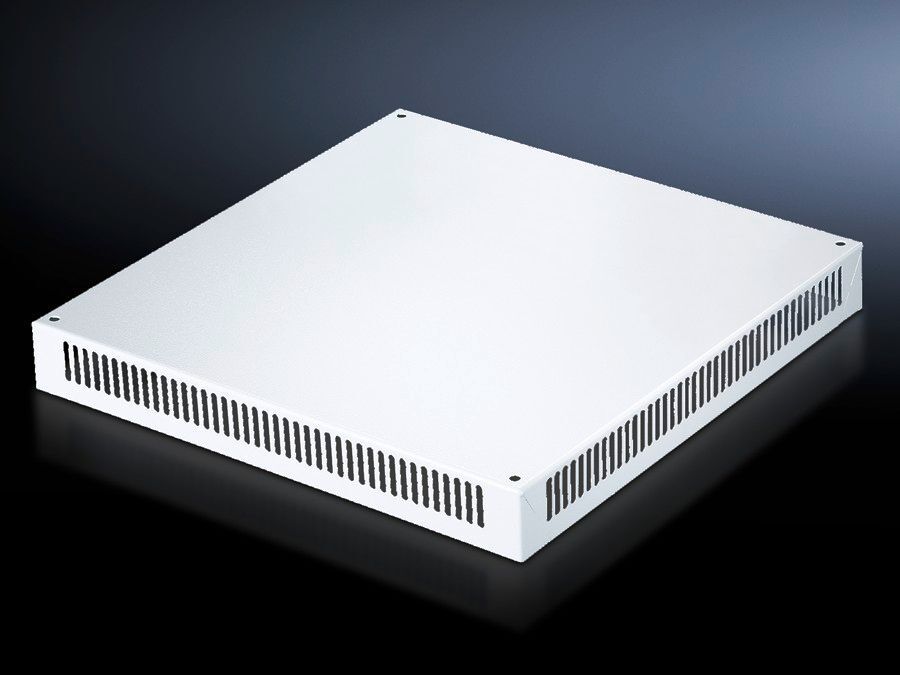

Rittal 9671848 SV Roof Plate for TS - Ventilation Hole
Part Number: 9671848
Quick Summary
SV Roof plate for TS enclosures provides a vented roof option to replace standard roofs. Retrofits often cause downtime when enclosure roofs are upgraded or swapped; this part simplifies the change and reduces install time. Note: Certifications such as CE or IP ratings are not listed in this dataset; verify applicable compliance requirements with your procurement or compliance team. It features sheet steel, 1.5 mm thick, with a textured paint finish in RAL 7035 to maintain enclosure appearance and long-term corrosion resistance. Build-up height is 72 mm, and it fits enclosures with a width of 400 mm and depth of 800 mm, making it a straightforward retrofit for TS systems. This solution supports efficient, compliant retrofits and ensures consistent enclosure integrity.
Product Information
Extended Description
9671848 Rittal: SV Roof plate, WD: 400x800 mm, for TS, H: 72 mm, with ventilation hole
Article number
SV 9671.848
Applications
For enclosures without roof plate and in exchange for the standard roof in other TS enclosures.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Build-up height
72 mm
To fit
Width:Â = 400 mm | Depth:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
2.9 kg
Customs tariff number
73269098
EAN
4028177665422
ETIM 9
EC002525
ECLASS 8.0
27182405
Product description
SV Roof plate, WD: 400x800 mm, for TS, H: 72 mm, with ventilation hole
Feature: SV Roof plate uses sheet steel with a 1.5 mm thickness and textured paint in RAL 7035. Business Impact: Delivers durable enclosure coverage that resists corrosion while preserving aesthetics, reducing maintenance costs over the life cycle. Application: Ideal for TS enclosures missing a roof plate or upgrading to a ventilated roof in new installations. Feature: Build-up height of 72 mm and footprint 400x800 mm ensure a precise, trouble-free fit. Business Impact: Minimizes retrofit risk and downtime by matching standard TS dimensions, improving project predictability. Application: Works seamlessly where enclosure height and width/depth need strict conformity. Feature: Supplied with assembly parts and a per-pack weight of 2.9 kg. Business Impact: Simplifies on-site assembly and handling, lowering labor time and logistics costs. Application: Suitable for single-unit replacements or batch retrofits across multiple TS enclosures. Feature: Colour and finish in textured paint, RAL 7035. Business Impact: Maintains consistent enclosure aesthetics and protection against environmental exposure, reducing repaint cycles. Application: Beneficial where enclosure appearance and long-term protection matter in harsh industrial environments. Feature: Exchange-ready for enclosures without roof plates or as a direct substitute for standard TS roofs. Business Impact: Supports rapid retrofits and standardization across misaligned roof configurations, lowering commissioning risk. Application: Widely applicable in retrofit projects and new builds that require a vented roof solution.
Get a Quick Quote for a Rittal 9671848
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9671848?
Enquire Now
FAQs
To install SV 9671.848, begin by verifying enclosure dimensions (400x800 mm) and ensuring the TS frame can accept a 72 mm build-up. Align the roof plate with the enclosure top, insert supplied assembly parts, and secure per the included hardware. Ensure the ventilation hole is unobstructed and confirm the finish matches the enclosure in texture and color (RAL 7035). This retrofit supports straightforward integration with existing TS roofs or replacements where a roof plate is missing.
Key specifications include a 400x800 mm footprint, 72 mm build-up height, and 1.5 mm thick sheet steel with textured paint in RAL 7035. Each pack weighs 2.9 kg and includes assembly parts. The product is designed for TS enclosures, replacing a standard roof where needed and providing a vented roof solution that maintains enclosure integrity.
Yes. The SV Roof plate is specifically described for enclosures without a roof plate or where a roof needs to be exchanged for a TS-compatible roof plate. Its 400x800 mm footprint and 72 mm build-up ensure a compatible, straightforward retrofit that preserves enclosure geometry and mounting profiles while adding a ventilation hole for thermal management.
The provided data does not list CE, IP, or other formal certifications. For regions where regulatory compliance matters, verify applicable CE markings or IP ratings with your compliance team or Rittal representative before procurement or installation to ensure alignment with local standards and application requirements.
Using the SV Roof plate offers faster retrofit turnaround, improved thermal management due to the vented design, and sustained enclosure aesthetics with a durable 1.5 mm sheet steel body. By simplifying retrofits and avoiding full roof replacements, it reduces downtime, labor costs, and repaint cycles, delivering measurable ROI in project timelines and long-term maintenance savings.
