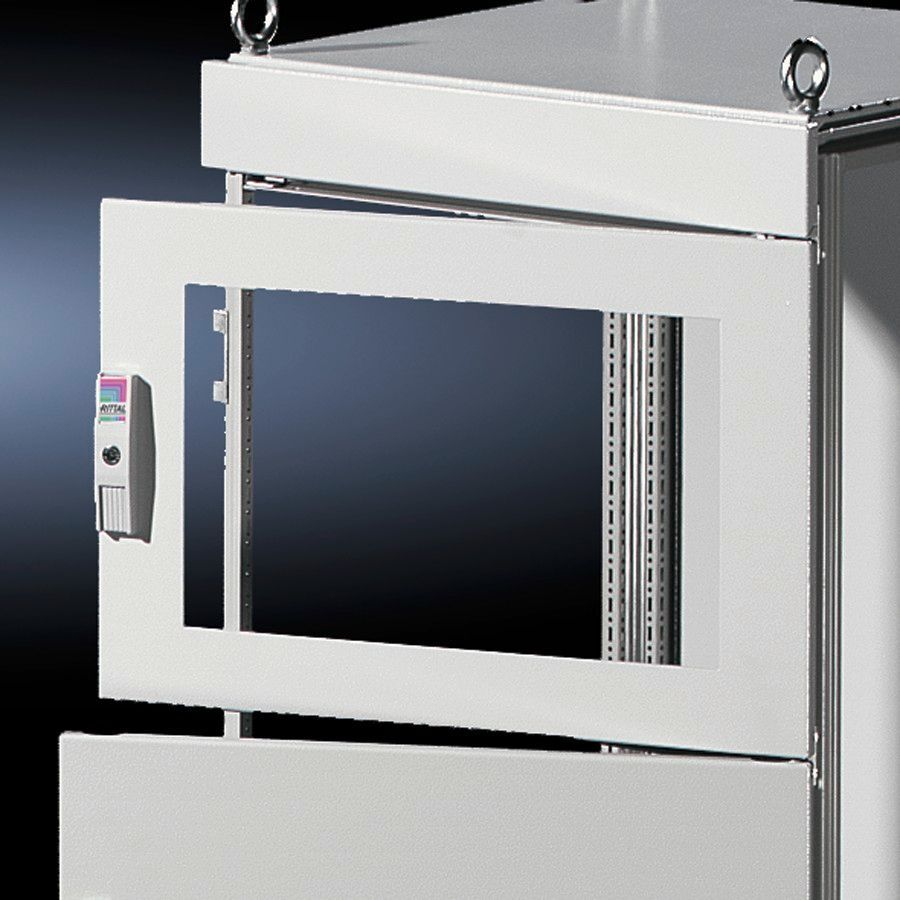

Rittal TS 9672.158 Partial Door - IP54 IP Protection

Partial door design for TS enclosures provides flexible access without the weight and bulk of a full door. The TS 9672.158 variant replaces or complements the door with a modular component that can be combined with other panels as needed, saving space in compact industrial cabinets. This approach supports lean maintenance routines by simplifying access to components behind the enclosure. Constructed from 2 mm sheet steel and finished with textured paint in RAL 7035, the door offers robust protection in demanding environments. The IP54 rating ensures enclosure integrity against dust and moisture when installed with the recommended trim panels. These materials also ease cleaning and repainting during plant maintenance, reducing long-term lifecycle costs. Hinge orientation can be selected left or right, enabling flexible installation in tight layouts. For doors without viewing panels (600–1000 mm), the monitor frame SZ 2305.000 may be installed, expanding display capabilities. The standard double-bit lock can be swapped for lock inserts Type F, and from 600 mm height, for a comfort handle, improving operator ergonomics. Each unit ships with essential hardware—cross member, hinges, lock components, and assembly parts—streamlining site assembly and reducing supplier lead times. The weight per pack is 15 kg and is packaged as 1 piece, facilitating safe handling and transport. The door is sized to fit 400 mm widths, matching TS 400 enclosures. Designed to fit TS enclosures without major rework, these partial doors replace or supplement standard doors and rear panels as needed. The combination with trim panels at the top and bottom ensures a clean, compliant enclosure silhouette with IP54 protection when fully installed. From a procurement perspective, the 9672.158 offers a modular upgrade path, lowers total cost of ownership by reducing downtime, and supports scalable automation projects in manufacturing environments.
