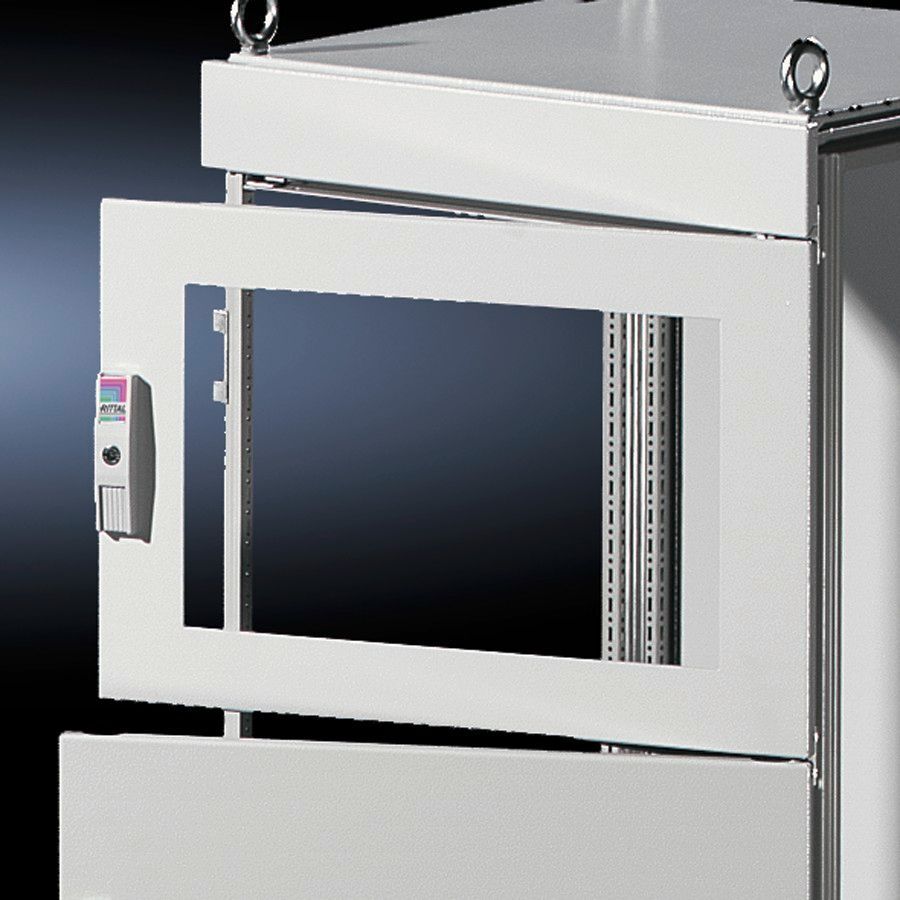

Rittal 9672161 SV Partial door for TS - IP54
Part Number: 9672161
Quick Summary
Rittal 9672161 SV Partial door for TS enclosures provides flexible front access for TS cabinets. This modular option lets you adapt enclosure configurations without swapping an entire door or rear panel, reducing downtime during maintenance or expansion. The solution carries IP54 protection for a completed enclosure and aligns with ETIM 9 EC002525 and ECLASS 8.0, streamlining procurement and cross‑supplier compatibility. Coupled with a durable 2 mm textured sheet steel door in RAL 7035 and left or right hinge options, it supports fast, reliable installs and long service life. Used alongside trim panels at the top and bottom, this approach enables scalable automation deployments and cost-efficient system updates.
Product Information
Extended Description
9672161 Rittal: SV Partial door, WH: 600x150 mm, for TS
Article number
TS 9672.161
Product description
Suitable for TS enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame SZ 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type F, and from 600 mm height, for comfort handle.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Hinges | Lock components | Assembly parts
Dimensions
Width:Â 600 mm | Height:Â 150 mm
To fit
Width:Â = 600 mm
IP protection category to IEC 60 529
IP 54 for a completed enclosure
Packs of
1 pc(s).
Weight/pack
2.62 kg
Customs tariff number
94039910
EAN
4028177697676
ETIM 9
EC002525
ECLASS 8.0
27182204
Product description
SV Partial door, WH: 600x150 mm, for TS
TS compatibility and modularity: The SV Partial door is designed for TS enclosures and can be combined with other partial doors as required. This modular approach lets you tailor access to sections of the enclosure without replacing the entire door, cutting maintenance time and spare-part costs in controlled environments. Material and protection: Constructed from 2 mm sheet steel with textured paint in RAL 7035, the door withstands typical industrial conditions and helps keep sensitive electronics protected from dust and minor splashes. The IP54 rating for a completed enclosure reinforces compliance expectations for many automation and manufacturing applications. Installation and hardware: Supplied with cross member, hinges, lock components, and assembly parts, the door is ready for site installation with left or right hinges. For doors without viewing panels (600–1000 mm heights), a monitor frame SZ 2305.000 can be installed to maintain visibility where needed. Value and lifecycle: At 2.62 kg per pack, the solution is easy to handle and stock, enabling faster replacements and reducing downtime during updates. This design supports scalable automation deployments while keeping total cost of ownership favorable in ongoing operations.
Get a Quick Quote for a Rittal 9672161
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672161?
Enquire Now
FAQs
Is this door compatible with TS enclosures and can it be hinged on either side? Yes. It fits TS widths up to 600 mm, includes cross member, hinges, lock components and assembly parts, and offers left or right hinge options for site-specific installation. For heights without a viewing panel, you can add monitor frame SZ 2305.000 as needed.
The door uses 2 mm sheet steel with a textured paint finish in RAL 7035, delivering durable protection in industrial environments. It carries IP54 protection for a completed enclosure, helping guard against dust ingress and splashes in typical manufacturing settings.
Yes. The SV Partial door is designed to replace a full door or rear panel in TS enclosures and can be combined with other partial doors as required. A trim panel at the top and bottom is required for each installation to ensure a clean, sealed fit.
The product aligns with ETIM 9 EC002525 and ECLASS 8.0 27182204, supporting standardized procurement data. The IP54 rating confirms enclosure protection, while TG/other CE markings are not specified in the data provided.
Using partial doors reduces downtime by enabling targeted access, lowering spare-parts inventory and enabling faster maintenance. The package weighs 2.62 kg per pack and includes necessary hardware, simplifying handling and installation in busy automation environments.
