Rittal 9672164 Partial Door for TS Enclosures - IP54
Part Number: 9672164
Quick Summary
Rittal 9672164 Partial Door for TS enclosures provides flexible front access for compact electrical cabinets, enabling selective service and faster maintenance in tight installations. When space is limited or a retrofit is required, the partial door avoids costly full-door replacements and minimizes downtime by enabling targeted access to critical equipment. The design supports CE compliance and IP54 protection, ensuring safe operation in industrial environments while remaining compatible with left or right hinge options and standard lock inserts. Constructed from 2 mm sheet steel with textured finish in RAL 7035, it pairs durability with a professional look and integrates with TS accessories for straightforward installation.
Product Information
Extended Description

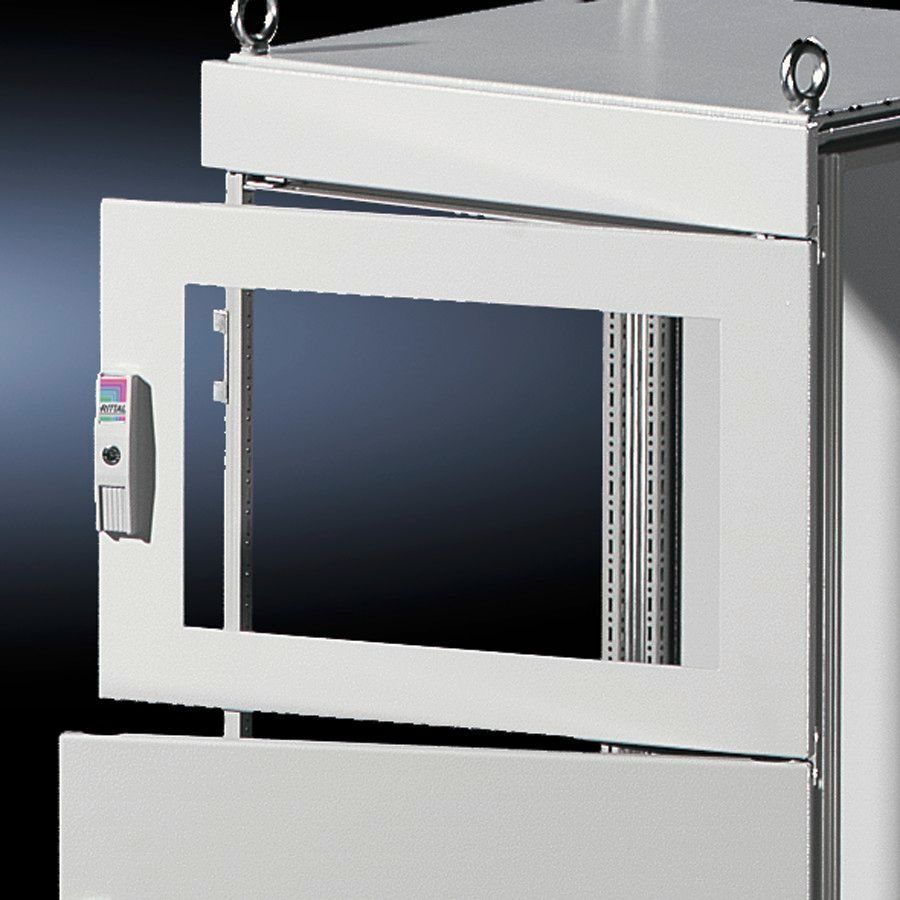

9672164 Rittal: SV Partial door, WH: 600x400 mm, for TS
Article number
TS 9672.164
Product description
Suitable for TS enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame SZ 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type F, and from 600 mm height, for comfort handle.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Hinges | Lock components | Assembly parts
Dimensions
Width:Â 600 mm | Height:Â 400 mm
To fit
Width:Â = 600 mm
IP protection category to IEC 60 529
IP 54 for a completed enclosure
Packs of
1 pc(s).
Weight/pack
5.35 kg
Customs tariff number
94039910
EAN
4028177697713
ETIM 9
EC002525
ECLASS 8.0
27182204
Product description
SV Partial door, WH: 600x400 mm, for TS
Feature: SV Partial door for TS enclosures supports combining with other partial doors, enabling tailored opening areas. Business impact: modularity shortens retrofit cycles and minimizes cabinet disruption, reducing downtime during maintenance and service operations. Application: ideal for TS enclosure retrofit projects and multi-door configurations that require selective access. Feature: Durable 2 mm sheet steel with textured paint in RAL 7035. Business impact: enhanced corrosion resistance and a consistent, long-lasting appearance reduces repaint cycles and maintenance costs in harsh environments. Application: plant floors and industrial interiors where aesthetics and protection matter. Feature: Precisely sized 600x400 mm footprint with IP54 protection for a completed enclosure. Business impact: reliable sealing against dust and water ingress lowers rework and compliance risk. Application: TS 600x400 enclosures in manufacturing lines. Feature: Left or right hinge capability and standard lock components with optional lock inserts type F or comfort handle. Business impact: flexible security configurations and easier on-site adjustments to accommodate operator preferences. Application: varied plant layouts and access control requirements. Feature: Includes cross member, hinges, lock components, and assembly parts. Business impact: reduces procurement steps and speeds on-site assembly, cutting project timelines. Application: straightforward installation with TS accessories; weight per pack 5.35 kg.
Get a Quick Quote for a Rittal 9672164
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672164?
Enquire Now
FAQs
The TS 9672.164 partial door is designed for TS series enclosures with a 600x400 mm footprint. It is compatible with left or right hinge configurations and includes the necessary assembly parts, allowing straightforward retrofits without replacing the full enclosure.
Key specs include 2 mm sheet steel construction, textured paint surface in RAL 7035, dimensions width 600 mm by height 400 mm, IP54 rating for a completed enclosure, and a weight of 5.35 kg per pack. It ships with cross member, hinges, lock components, and assembly parts.
Yes, the partial door is CE compliant and rated IP54 for completed enclosures, providing adequate protection against dust and water ingress in typical industrial settings such as manufacturing and automation facilities.
By enabling modular access without full enclosure replacement, it reduces downtime during maintenance, supports faster retrofits, and minimizes part counts through included hardware, contributing to lower total cost of ownership for TS enclosure upgrades.
The door comes with standard lock components and can be upgraded from the included double-bit insert to lock inserts type F or to a comfort handle from 600 mm height onward, allowing tailored security while maintaining ease of operation.
