Rittal TS 9672.196 Partial Door - IP54
Part Number: 9672196
Quick Summary
Rittal TS 9672.196 Partial Door provides flexible retrofit for TS enclosures, enabling on-site customization without a full enclosure replacement. This option addresses the common challenge of adjusting panel access to fit evolving hardware layouts and installation clearances. The design supports an IP54 protection level for completed enclosures and aligns with established industry classifications for data accuracy. With a 2 mm sheet steel body finished in textured paint and a durable RAL 7035 color, the partial door integrates smoothly with existing TS systems. By combining right or left hinge options with included assembly parts, it offers a practical path to faster commissioning, lower warehousing costs, and extended lifecycle in demanding automation environments.
Product Information
Extended Description

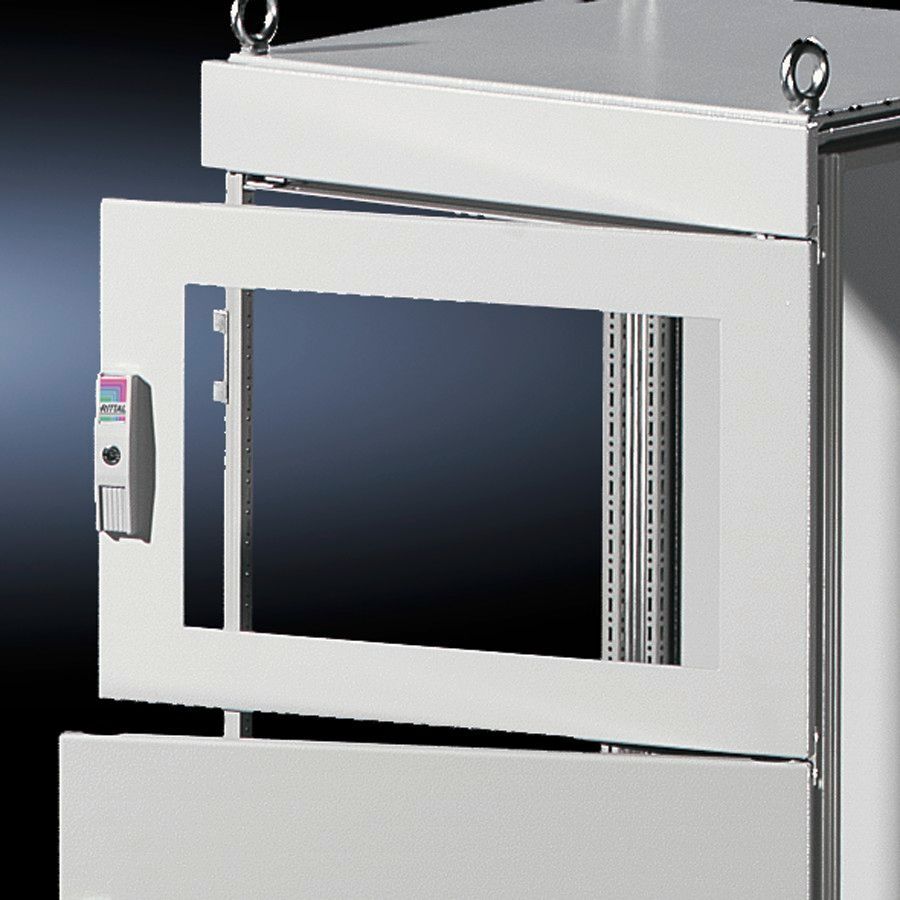

9672196 Rittal: SV Partial door, WH: 800x1600 mm, for TS
Article number
TS 9672.196
Product description
Suitable for TS enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame SZ 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type F, and from 600 mm height, for comfort handle.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Hinges | Lock components | Assembly parts
Dimensions
Width:Â 800 mm | Height:Â 1,600 mm
To fit
Width:Â = 800 mm
IP protection category to IEC 60 529
IP 54 for a completed enclosure
Packs of
1 pc(s).
Weight/pack
28 kg
Customs tariff number
94039910
EAN
4028177697850
ETIM 9
EC002525
ECLASS 8.0
27182204
Product description
SV Partial door, WH: 800x1600 mm, for TS
Feature → Business Impact → Application: Partial door design for TS enclosures enables modular access options, reducing downtime during configuration changes and enabling tailored airflow and cable routing. This translates to faster commissioning and lower total cost of ownership for automation cabinets used in manufacturing lines and data-center adjacent equipment. Feature → Application: The door’s right or left hinge capability supports installation in constrained plant layouts, improving serviceability and reducing hardware replacement cycles in control panels. Feature → Application: Includes cross member, hinges, lock components, and assembly parts, accelerating on-site assembly and ensuring consistent quality across multiple skids or lines. Feature → Application: The 2 mm sheet steel construction with textured paint in RAL 7035 delivers durable aesthetics and corrosion resistance, lowering maintenance and repainting needs in harsh environments. Feature → Application: IP54 rating under IEC 60529 provides protection against dust and water splashes, supporting safe operation in semi-industrial settings while staying compatible with TS enclosures. Feature → Application: The 800x1600 mm footprint directly fits TS enclosures of the same width, with a weight per pack of 28 kg facilitating handling and crane-free installation in controlled spaces.
Get a Quick Quote for a Rittal 9672196
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672196?
Enquire Now
FAQs
The TS 9672.196 Partial Door is designed for TS enclosures with a width of 800 mm and a height corresponding to an 800x1600 mm opening. It replaces or supplements a door or rear panel and requires compatible trim panels at the top and bottom to ensure a clean, sealed enclosure. The fitment is optimized for TS enclosures and aligns with the stated dimensions to avoid clearance issues during installation.
IP54 rating means the assembly provides protection against dust ingress to a level that won’t interfere with operation, and protection against water splashes from all directions. For installation, this supports safe operation in manufacturing or workshop environments where incidental dust and light splashes occur, while preserving panel accessibility and cooling paths.
The purchase includes essential hardware for quick mounting: a cross member, hinges, lock components, and assembly parts. For doors without a viewing panel, a monitor frame SZ 2305.000 can be installed. These components streamline on-site assembly and ensure consistent alignment with TS enclosure frames.
Yes. The TS 9672.196 Partial Door may be hinged on either the right or left side. This flexibility supports space-constrained installations and simplifies retrofits in existing cabinets, while maintaining a consistent seal with the included trim panels.
The door uses 2 mm sheet steel with a textured paint finish in RAL 7035. This combination delivers durable corrosion resistance and a clean, maintenance-friendly appearance. The robust construction reduces repainting and part replacements, contributing to lower lifecycle costs in aggressive industrial environments.
