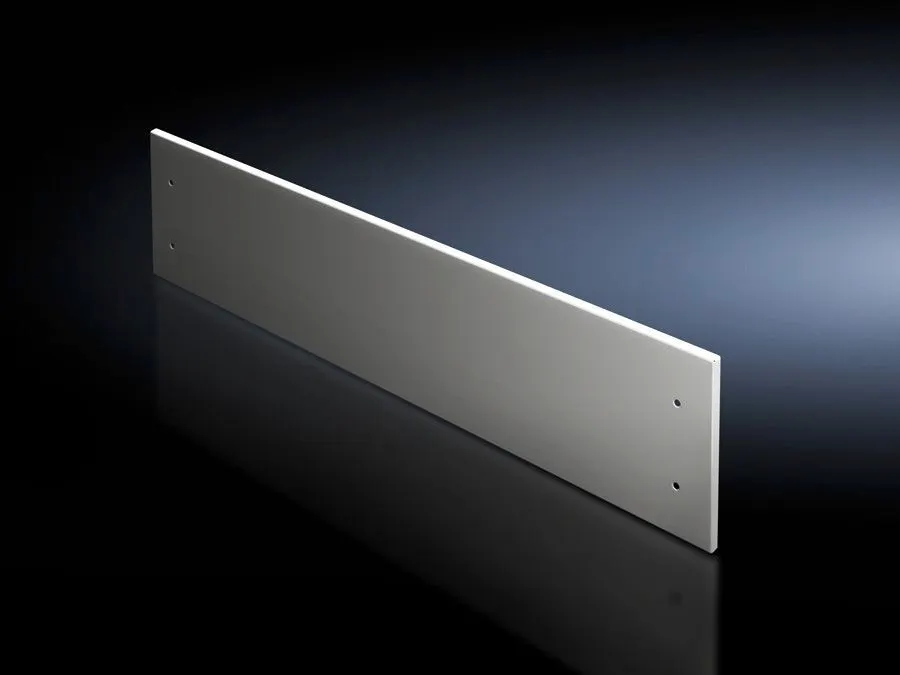

Rittal SV 9672.314 Front Trim Panel - IP54
Part Number: 9672314
Quick Summary
Rittal SV 9672.314 Front Trim Panel finishes the modular top edge for TS enclosures with partial doors, delivering a clean, professional look and durable protection. This accessory solves the common challenge of maintaining a seamless top profile when doors are offset, reducing maintenance time and edge wear. It delivers IP54 protection and aligns with industry classifications ETIM EC002525 and ECLASS 8.0 27142423 to support procurement and compliance workflows. The textured finish in RAL 7035 provides consistent color coding and corrosion resistance, while the included cross member and mounting parts streamline installation, delivering real-world cost and downtime savings for panel builders and integrators.
Product Information
Extended Description
9672314 Rittal: SV Front trim panel, for TS, top, WH: 400x100 mm, protection category IP 54
Article number
SV 9672.314
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Height front panel top
100 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
1.235 kg
Customs tariff number
94039910
EAN
4028177697331
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, top, WH: 400x100 mm, protection category IP 54
Feature: Top-edge finish for TS enclosure fronts. Business Impact: Improves aesthetics and seals the top edge, reducing dust ingress and wear; Application: Ideal for modular front designs when using partial doors in control cabinets. Feature: Robust construction. Business Impact: 2 mm sheet steel offers durability in harsh environments, extending service life and minimizing replacement costs; Application: Suitable for factory floors and industrial environments where physical impact can occur. Feature: Precise fit and mounting. Business Impact: 400x100 mm top height and width compatibility with TS enclosures simplifies retrofits and new builds, accelerating project timelines; Application: Works with standard TS top profiles and partial-door configurations. Feature: Finish and color consistency. Business Impact: Textured paint in RAL 7035 supports uniform appearance and easier maintenance, reducing rework during color coding; Application: Ideal for standardized plant design. Feature: Easy installation. Business Impact: Removable from outside by unscrewing and cross member included with mounted partial doors speeds assembly and serviceability; Application: Useful for field upgrades and service routines in busy production lines. Feature: Compliance-ready and traceable. Business Impact: ETIM 9 EC002525 and ECLASS 8.0 27142423 alignment aids sourcing and regulatory documentation; Application: Streamlines procurement for multi-site operations.
Get a Quick Quote for a Rittal 9672314
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672314?
Enquire Now
FAQs
The panel is designed to be removable from the outside by unscrewing, with the cross member included for mounting the mounted partial doors. It fits a 400x100 mm top and uses a 2 mm sheet steel construction, enabling straightforward retrofits or new builds without special tools.
Specifications include 400x100 mm top dimensions for TS enclosures, IP54 protection, 2 mm sheet steel material, textured paint surface, RAL 7035 color, weight 1.235 kg per pack, and supply includes assembly parts plus a mounting cross member for partial-door configurations.
Yes. The IP54 rating provides protection against dust ingress and splash effects, while the textured paint and 2 mm steel construction offer durability and corrosion resistance suitable for typical factory and production environments.
The product is aligned with ETIM 9 EC002525 and ECLASS 8.0 27142423 for standardized cataloging, and it carries an IP54 protection rating, with a specific 4028177697331 EAN for traceability in procurement and asset management.
It delivers a clean, protected top edge with quick installation, reduces field downtime during retrofits, supports consistent color coding (RAL 7035), and simplifies procurement through standardized classifications, resulting in faster project completion and longer-lasting front-end protection.
