Rittal SV 9672.316 Front Trim Panel - IP54
Part Number: 9672316
Quick Summary
SV Front trim panel finishes the top edge of TS enclosures with partial doors, delivering a clean, professional look. Users often struggle with unfinished edges and inconsistent protection when doors are not fully engaged; this panel provides a robust finish that hides voids while maintaining access for maintenance. The design aligns with IP54 protection and adheres to industry standards such as ETIM 7.0 EC000456 and ECLASS 8.0 27142423, helping procurement teams standardize specifications. With its 2 mm sheet steel construction, textured paint, and the 600x100 mm footprint, the panel delivers durability and a cohesive front design across modular systems, while the included mounting parts support fast, repeatable installations. These factors translate into reduced rework and improved panel aesthetics in industrial environments.
Product Information
Extended Description

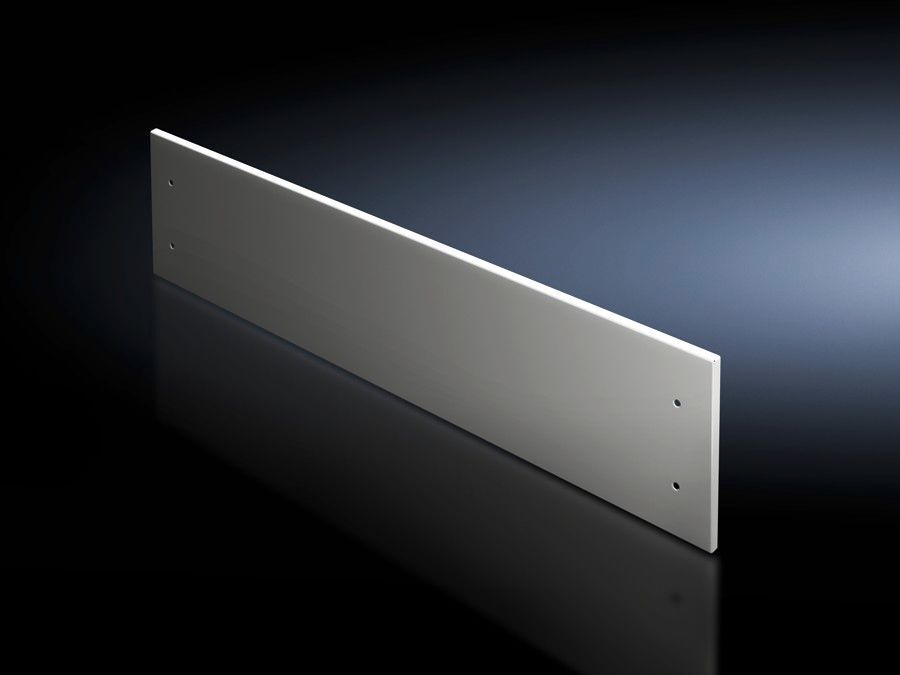

9672316 Rittal: SV Front trim panel, for TS, top, WH: 600x100 mm, protection category IP 54
Article number
SV 9672.316
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Height front panel top
100 mm
To fit
Width:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
1.688 kg
Customs tariff number
94039910
EAN
4028177697348
ETIM 7.0
EC000456
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, top, WH: 600x100 mm, protection category IP 54
Feature to benefit to application: The SV Front trim panel uses 2 mm sheet steel for a durable top-edge finish, delivering increased rigidity and edge protection that withstands daily cabinet use in harsh industrial environments. This translates to reduced edge dings and longer service life for TS enclosures, especially in high-traffic control rooms and manufacturing floors. Feature: textured paint finish in RAL 7035. Benefit: easier cleaning and a consistent industrial look that resists grime, enabling cleaner installations with less maintenance. Feature: dimensions 600x100 mm and 100 mm height at the top. Benefit: precise fit for standard TS widths, ensuring a seamless modular front design and minimizing gaps between doors and panels. Feature: removal from the outside by unscrewing; cross member included. Benefit: simplifies field maintenance and upgrades, enabling quick removal without disassembling the entire door stack. Feature: supply includes assembly parts; Weight per pack 1.688 kg. Benefit: faster commissioning, fewer sourcing steps, and safer handling during installation, particularly in constrained electrical rooms. Feature: IP54 protection rating; ETIM EC000456 and ECLASS 27142423 alignment. Benefit: protects interior components from dust ingress and splashes, while aligning with procurement standards and regulatory expectations for enclosure accessories.
