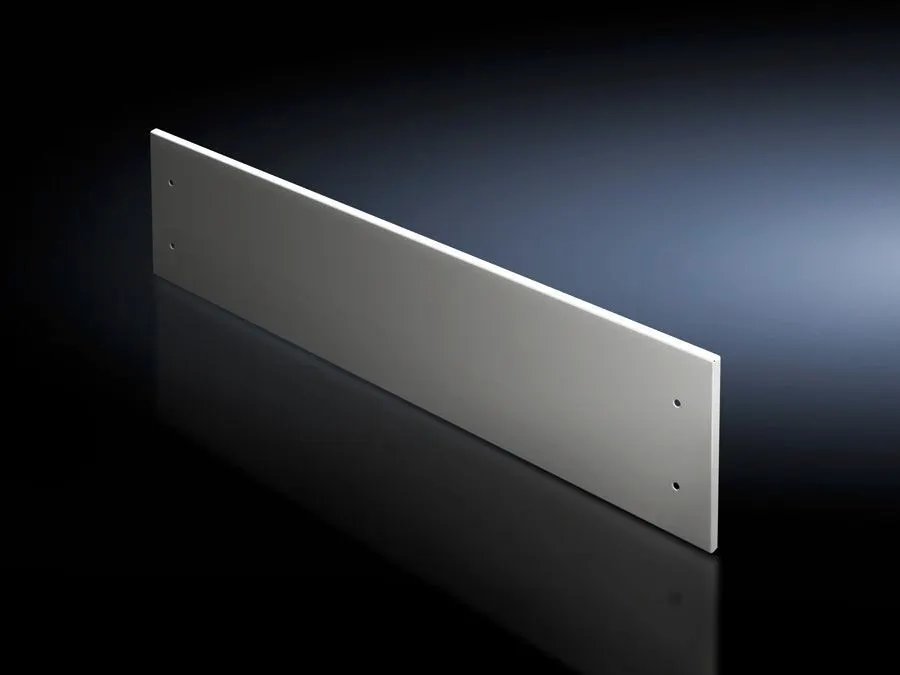

Rittal 9672318 SV Front Trim Panel - IP54, 800x100
Part Number: 9672318
Quick Summary
SV Front Trim Panel finishes TS enclosures with partial doors, providing a clean 800x100 mm top. Without this trim, modular fronts look unfinished and can hinder sealing during top-door operations. IP 54 protection, ETIM EC002525 and ECLASS 27142423 classifications support compliance in automation projects. Designed for seamless integration with TS enclosures, it ships with the cross member and assembly parts for quick retrofit. This solution reduces field labor, accelerates installation, and lowers lifecycle costs while preserving modular aesthetics. Ideal for retrofit projects in automation facilities and for maintaining consistent color and finish in industrial environments.
Product Information
Extended Description
9672318 Rittal: SV Front trim panel, for TS, top, WH: 800x100 mm, protection category IP 54
Article number
SV 9672.318
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Height front panel top
100 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
2.15 kg
Customs tariff number
94039910
EAN
4028177697355
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, top, WH: 800x100 mm, protection category IP 54
Feature: 2 mm sheet steel construction with textured paint in RAL 7035. Business Impact: Provides robust front finish resistant to routine nicks and abrasion in factory environments. Application: Suited for TS top trim in modular enclosures. Feature: 800x100 mm top fit and 100 mm height. Business Impact: Ensures a precise, consistent top edge for modular fronts and door configurations. Application: Aligns with standard TS widths for rapid retrofits. Feature: Supplied with assembly parts and a cross member. Business Impact: Speeds installation and reduces on-site sourcing of mounting hardware. Application: Ideal for quick retrofit of partial-door configurations. Feature: IP 54 protection and textured paint finish. Business Impact: Delivers reliable ingress protection and durable appearance in harsh environments. Application: Suitable for factory floors, control cabinets, and switchgear housings. Feature: Color: RAL 7035 and finish consistency. Business Impact: Ensures visual cohesion across enclosures and reduces custom painting needs. Application: Supports standardized industrial interiors and compliant aesthetic guidelines. Feature: Pack details and weight: 1 piece per pack, 2.15 kg per pack. Business Impact: Predictable logistics and handling in warehouse and shop-floor environments. Application: Simplifies inventory planning and maintenance scheduling.
Get a Quick Quote for a Rittal 9672318
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672318?
Enquire Now
FAQs
SV Front Trim Panel is designed for TS enclosures with top mounting needs and partial-door configurations. It fits 800x100 mm tops, ships with the cross member, and can be removed from the outside by unscrewing, enabling quick retrofits without full disassembly.
The panel is made from 2 mm sheet steel with a textured paint finish in RAL 7035, and carries an IP 54 protection rating to resist dust ingress and splashing water in typical industrial environments.
Ideal for industrial automation, control cabinets, and switchgear housings where TS enclosures require a finished top with partial doors, ensuring modular aesthetics, quick retrofits, and durable surface protection in harsh factory environments.
Key classifications include ETIM 9 EC002525 and ECLASS 8.0 27142423, along with the IP 54 protection rating. The product is associated with a GTIN of 4028177697355 and carries the article number SV 9672.318.
The panel’s external-removal capability, included cross member, and assembly parts reduce field labor during retrofit projects. Its lightweight 2.15 kg per pack and standard 800x100 mm size simplify inventory management and shorten installation times, delivering a faster payback in upgrade programs.
