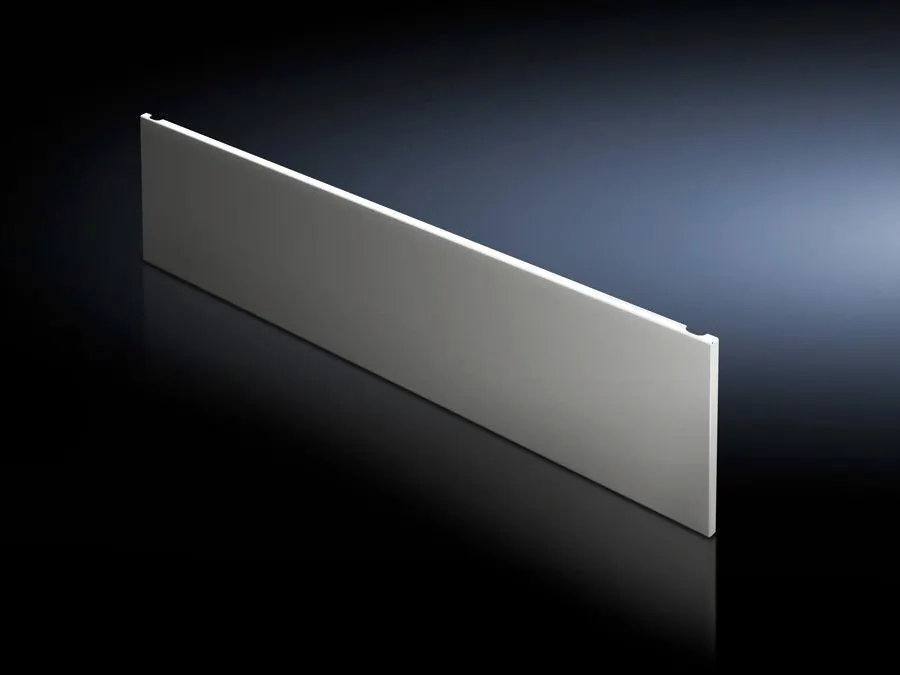

Rittal 9672334 Front Trim Panel - IP54 400x100 mm
Part Number: 9672334
Quick Summary
Rittal 9672334 Front Trim Panel provides a clean bottom finish for TS enclosures, enabling seamless modular front designs. Engineers often confront bottom gaps when using partial doors, risking dust ingress and compromised appearance. This panel delivers IP54 protection and aligns with ETIM EC002525 and ECLASS 27142423 standards to ensure precise cataloging and compatibility. In practice, you gain a professional, consistent finish across rack systems with straightforward installation, while the TS-specific size and 2 mm sheet steel construction reduce maintenance and potential rework. Designed for TS enclosures in manufacturing environments, the bottom trim supports a robust, scalable modular approach and complements your procurement of compatible assembly parts and cross members.
Product Information
Extended Description
9672334 Rittal: SV Front trim panel, for TS, bottom, WH: 400x100 mm, protection category IP 54
Article number
SV 9672.334
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
100 mm
To fit
Width:Â = 400 mm
Packs of
1 pc(s).
Weight/pack
1.57 kg
Customs tariff number
94039910
EAN
4028177697393
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 400x100 mm, protection category IP 54
Feature: 2 mm sheet steel construction; Benefit: enhances durability and rigidity in high-traffic industrial environments, reducing the risk of deformation and ensuring long service life; Application: ideal for TS enclosure bottom trims in manufacturing plants where mechanical loads are common and maintenance windows are limited. Feature: Textured paint surface in RAL 7035; Benefit: provides a resilient, easy-to-clean finish that resists fingerprints and corrosion, improving aesthetics and reducing repaint cycles; Application: suitable for control rooms and production floors where cosmetics and wear are critical. Feature: IP54 protection rating; Benefit: protects internal components from dust ingress and water splashes, lowering the risk of operational downtime; Application: suitable for partially open or exposed TS enclosures in production workflows. Feature: Fits width 400 mm and height 100 mm; Benefit: ensures precise integration with standard TS bottom dimensions, minimizing alignment issues and installation time; Application: simplifies retrofit projects and upgrades across existing racks. Feature: Supplied with cross member and assembly parts; Benefit: accelerates installation and reduces sourcing effort, lowering project lead times; Application: helpful for quick field assemblies and on-site upgrades. Feature: Removable from outside by unscrewing; Benefit: enables rapid servicing without complete disassembly, reducing maintenance costs; Application: critical for frequent inspections or door configurations using partial doors.
Get a Quick Quote for a Rittal 9672334
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672334?
Enquire Now
FAQs
Installation is straightforward: align the 400x100 mm footprint with the bottom opening of the TS enclosure, attach the panel using the included cross member and assembly parts, then tighten from the outside. The design supports removal by unscrewing for quick service, minimizing downtime during door configuration changes and routine maintenance.
Yes. The SV front trim panel is specifically designed to finish the modular front when partial doors are used, helping to seal the base region and maintain a uniform appearance. Its removable outside-access feature allows field adjustments without full enclosure disassembly, which is ideal for setups with recurring door activity.
The panel is 400x100 mm and 100 mm high, made from 2 mm sheet steel with a textured paint finish in RAL 7035. It weighs 1.57 kg and is designed to fit TS bottom trims precisely, simplifying installation and reducing misfit risk in standard 400 mm wide TS frames.
Key references include IP54 protection, ETIM 9 EC002525, and ECLASS 8.0 27142423, which support accurate digital cataloging and interoperability with procurement systems. The product also carries GTIN 4028177697393 and EAN 4028177697393, streamlining order fulfillment and inventory management.
It delivers a durable bottom-finishing solution that protects interior components, improves enclosure aesthetics, and reduces maintenance cycles. The panel’s fit-for-purpose design, included installation parts, and outside-access removal streamline installation and service, lowering total cost of ownership and supporting consistent, repeatable assembly across multiple TS systems.
