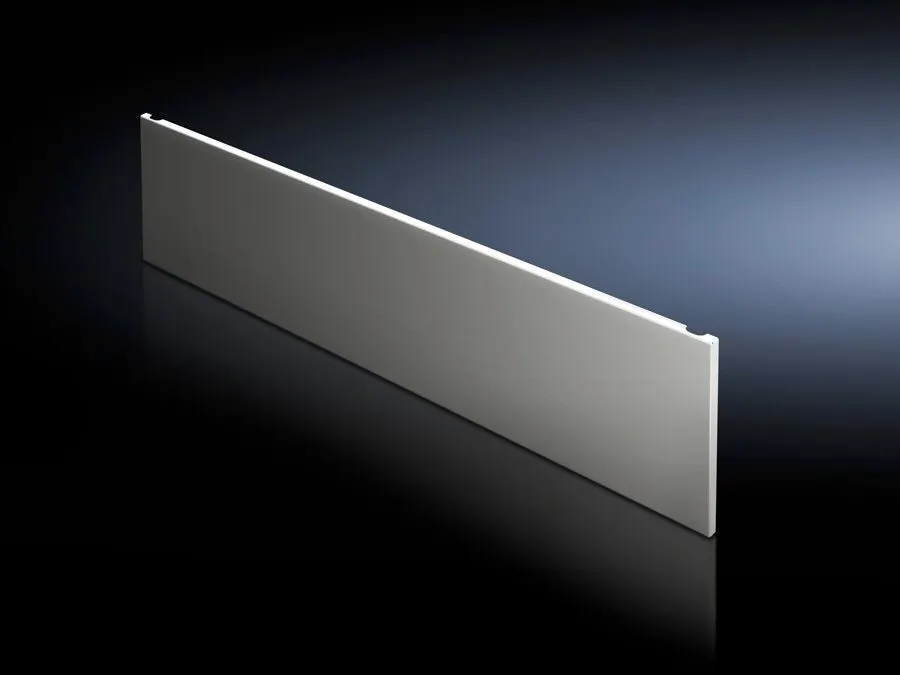

Rittal SV 9672.336 Front Trim Panel Bottom - IP54
Part Number: 9672336
Quick Summary
The Rittal SV 9672.336 Front Trim Panel Bottom finishes modular fronts on TS enclosures. Without this bottom trim, partial doors can leave gaps, raise ingress risk, and hinder aesthetics. IP 54 protection, ETIM EC002525 and ECLASS 27142423 classifications support reliable procurement and safe operation. This accessory helps shorten installation time, reduces retrofit complexity, and preserves a cohesive, professional cabinet appearance. Designed for 600x100 mm bottom fit and 2 mm sheet steel with textured paint in RAL 7035, it ships as a ready-to-install pack. Its removable outside-access design enables quick service without removing panels from the interior, improving maintenance efficiency. Engineers will appreciate compatibility notes that confirm fitment with TS enclosures and related Rittal accessories.
Product Information
Extended Description
9672336 Rittal: SV Front trim panel, for TS, bottom, WH: 600x100 mm, protection category IP 54
Article number
SV 9672.336
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
100 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
2.16 kg
Customs tariff number
94039910
EAN
4028177697409
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 600x100 mm, protection category IP 54
Feature: Sheet steel construction at 2 mm thickness with a textured paint finish in RAL 7035 ensures durability and a professional appearance. Business Impact: Improves long-term enclosure protection and reduces rework costs from chipped paint or corrosion. Application: Ideal for TS enclosures where a clean bottom finish is required for partial doors, even in dust-prone environments. Feature: IP54 protection rating provides dust and splash resistance. Business Impact: Enhances reliability in harsh manufacturing settings, lowering downtime due to environmental exposure. Application: Suitable for bottom installation on modular fronts in process lines and assembly areas. Feature: Modular, removable design allows outside access. Business Impact: Speeds maintenance and service, reducing labor time during gasket checks or bottom-panel replacement. Application: Supports quick retrofit without interior disassembly in TS enclosures. Feature: Included hardware and cross member simplify mounting. Business Impact: Reduces installation complexity and error margins, enabling faster project rollouts. Application: Fits with standard Rittal assembly parts for a seamless upgrade path. Feature: Size compatibility 600x100 mm bottom fit with 1-pack configuration. Business Impact: Predictable inventory planning and reliable supply for single-assembly retrofits. Application: Fits TS widths of 600 mm and bottom-front requirements with partial-door configurations.
Get a Quick Quote for a Rittal 9672336
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672336?
Enquire Now
FAQs
The SV 9672.336 Front Trim Panel Bottom is designed to finish the bottom of TS enclosures when using partial doors. It fits a 600 mm wide frame with a 600x100 mm footprint and ships with a cross member and assembly parts for straightforward mounting. Its outside-removable design aids maintenance without interior panel removal.
Installation begins by aligning the 600x100 mm panel to the base of the TS enclosure. Attach the supplied cross member and assembly parts, then secure the trim panel from the outside by unscrewing as needed. The process preserves IP 54 protection while enabling quick retrofits or replacements.
Key specs include 2 mm sheet steel, textured paint finish, and color RAL 7035. The panel measures 600x100 mm and weighs 2.16 kg per pack. It carries IP 54 protection and is supplied as a 1-pack configuration with necessary assembly parts for mounting.
Yes, it is ideal for retrofits in TS enclosures with partial doors. Its 2 mm steel construction and IP 54 rating reduce long-term maintenance costs, while the included cross member and assembly parts minimize additional hardware spending. The outside-access design speeds service, lowering downtime and labor costs.
Verify the enclosure width is 600 mm and that the bottom space accommodates a 600x100 mm panel. The panel is removable from the outside, enabling fast gasket checks and bottom servicing. It also aligns with ETIM EC002525 and ECLASS 27142423 classifications, ensuring procurement consistency with Rittal accessories.
