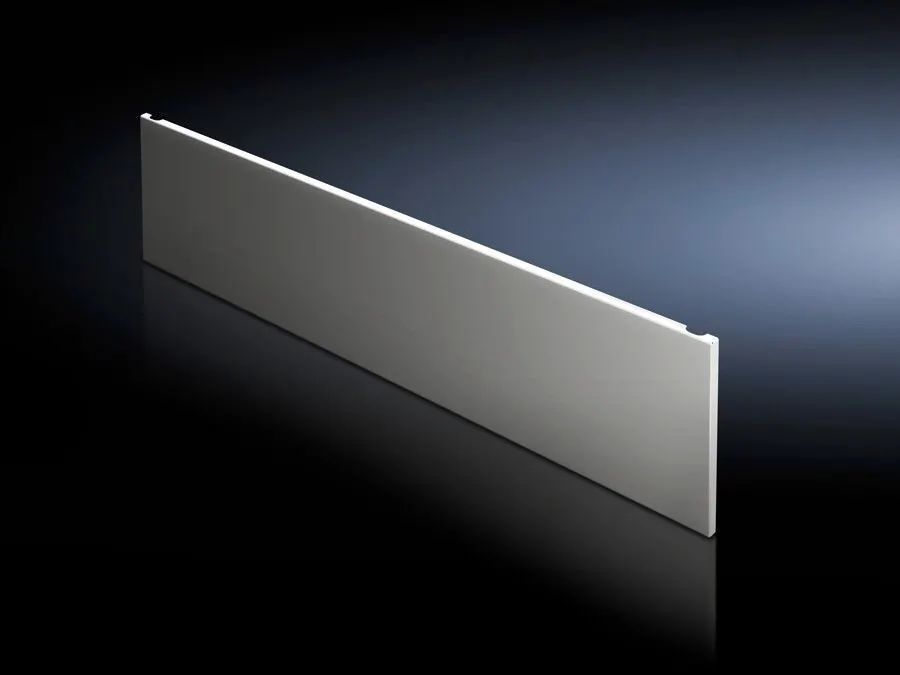

Rittal 9672338 SV Front Trim Panel - IP 54 Protection
Part Number: 9672338
Quick Summary
Rittal 9672338 SV Front Trim Panel is a bottom-edge finishing solution for TS enclosures. Engineers often struggle with visible gaps and edge damage when doors are partially fitted, especially in harsh industrial environments. It provides IP 54 protection and aligns with ETIM EC002525 and ECLASS 8.0 27142423 standards, aiding compliant sourcing and consistent BOM data. This trim supports a modular front design while simplifying maintenance, delivering faster install times and lower lifecycle costs for industrial enclosures. For procurement teams, standardized classifications improve part matching, and for technicians, the external removal by unscrewing minimizes field downtime and service complexity.
Product Information
Extended Description
9672338 Rittal: SV Front trim panel, for TS, bottom, WH: 800x100 mm, protection category IP 54
Article number
SV 9672.338
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
100 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
2.75 kg
Customs tariff number
94039910
EAN
4028177697515
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 800x100 mm, protection category IP 54
Feature: 2 mm sheet steel with textured paint in RAL 7035. Business impact: durable, impact-resistant edge finish that withstands industrial wear, reducing repainting and replacement costs. Application: ideal for TS cabinet bottoms where frequent access and cleaning are required. Feature: IP 54 protection. Business impact: protects internal components from dust ingress and splashes, boosting uptime in workshop and manufacturing environments. Application: enclosures in dusty or wash-down areas benefit from reliable edge protection. Feature: 800x100 mm bottom trim and 800 mm width fit. Business impact: precise fit minimizes gaps, simplifies alignment during assembly, and speeds up installation. Application: standard TS enclosure configurations with partial doors. Feature: Removable from outside by unscrewing. Business impact: eliminates interior access for maintenance, reducing service downtime and risk of contamination. Application: quick field servicing without disassembly. Feature: Includes cross member and assembly parts. Business impact: lowers total part count and procurement lead times, accelerating project timelines. Application: seamless integration with TS mounting systems. Feature: Weight per pack 2.75 kg; 1 pc per pack. Business impact: easy handling and shipping, improving logistics and stocking efficiency. Application: efficient warehouse storage and transport. Feature: ETIM 9 EC002525 and ECLASS 8.0 27142423 aligned. Business impact: standardized data for improved BOM accuracy and supplier selection. Application: procurement and engineering data management.
Get a Quick Quote for a Rittal 9672338
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672338?
Enquire Now
FAQs
Installation is straightforward: align the 800 mm width, use the supplied cross member and assembly parts, and remove the trim from the outside by unscrewing. The 2 mm sheet steel panel with textured paint in RAL 7035 installs quickly, maintaining modular front aesthetics and edge protection with minimal downtime.
Yes. The SV Front Trim Panel is designed to finish the bottom edge when using partial doors on TS enclosures, ensuring a consistent, weather-resistant finish while preserving accessibility for maintenance and inspection.
Key specs include 800x100 mm footprint, 2 mm sheet steel material, textured paint finish, color RAL 7035, IP 54 protection, weight 2.75 kg per pack, and it includes a cross member with assembly parts for quick mounting.
The panel provides IP 54 protection, preserving enclosure integrity by limiting dust ingress and splashes at the bottom edge. External removal is simple via unscrewing, which helps during maintenance without compromising overall sealing when properly reassembled.
The trim panel enhances edge durability, reduces maintenance downtime, and improves the modular front aesthetics of TS enclosures. With standardized ETIM/ECLASS data, procurement is more accurate, and installation is faster, yielding lower lifecycle costs in production lines and control rooms.
