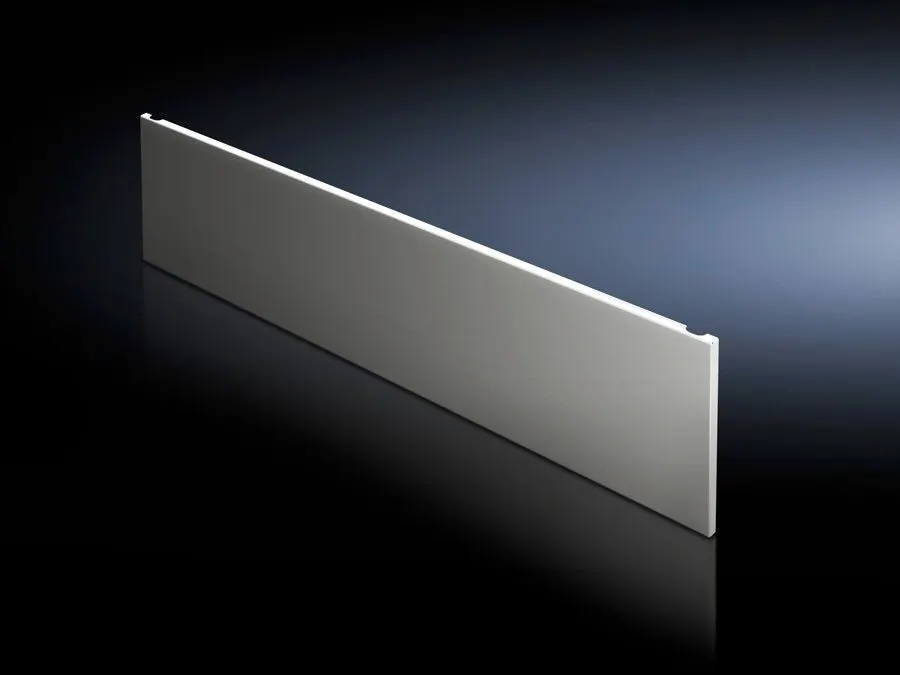

Rittal 9672344 Front Trim Panel for TS - IP 54, 400x300
Part Number: 9672344
Quick Summary
Rittal 9672344 Front Trim Panel finishes modular TS fronts, protecting the bottom edge of enclosures. When installed with partial doors, exposed seams can compromise both aesthetics and enclosure integrity; this trim panel conceals gaps and helps maintain door alignment under varying loads. It meets IP 54 protection and aligns with ETIM EC000456 and ECLASS 27142423 standards, ensuring interoperability with common procurement catalogs. By combining a durable 2 mm sheet steel construction with textured RAL 7035 finish, it delivers reliable bottom-edge protection while enabling quick maintenance and factory-grade aesthetics. This accessory supports streamlined assembly, consistent branding, and reduced field service time across your modular TS systems.
Product Information
Extended Description
9672344 Rittal: SV Front trim panel, for TS, bottom, WH: 400x300 mm, protection category IP 54
Article number
SV 9672.344
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
300 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
2.98 kg
Customs tariff number
94039910
EAN
4028177697522
ETIM 7.0
EC000456
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 400x300 mm, protection category IP 54
Feature : 2 mm sheet steel construction delivers robust durability for bottom-edge protection in TS enclosures. Business Impact : Increases enclosure longevity, reduces risk of bottom-edge damage, and lowers maintenance costs over time. Application : Ideal for TS front finishes where frequent door operation occurs and mechanical wear is a concern. Feature : Textured paint surface in RAL 7035 enhances resistance to wear and environmental exposure. Business Impact : Prolongs visual appeal and reduces repaint cycles in factory floors. Application : Suitable for harsh indoor environments where cosmetic impact matters as well as functional protection. Feature : 400x300 mm fitment with 300 mm vertical height at the bottom. Business Impact : Ensures precise alignment with standard TS widths, enabling quick retrofits. Application : Works with 400 mm-wide panels and TS modular configurations.Feature : Removability from the outside by unscrewing. Business Impact : Speeds installation and replacement, minimizing downtime during upgrades or maintenance. Application : Facilitates fast service by maintenance teams without cabinet disassembly. Feature : Supplied with cross member and assembly parts. Business Impact : Reduces sourcing steps and part mismatch, ensuring a complete installation kit. Application : Improves project planning and on-site efficiency. Feature : IP 54 protection rating. Business Impact : Provides reliable ingress protection against dust and water splash in typical industrial environments. Application : Compatible with enclosure environments requiring defined protection levels while maintaining visibility and access via standard screws.
Get a Quick Quote for a Rittal 9672344
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672344?
Enquire Now
FAQs
SV 9672.344 is designed to fit TS enclosures, bottom position, with a 400x300 mm footprint. It installs from the outside by unscrewing and includes a cross member and assembly parts, enabling quick integration even when partial doors are used. This reduces field labor and ensures consistent alignment with existing TS configurations.
Key specs include 2 mm sheet steel construction, textured paint surface, and a 300 mm bottom height with a 400 mm width. It carries IP 54 protection and uses RAL 7035 color. The unit weighs 2.98 kg per pack and ships as a single-piece pack with mounting hardware, suitable for rapid deployment.
Yes. The IP 54 rating provides protection against dust and water ingress in typical manufacturing environments. The 2 mm steel build and textured finish resist wear, while the design accommodates partial doors by concealing bottom-edge gaps and keeping front alignment intact during frequent door operations.
SV 9672.344 aligns with standard classifications including ETIM 7.0 EC000456 and ECLASS 8.0 27142423, and carries IP 54 protection. These standards support accurate cataloging, procurement integration, and compatibility with common industrial component databases.
The trim panel reduces downtime by enabling quick exterior removal and replacement, minimizes repaint or cosmetic refurbishment costs through a durable textured finish, and extends enclosure life by protecting the bottom edge. Its standardized parts and straightforward installation translate to faster install times and lower maintenance labor in manufacturing facilities.
