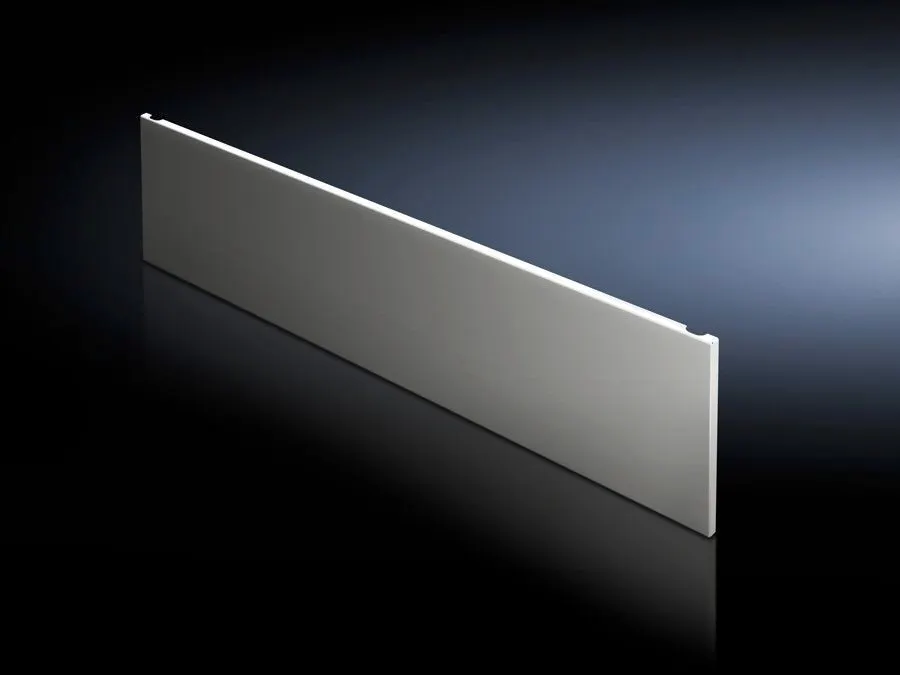

Rittal 9672346 Front trim panel - IP54 bottom TS 600x300
Part Number: 9672346
Quick Summary
Front trim panel finishes the bottom of TS enclosures, delivering a clean, modular look for industrial cabinets. Used to close gaps when partial doors are installed, it helps protect vulnerable base components and maintain enclosure integrity. With an IP 54 rating and standard classifications such as ETIM 9 EC002525 and ECLASS 8.0 27142423, the part aligns with procurement and maintenance workflows. Made from 2 mm sheet steel with a textured RAL 7035 finish and a footprint of 600x300 mm, it weighs 4.1 kg per pack. Includes cross member and assembly parts to simplify installation, while external removal supports fast maintenance and replacement without disassembly. This standardized base detail reduces variation across fleets, lowering downtime and inventory costs.
Product Information
Extended Description
9672346 Rittal: SV Front trim panel, for TS, bottom, WH: 600x300 mm, protection category IP 54
Article number
SV 9672.346
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
300 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
4.1 kg
Customs tariff number
94039910
EAN
4028177697539
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 600x300 mm, protection category IP 54
Feature → Business Impact → Application: The SV front trim panel is built from 2 mm sheet steel with a textured paint finish in RAL 7035, delivering durable edge protection for TS enclosures and reducing base wear in demanding environments. This translates to lower maintenance costs and longer enclosure life, especially in harsh industrial settings where doors are frequently opened. Application: Use at the bottom of TS enclosures to create a clean finish when partial doors are employed, with removal from the outside via unscrewing for maintenance access without full door removal. Feature → Business Impact → Application: The panel fits a 600x300 mm footprint and includes a cross member plus assembly parts, enabling rapid on-site installation and straightforward replacement if damaged, minimizing downtime and labor. Application: Ideal for modular panel systems and standardized cabinet families where rapid interchangeability is beneficial. Feature → Business Impact → Application: IP 54 protection ensures dust and water ingress resistance in base areas, supporting compliance with basic enclosure protection while allowing external servicing; this is critical for environments requiring predictable performance and predictable service routines. Application: Suitable for manufacturing, automation, and electrical distribution panels where bottom-edge protection is essential. Feature → Business Impact → Application: The 300 mm height bottom front panel aligns with TS enclosure geometry to maintain consistent aesthetics and reduce variance during procurement; this simplifies sourcing and reduces ordering friction. Application: Use across multiple TS cabinet lines to standardize the base finish, contributing to tighter inventory control and faster project quoting.
Get a Quick Quote for a Rittal 9672346
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672346?
Enquire Now
FAQs
The SV 9672.346 front trim panel is designed for TS enclosures with a bottom footprint of 600x300 mm. It installs from the outside using the included cross member and assembly parts, and can be removed without removing partial doors by unscrewing. Ensure enclosure width matches exactly 600 mm and that mounting hardware is accessible for routine maintenance.
This panel is sized for a 600 mm wide TS enclosure and 300 mm tall bottom position. Mounting uses the supplied cross member and assembly parts, designed for exterior removal. For best results, verify that the TS frame accommodates a bottom trim without interfering with door hinges or seals, and that the cross member aligns with existing mounting points.
Key specs include 2 mm sheet steel construction, textured paint finish in RAL 7035, IP 54 protection, size 600x300 mm, and a weight of 4.1 kg per pack. The supply includes a cross member and assembly parts, with an article number SV 9672.346 and EAN 4028177697539 for streamlined procurement and cataloging.
The panel adheres to standard industry classifications (ETIM 9 EC002525 and ECLASS 8.0 27142423) and carries IP 54 protection, suitable for environments requiring basic enclosure protection and reliable maintenance access. While SIL or CE specifics are not stated, the combination of IP rating and standardized classifications supports regulatory alignment and procurement traceability.
By delivering a consistent base finish, the panel reduces aesthetic variance across cabinets and simplifies maintenance access. Quick exterior removal minimizes downtime during inspections or component replacements, improving overall uptime. The included cross member and assembly parts lower installation time and parts count, contributing to lower total cost of ownership over cabinet fleets.
