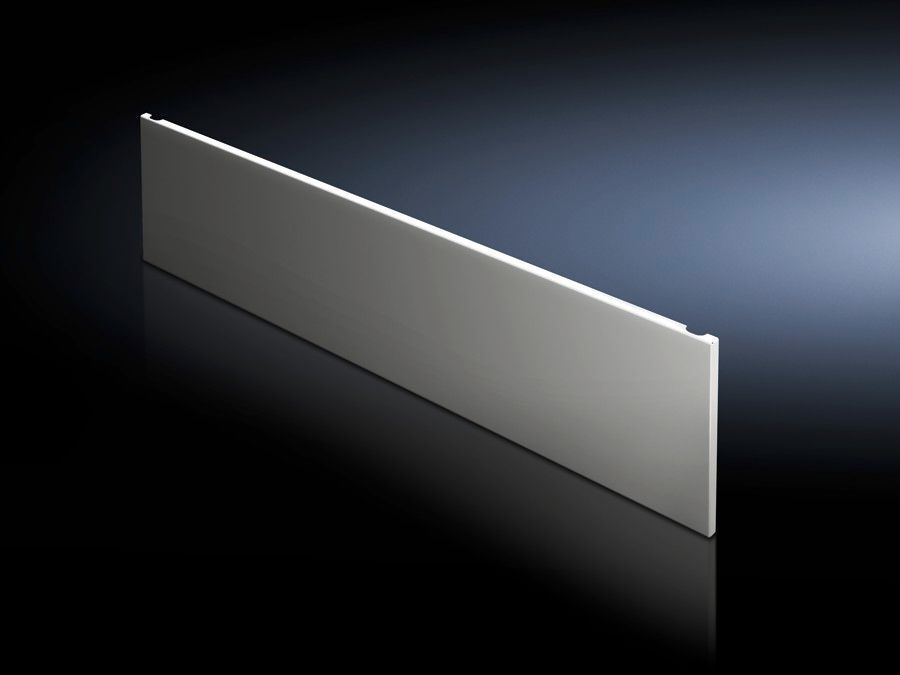

Rittal SV 9672.348 Front Trim Panel - IP54, 800x300mm
Part Number: 9672348
Quick Summary
Rittal SV 9672.348 Front Trim Panel finishes TS enclosures at the bottom for partial-door configurations. Engineers often struggle with exposed edges and uneven seals when doors don’t cover the frame. The part carries IP54 protection and aligns with ETIM EC002525 and ECLASS 8.0 27142423 classifications to streamline procurement and system interoperability. Its 2 mm sheet steel construction with textured RAL 7035 paint delivers durable protection and a clean aesthetic, while the supplied cross member and assembly parts simplify installation and reduce field rework. For manufacturers and integrators, it adds a robust, standards-aligned finishing touch that supports reliable operation in factory environments.
Product Information
Extended Description
9672348 Rittal: SV Front trim panel, for TS, bottom, WH: 800x300 mm, protection category IP 54
Article number
SV 9672.348
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
300 mm
To fit
Width:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
5 kg
Customs tariff number
94039910
EAN
4028177697546
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 800x300 mm, protection category IP 54
Feature: Bottom front trim panel for TS enclosures uses a 800x300 mm footprint and is manufactured from 2 mm sheet steel with a textured paint finish in RAL 7035. Business Impact: Delivers a durable, aesthetically consistent base that protects internal components and maintains seal integrity in harsh environments. Application: Perfect for TS frames in manufacturing lines where a clean, modular bottom finish is required and partial doors are in use. Feature: Front panel is removable from the outside by unscrewing. Business Impact: Reduces maintenance time and field labor since technicians can access fasteners without full enclosure disassembly. Application: Ideal for ongoing process plants and serviceable installations where quick access is critical.Feature: Supplied with cross member and assembly parts; weight approximately 5 kg per pack. Business Impact: Simplifies on-site fabrication and alignment, accelerates installation, lowers labor costs, and ensures consistent assembly across multiple enclosures. Application: Fits standardized TS widths and supports quick replacement during cabinet refurbishments.Feature: IP54 protection rating and color-coding in RAL 7035. Business Impact: Provides ingress protection suitable for moderate dust and water exposure while maintaining uniform color for maintenance and safety marking. Application: Suitable for office-adjacent electronics cabinets and factory floors where appearance and protection matter.Feature: Compatibility with TS enclosures and 800 mm width. Business Impact: Ensures reliable fit, reduces modification needs, and enhances component interoperability within Rittal systems. Application: Install as a bottom trim across compatible TS frames to achieve a consistent, compliant enclosure family.
Get a Quick Quote for a Rittal 9672348
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672348?
Enquire Now
FAQs
The panel is designed to fit TS enclosures and is installed from the outside using the included assembly parts and cross member. It aligns with the 800 mm width and can be unscrewed for removal, enabling quick servicing without removing doors or main frames.
Yes, the trim panel is specified for bottom finishes in TS configurations with partial doors. It maintains a neat edge, supports seal continuity at the base, and helps minimize gaps around the door area for better ingress protection.
The panel uses 2 mm sheet steel with a textured paint finish in RAL 7035, sized 800x300 mm, and weighs about 5 kg per pack. It comes with a cross member and assembly parts for straightforward installation.
The part aligns with ETIM EC002525 and ECLASS 8.0 27142423 classifications, which facilitates cross-system compatibility and improves BOM accuracy alongside the IP54 protection rating.
Using the SV 9672.348 reduces field rework by enabling quick outside-removal access for fasteners, simplifies bottom-edge maintenance, and standardizes enclosure aesthetics, delivering lower servicing time and consistent lifecycle costs.
