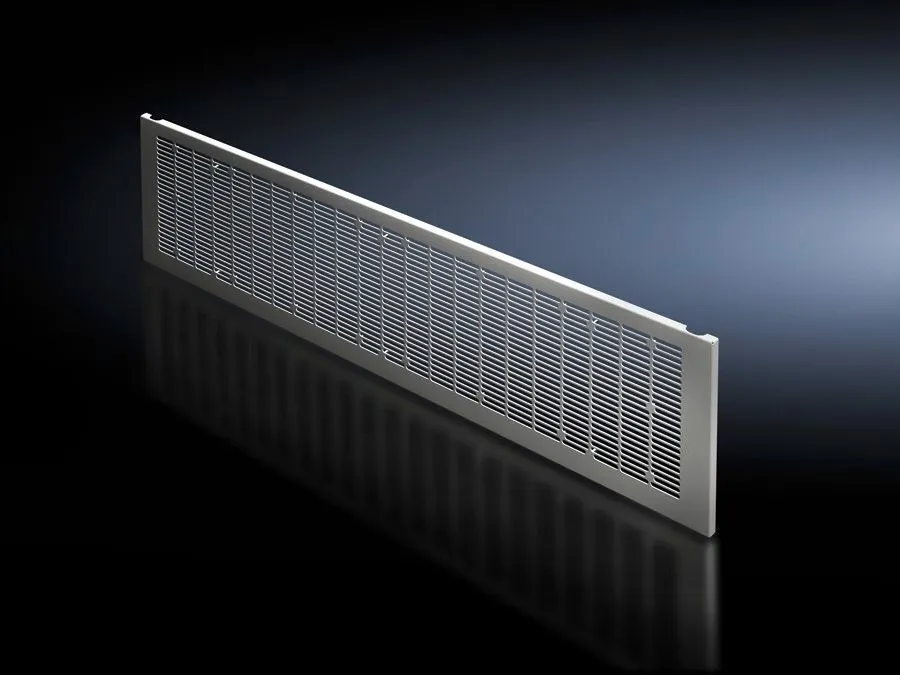

Rittal 9672.356 Front Trim Panel Bottom - IP 2X
Part Number: 9672356
Quick Summary
The 9672.356 Front Trim Panel from Rittal finishes the bottom edge of TS enclosures for a clean, secure look. This addresses common issues like unfinished fronts and dust intrusion that complicate maintenance. Key certifications include IP 2X protection, ETIM EC002525, and ECLASS 27142423, aligning with industry procurement standards. By delivering a robust, color-matched finish with easy outside removal, this panel supports fast installation and consistent branding across multiple enclosures. Use with TS systems to simplify retrofits and improve serviceability while maintaining regulatory compliance and a professional appearance.
Product Information
Extended Description
9672356 Rittal: SV Front trim panel, for TS, bottom, WH: 600x300 mm, protection category IP 2X
Article number
SV 9672.356
Design
With louvres
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
300 mm
Note
When using front trim panels IP 2X, select a roof plate with protection category IP 2X for the top ventilation.
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
3.2 kg
Customs tariff number
94039910
EAN
4028177697560
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 600x300 mm, protection category IP 2X
Feature: Robust material and finish – 2 mm sheet steel with a textured paint finish in RAL 7035. Business Impact: Long-lasting protection against corrosion and wear, maintaining enclosure aesthetics over time. Application: Ideal as the bottom trim for TS front assemblies, ensuring a durable border during daily use. Feature: IP 2X protection – protection class IP 2X. Business Impact: Guards against dust ingress and incidental contact, improving reliability in harsh environments. Application: Recommended when partial doors are used, with the note to pair with an IP 2X roof plate for top ventilation. Feature: Exact fit and predictable assembly – width 600 mm, bottom height 300 mm; weight per pack 3.2 kg; packs 1. Business Impact: Simplifies planning, reduces inventory variance, and speeds mounting. Application: Fits standard TS module widths and supports quick, tool-free external removal when servicing. Feature: Easy removal and access – panels removable from the outside by unscrewing. Business Impact: Facilitates routine maintenance, filter changes, and component access without disassembly. Application: Suitable for frequent front-panel swaps or partial-door configurations. Feature: Stock-keeping and logistics – supply includes cross member and assembly parts; EAN 4028177697560; packaging 1 pc. Business Impact: Streamlines procurement, reduces assembly time, and supports just-in-time inventory. Application: Ideal for contractors and integrators stocking TS enclosure accessories for rapid deployment.
Get a Quick Quote for a Rittal 9672356
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672356?
Enquire Now
FAQs
Yes. The SV 9672.356 is designed to fit TS enclosures with a 600 mm width and 300 mm bottom height. It is intended to complete the modular front design at the bottom when using partial doors, and it can be removed from the outside by unscrewing for quick service access.
The front trim panel measures 600x300 mm, is made from 2 mm sheet steel, and features a textured paint finish in RAL 7035. Each pack contains 1 piece with a weight of approximately 3.2 kg, suitable for straightforward handling during installation.
IP 2X protection provides basic protection against dust ingress and incidental contact, which is suitable for typical indoor enclosure environments. When using IP 2X front trim panels, pair with a roof plate rated IP 2X to maintain ventilation and compliance during maintenance access.
Yes. The SV 9672.356 is designed to integrate with TS series enclosures, including cross members and assembly parts included in the supply. Its bottom-edge finish complements the modular front design and supports consistent branding across installations.
The panel reduces edge wear and dust ingress at the enclosure bottom, shortens maintenance cycles due to easier outside access, and improves aesthetics, which can lower recurring service costs and enhance field reliability, especially in environments with frequent partial-door configurations.
