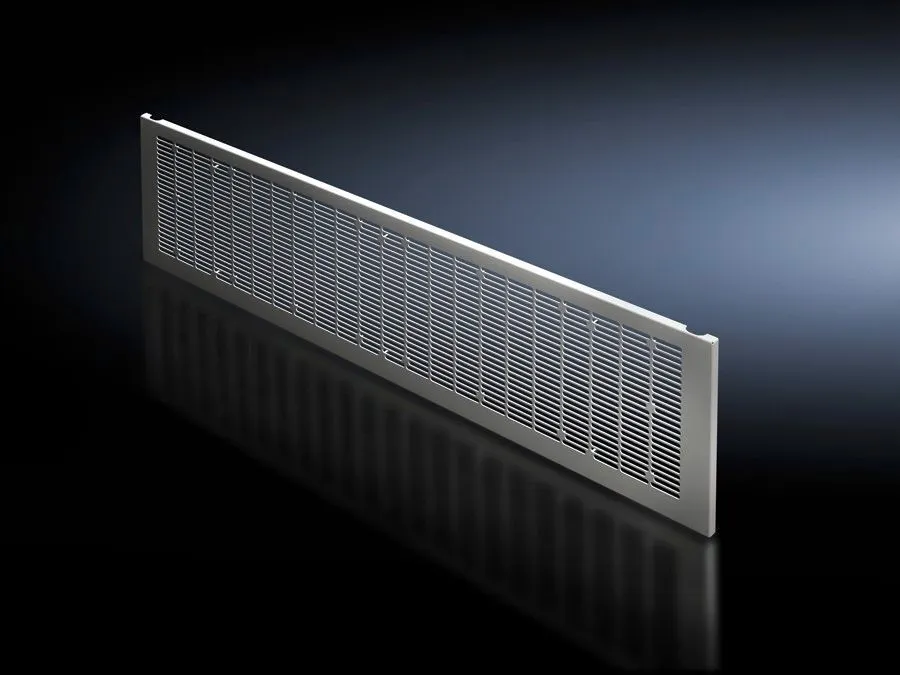

Rittal SV 9672.358 Front Trim Panel for TS Bottom - IP 2X
Part Number: 9672358
Quick Summary
The Rittal SV 9672.358 Front Trim Panel for TS bottom enclosures provides a clean, modular finish to any panel front. This solution addresses gaps and maintenance challenges that arise with partial doors, reducing service interruptions and improving access. Key compliance markers include IP 2X protection for bottom fronts, ETIM 9 EC002525 classification, and ECLASS 8.0 27142423 alignment, which together support interoperability in industrial environments. From a procurement and operations perspective, the 800x300 mm footprint and 2 mm sheet steel with textured RAL 7035 finish translate into durable service life and predictable installation outcomes, while maintaining a cohesive aesthetic across the control cabinet family.
Product Information
Extended Description
9672358 Rittal: SV Front trim panel, for TS, bottom, WH: 800x300 mm, protection category IP 2X
Article number
SV 9672.358
Design
With louvres
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Cross member | Assembly parts
Height front panel bottom
300 mm
Note
When using front trim panels IP 2X, select a roof plate with protection category IP 2X for the top ventilation.
To fit
Width:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
3.92 kg
Customs tariff number
94039910
EAN
4028177697577
ETIM 9
EC002525
ECLASS 8.0
27142423
Product description
SV Front trim panel, for TS, bottom, WH: 800x300 mm, protection category IP 2X
Feature: 2 mm sheet steel construction with a textured paint finish delivers robust protection against minor impacts and wear; Business Impact: extends cabinet service life, reduces repainting needs, lowers long-term maintenance costs; Application: suitable for TS enclosures requiring a durable bottom trim with a professional appearance. Feature: IP 2X protection rating ensures reliable ventilation and ingress protection in semi-enclosed environments; Business Impact: guards critical components while supporting safe operation and compliance; Application: pairs with IP 2X roof plates for top ventilation. Feature: Width-specific fit at 800 mm along with included cross member and assembly parts; Business Impact: reduces field fabrication time and installation errors; Application: simplifies replacement and retrofits in standardized TS frames. Feature: External removal capability by unscrewing front trim panels; Business Impact: minimizes downtime during service and inspections; Application: bottom-front finishing on modular fronts with partial doors. Feature: Packaged as 1 piece per pack with a nominal weight of 3.92 kg; Business Impact: streamlined logistics and predictable handling in warehouse and procurement workflows; Application: easy stocking and quick dispatch for maintenance teams. Feature: Color and finish—RAL 7035 textured paint; Business Impact: consistent cabinet aesthetics and environmental resistance; Application: aligns with corporate color standards across industrial facilities.
Get a Quick Quote for a Rittal 9672358
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9672358?
Enquire Now
FAQs
Yes. The SV 9672.358 is designed for TS enclosures with an 800 mm width and bottom mounting. It ships with a cross member and assembly parts to simplify mounting, and its 300 mm height matches the specified bottom trim footprint, ensuring a precise and secure fit without modifying the cabinet frame.
Key specs include a 2 mm sheet steel construction with a textured paint finish in RAL 7035, an IP 2X protection rating, and dimensions of 800x300 mm. It weighs 3.92 kg per pack and includes cross member and assembly parts, enabling fast commissioning and reliable protection for bottom-front areas.
Yes. This front trim panel is specifically designed to finish the modular front at the bottom when partial doors are used. It can be removed from the outside by unscrewing, which facilitates maintenance and service access without fully disassembling the enclosure.
The product aligns with ETIM 9 EC002525 and ECLASS 8.0 27142423 classifications to ensure interoperability. It carries the GTIN 4028177697577 and a customs tariff number of 94039910, supporting accurate cataloging and shipping alongside ETIM/ECLASS-compliant components.
The 800x300 mm, 2 mm steel bottom trim reduces maintenance downtime by enabling quick access through external unscrewing, while the included cross member and assembly parts shorten installation time. Durable textured finish and IP 2X protection minimize repainting and shield critical components, delivering lower lifecycle costs and faster ROI in frequent-service environments.
