Rittal SV 9673.043 Side Panel - TS System Punchings
Part Number: 9673043
Manufacturer
Rittal
Part number
9673043
Category
Alt Part Number
SV 9673.043
Quick Summary
The Rittal SV 9673.043 side panel is a durable divider for TS-pattern compartments in industrial enclosures. Engineers often struggle with space planning and flexible mounting; this panel provides precise alignment and supports TS accessories for expandable enclosure layouts. The data set lists ETIM EC002525 and ECLASS 27400613 classifications to ensure interoperability; explicit SIL, CE, or IP ratings are not shown and should be verified in the datasheet. Constructed from 1.5 mm zinc-plated sheet steel and designed for 300 mm height and 400 mm depth, it offers corrosion resistance and a robust mounting base. Together, these features reduce assembly time, minimize parts variety, and enable scalable busbar and divider configurations for efficient cabinet modernization.
Product Information
Extended Description

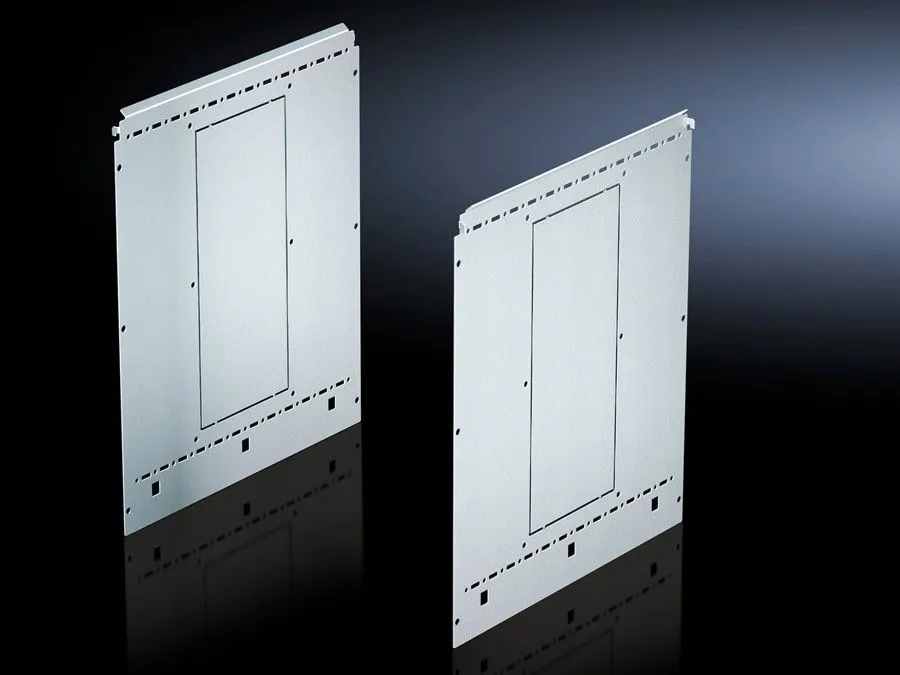

9673043 Rittal: SV Compartment side panel module, H: 300 mm, for D: 400 mm
Article number
SV 9673.043
Product description
Side divider panel for compartments, for locating into the TS pitch pattern. Prepared for the location of mounting brackets for horizontal compartment dividers or mounting plates. Two TS system punchings allow the use of additional TS accessories. The side panel modules for reduced compartment depth and an auxiliary construction using TS punched rails 17 x 17 mm can be used to provide a separate enclosure space in the side panel area, e.g. for the provision of a busbar system.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
For compartment depth
400 mm
Dimensions
Height: 300 mm
Packs of
2 pc(s).
Weight/pack
2.54 kg
Customs tariff number
73269098
EAN
4028177704770
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel module, H: 300 mm, for D: 400 mm
Material and finish: The side panel uses 1.5 mm sheet steel with a zinc-plated finish, delivering strong corrosion resistance in harsh environments. This translates to longer service life and lower maintenance costs in production facilities and switchgear rooms. Height and depth fit: With a height of 300 mm and a depth of 400 mm, it aligns precisely with TS-pattern enclosures, enabling predictable, repeatable assemblies and faster project turnover. TS punchings and mounting freedom: Two TS system punchings support mounting brackets for horizontal dividers or mounting plates, and allow optional TS accessories; this yields flexible zoning, easier busbar routing, and cleaner cable management in compact spaces. Pack and weight efficiency: Supplied in packs of two, each at 2.54 kg, this design minimizes on-site handling risk while preserving installation speed in bulk deployments. Compatibility and installation: The module is designed for TS 17 x 17 mm rails, simplifying retrofit projects and reducing the need for alternative hardware, which lowers total cost of ownership. Industry context: Real-world enclosure projects benefit from standardized panels that support modular expansion, improving repeatability and serviceability across multiple cabinet lines.
Get a Quick Quote for a Rittal 9673043
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673043?
Enquire Now
FAQs
SV 9673.043 is designed to fit TS pattern enclosures and uses TS 17x17 mm rails for mounting. The two included TS punchings support brackets for horizontal divisors or mounting plates, enabling rapid integration into existing TS-based cabinet systems without additional adapters.
The panel measures 300 mm in height and is intended for 400 mm compartment depth. It is constructed from 1.5 mm sheet steel and finished with zinc plating, delivering robust mechanical strength and corrosion resistance suitable for industrial environments.
Yes. The panel is designed with mounting provisions and TS compatibility to facilitate the separation of zones and the provision of busbar spaces inside the side panel area, supporting clean electrical routing and organized cable management.
The product data references ETIM 9 EC002525 and ECLASS 8.0 27400613 for interoperability. Explicit SIL, CE, or IP ratings are not listed in the provided data, so regulatory compliance should be confirmed via the official datasheet or manufacturer.
The zinc-plated 1.5 mm steel construction provides durable corrosion resistance, reducing maintenance needs. Quick TS-based mounting lowers installation labor, supports modular expansion, and minimizes parts variance, contributing to lower total cost of ownership over cabinet lifecycles.
