Rittal SV 9673.051 Side Panel - TS Pitch Pattern
Part Number: 9673051
Manufacturer
Rittal
Part number
9673051
Category
Alt Part Number
SV 9673.051
Quick Summary
The Rittal SV 9673.051 Side Panel is a side divider for TS-pattern compartments in electrical enclosures. It simplifies mounting and partitioning in TS-system installations, reducing custom fabrication challenges in tight panels. Engineers often struggle with aligning brackets, rails, and adapters when space is limited; this panel provides two TS punchings and a modular base for adding horizontal dividers or mounting plates. The product carries CE marking and aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, while IP or SIL ratings are not specified in this data. By delivering a standardized footprint with included assembly parts, it accelerates installation and supports scalable busbar or enclosure configurations.
Product Information
Extended Description
9673051 Rittal: SV Compartment side panel module, H: 100 mm, for D: 425 mm
Article number
SV 9673.051
Product description

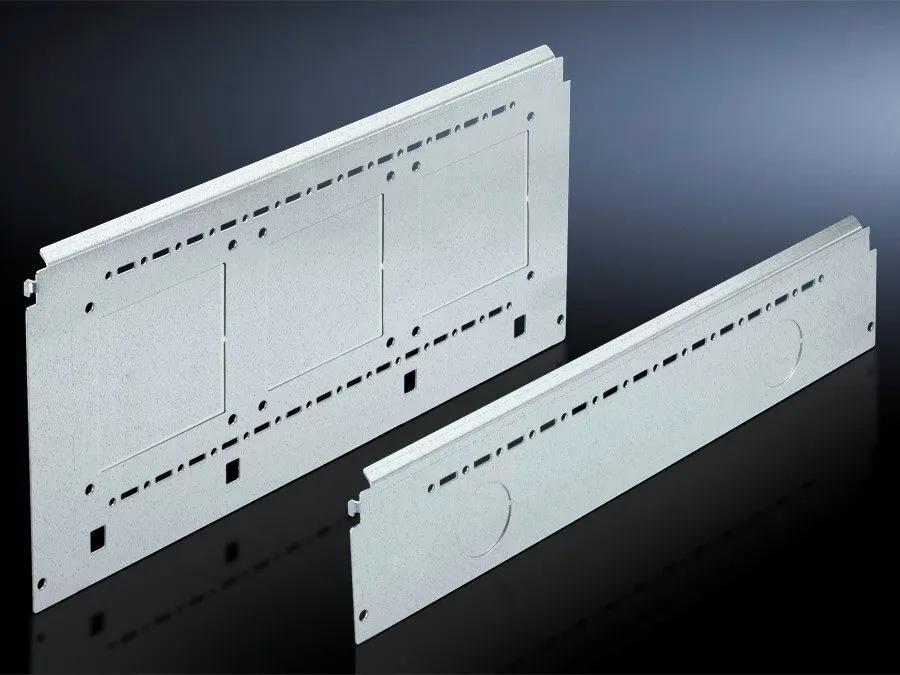

Side divider panel for compartments, for locating into the TS pitch pattern. Prepared for the location of mounting brackets for horizontal compartment dividers or mounting plates. Two TS system punchings allow the use of additional TS accessories. The side panel modules for reduced compartment depth and an auxiliary construction using TS punched rails 17 x 17 mm can be used to provide a separate enclosure space in the side panel area, e.g. for the provision of a busbar system.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
For compartment depth
425 mm
Dimensions
Height: 100 mm
Packs of
6 pc(s).
Weight/pack
2.79 kg
Customs tariff number
73269098
EAN
4028177543508
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel module, H: 100 mm, for D: 425 mm
Feature → Business Impact → Application: TS pattern compatibility with two TS punchings lets you locate mounting brackets for horizontal dividers or mounting plates without bespoke fabrication. This speeds up assembly and reduces risk of misalignment in dense TS-system enclosures, supporting scalable partitioning for control panels and power distribution assemblies. Feature → Business Impact → Application: 1.5 mm sheet steel with a zinc-plated surface provides durable, corrosion-resistant panels suitable for harsh environments, reducing maintenance costs and downtime in industrial facilities. Feature → Business Impact → Application: Pack of six panels (2.79 kg per pack) simplifies procurement, improves inventory control, and enables rapid multi-panel installations across projects. Feature → Business Impact → Application: For compartment depth of 425 mm, the side panel ensures consistent interior space, minimizing rework when routing busbars and accessories. Feature → Business Impact → Application: TS punched rails 17 x 17 mm compatibility enables straightforward busbar system integration, supporting modular expansion and quick retrofits in evolving enclosure layouts. Feature → Business Impact → Application: Included assembly parts eliminate the need for additional hardware searches, shortening lead times and reducing on-site errors during installation.
