Rittal SV 9673.069 Compartment Side Panel Module - Zinc-plated, Maxi-PLS 1600 fit
Part Number: 9673069
Manufacturer
Rittal
Part number
9673069
Category
Alt Part Number
SV 9673.069
Quick Summary
Rittal SV 9673.069 is a compartment side panel module for Maxi-PLS cable connections in industrial enclosures. Engineers often struggle with space, mounting accuracy, and cable routing in crowded cabinets. It aligns with ETIM 7.0 EC002525 and ECLASS 8.0 27400613 data standards, with a zinc-plated sheet steel finish that offers reliable corrosion resistance in harsh environments. This panel is designed to integrate seamlessly with Maxi-PLS busbar systems, simplifying installation and reducing setup time. By delivering a stable mounting plane and clear cable paths, it supports faster commissioning, easier maintenance, and longer service life, while keeping procurement and installation costs predictable for teams across engineering, manufacturing, and facilities.
Product Information
Extended Description

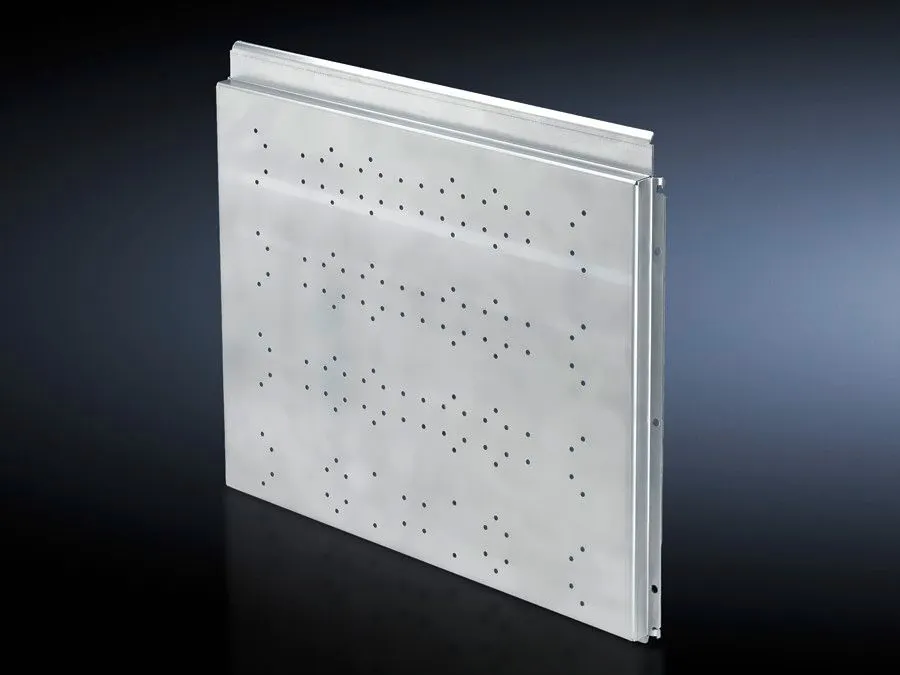

9673069 Rittal: SV Compartment side panel module, H: 450 mm, for D: 600 mm
Article number
SV 9673.069
Product description
For mounting a Maxi-PLS cable connection bar system
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit busbar system
Maxi-PLS 1600
Dimensions
Height: 450 mm
To fit
Depth: = 600 mm
Packs of
2 pc(s).
Weight/pack
8.89 kg
Customs tariff number
94039910
EAN
4028177575813
ETIM 7.0
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel module, H: 450 mm, for D: 600 mm
Feature: Maxi-PLS 1600 compatibility ensures a precise fit and straightforward integration. Business Impact: Reduces rework, shortens installation time, and improves project margins. Application: Ideal for new builds or retrofits in 19" enclosures where Maxi-PLS bars are deployed for high-density power distribution. Long-tail keywords: Maxi-PLS busbar system, compartment side panel, enclosure power distribution. Feature: 2 mm sheet steel with zinc-plated surface provides durable corrosion resistance. Business Impact: Extends service life in humid or demanding environments, lowering maintenance cost. Application: Suitable for factory floors, switchgear cabinets, and data-center enclosures requiring robust hardware. Long-tail keywords: zinc-plated steel, 2 mm thickness, corrosion resistance. Feature: H 450 mm and D 600 mm dimensions support consistent mounting and cable routing. Business Impact: Improves space utilization and accessibility for wiring, aiding faster fault diagnosis. Application: Works across a range of Rittal enclosures and Maxi-PLS configurations. Long-tail keywords: 450 mm height, 600 mm depth, cable routing. Feature: Pack composition and weight per pack (2 pcs, 8.89 kg) simplify logistics and procurement. Business Impact: Streamlines stocking and reduces freight costs through predictable packaging. Application: Fits standard project BOMs and procurement workflows. Long-tail keywords: packs of 2, weight per pack, packaging efficiency. Feature: Included assembly parts support quick installation without additional sourcing. Business Impact: Cuts downtime during assembly and ensures consistent mounting quality. Application: Ideal for service crews and OEMs deploying Maxi-PLS bars. Long-tail keywords: assembly parts included, fast installation, OEM-ready. Conceptual context: This module complements Maxi-PLS busbar systems and supports reliable, compliant enclosure installations with an emphasis on installation efficiency and long-term durability.
Get a Quick Quote for a Rittal 9673069
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673069?
Enquire Now
FAQs
Begin by confirming Maxi-PLS 1600 compatibility and enclosure mounting points. Align the panel with the busbar system, attach the included assembly parts, secure fasteners per torque specs, and verify that cable paths are clear. Finally, perform a functional check to ensure busbars are firmly supported and cables are routed without interference.
SV 9673.069 is designed to fit Maxi-PLS 1600 specifically. For non-Maxi-PLS systems, verify dimensional fit (_height 450 mm, depth 600 mm_) and mounting provisions; consultation with the enclosure manufacturer or a systems integrator is recommended to avoid fitment issues.
The side panel is made from 2 mm sheet steel with a zinc-plated finish, delivering robust corrosion resistance and long service life in demanding settings such as manufacturing floors and control cabinets exposed to humidity or mild chemical exposure.
The product ships in packs of two, with a weight of 8.89 kg per pack. The two-piece packaging supports efficient warehousing and freight planning, helping to optimize project budgets and delivery timelines.
It provides a reliable mounting plane for Maxi-PLS cable connections, improves cable routing and protection, reduces installation time, and supports standardized data and procurement through ETIM and ECLASS classifications. This translates to lower downtime, predictable maintenance, and cost-efficient commissioning.
