Rittal 9673089 SV Side Panel Module - Maxi-PLS 1600
Part Number: 9673089
Manufacturer
Rittal
Part number
9673089
Category
Alt Part Number
SV 9673.089
Quick Summary
Rittal 9673089 SV side panel module enables Maxi-PLS cable connections in compact enclosures. Engineers often face mounting challenges in tight spaces, risking misalignment, longer setup times, and inconsistent wiring. Certification details like CE, SIL, or IP ratings are not listed here—verify compliance for your installation before procurement. Designed for Maxi-PLS 1600 compatibility, this module uses a 2 mm sheet steel base with a zinc-plated finish, and measures 450 mm in height by 800 mm in depth; it supports fast, repeatable installations for panel builders and OEMs seeking reliable enclosure integrity.
Product Information
Extended Description

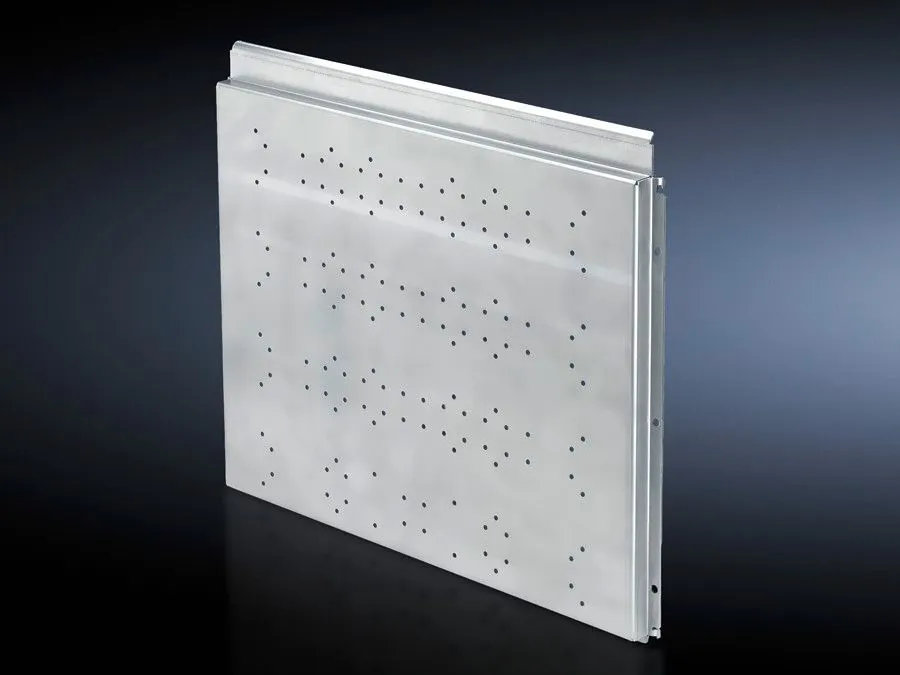

9673089 Rittal: SV Compartment side panel module, H: 450 mm, for D: 800 mm
Article number
SV 9673.089
Product description
For mounting a Maxi-PLS cable connection bar system
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit busbar system
Maxi-PLS 1600
Dimensions
Height: 450 mm
To fit
Depth: = 800 mm
Packs of
2 pc(s).
Weight/pack
12 kg
Customs tariff number
73269098
EAN
4028177575875
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel module, H: 450 mm, for D: 800 mm
Feature: Maxi-PLS 1600 compatibility with a 450 mm by 800 mm footprint. Business Impact: Streamlines busbar mounting, reduces need for adapters, and shortens commissioning time. Application: Ideal for compact power distribution enclosures that require clean cable routing without structural rework. Feature: 2 mm sheet steel construction with zinc-plated surface. Business Impact: Improves corrosion resistance and long-term reliability in harsh industrial environments, lowering maintenance costs. Application: Suitable for manufacturing floors, automation cabinets, and sensor/actuator panels. Feature: Pack of two panels at 12 kg per pack. Business Impact: Eases handling, reduces logistics risk, and supports staged installation or replacement without downtime. Application: Two-pack shipments match common project lot sizes for OEM and integrator workflows. Feature: Supply includes assembly parts. Business Impact: Simplifies procurement, accelerates on-site assembly, and minimizes vendor coordination. Application: Quickly deployable in field installations with Maxi-PLS 1600 busbars. Feature: Comprehensive part data (EAN, ETIM, ECLASS, tariff). Business Impact: Improves cataloging, purchasing accuracy, and cross-system compatibility. Application: Facilitates integration with ERP and procurement systems for frequent enclosure upgrades.
Get a Quick Quote for a Rittal 9673089
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673089?
Enquire Now
FAQs
To install, align the panel with the enclosure’s mounting rails, secure with the provided assembly parts, and connect the Maxi-PLS 1600 busbar as per the enclosure’s wiring diagram. Verification of correct alignment before tightening fasteners prevents misalignment and reduces rework. Ensure work area is clean and that the panel is supported during the mounting process to avoid bending a 2 mm steel panel.
The panel uses 2 mm sheet steel with a zinc-plated finish for corrosion resistance. It measures 450 mm in height and 800 mm in depth and is designed to fit Maxi-PLS 1600 busbars. Each pack contains two panels, with a weight of 12 kg per pack, supporting robust field installation and straightforward handling.
Yes, the SV 9673.089 is specified to fit enclosures designed for Maxi-PLS 1600 busbars and depth 800 mm. For best results, verify enclosure interior dimensions, mounting hole patterns, and available clearance around the busbar region before ordering.
Certified details such as CE, SIL, or IP ratings are not listed in the provided data. The product includes ETIM 9 EC002525, ECLASS 8.0 27400613, and standard identifiers like EAN 4028177575875. Confirm project-specific compliance with the supplier prior to procurement.
The included assembly parts eliminate the need to source separate fasteners or connectors, reducing procurement steps and on-site logistics. This leads to faster mounting, fewer delays, and a lower total cost of ownership by minimizing field modification work and rework on Maxi-PLS busbar installations.
