Rittal 9673404 Power Mgmt & Dist - Mounting Bracket
Part Number: 9673404
Manufacturer
Rittal
Part number
9673404
Category
Alt Part Number
SV 9673.404
Quick Summary
Rittal 9673404 SV mounting bracket is a slide-in mounting solution for compartment dividers within TS frames. It streamlines divider installation, reducing misalignment and retrofit effort in control cabinet upgrades. The design uses pre-machined mounting openings for rapid, secure attachment, preserving frame integrity and serviceability. Certification details are not listed in the provided data; confirm CE/IP/SIL markings on official specifications. With 1.5 mm zinc-plated sheet steel, this bracket offers robust durability for harsh industrial environments. By enabling modular divider configurations, it delivers business value through faster assembly, easier maintenance, and improved layout flexibility in Power Management & Distribution installations.
Product Information
Extended Description

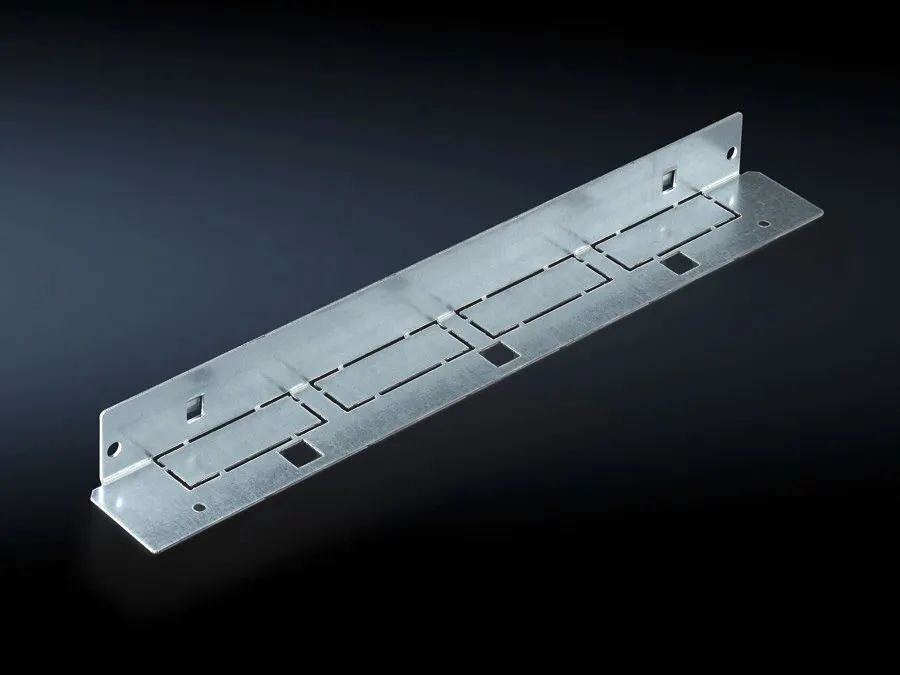

9673404 Rittal: SV Mounting bracket, L: 352 mm, for compartment divider
Article number
SV 9673.404
Product description
The mounting bracket may be attached to a TS frame, to a side panel module or between a frame section and an auxiliary construction. Pre-machined mounting openings allow slide-in attachment of compartment dividers.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
For compartment depth
400 mm
Length
352 mm
Dimensions
Length: 352 mm
Packs of
8 pc(s).
Weight/pack
2.344 kg
Customs tariff number
73182900
EAN
4028177707412
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Mounting bracket, L: 352 mm, for compartment divider
Feature → Business Impact → Application: Mounting flexibility enables the SV 9673.404 to attach directly to a TS frame, a side panel module, or between frame sections. This reduces fabrication steps and minimizes risk of misalignment during assembly, resulting in faster installations and fewer field adjustments. Application: ideal for reconfigurable control cabinets and distribution enclosures in manufacturing lines, where quick changes to compartment layouts are common. Feature → Business Impact → Application: The 1.5 mm sheet steel with zinc-plated finish delivers corrosion resistance and long service life in demanding environments, reducing maintenance downtime. Application: suitable for industrial automation panels and outdoor-rated enclosures where durability matters. Feature → Business Impact → Application: For compartment depth 400 mm, the bracket guarantees a precise, secure fit within standard TS frame configurations, enabling reliable divider support. Application: modular cabinet systems across automation and power distribution stations. Feature → Business Impact → Application: Each pack contains 8 pieces, weighing 2.344 kg per pack, enabling bulk procurement, simplified inventory, and cost-effective stocking for OEMs and maintenance teams. Application: large-scale rollouts and retrofit programs. Feature → Business Impact → Application: Supplied with assembly parts, reducing sourcing steps and accelerating retrofit projects. Application: quick upgrades and scalable cabinet design across processing lines. Feature → Business Impact → Application: The mounting bracket is compatible with TS frames, side panels, and between-frame installations, providing installation versatility and reduced engineering time. Application: flexible configurations for future-proof control cabinets and modular distribution enclosures.
Get a Quick Quote for a Rittal 9673404
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673404?
Enquire Now
FAQs
Yes. The SV 9673.404 is designed to attach to a TS frame, to a side panel module, or between frame sections, with pre-machined mounting openings for slide-in divider installation. This compatibility streamlines retrofits, reduces equipment downtime, and supports modular cabinet layouts in automation and distribution enclosures.
Key specs include a length of 352 mm, for a compartment depth of 400 mm, and construction from 1.5 mm sheet steel with a zinc-plated surface. The product is supplied in packs of eight and weighs 2.344 kg per pack, with the EAN 4028177707412 and tariff code 73182900 for customs processing.
The pre-machined mounting openings and slide-in divider attachment minimize manual drilling and alignment checks, reducing installation time and potential misalignment. Engineers benefit from faster commissioning, predictable divider positioning, and improved consistency across multiple cabinets, which translates into lower labor costs and more reliable cabinet performance.
The provided data does not explicitly list SIL, CE, or IP ratings for this bracket. Users should consult the manufacturer’s official specifications or data sheets to confirm regulatory markings, compliance standards, and any environment-specific certifications relevant to their installation site.
By enabling modular divider configurations and using assembly parts supplied with the bracket, retrofit projects experience shorter installation times, fewer field parts, and predictable layouts. This reduces downtime, lowers labor costs, and simplifies future upgrades, delivering tangible maintenance efficiency and scalable cabinet design for evolving automation needs.
