Rittal SV 9673.406 Mounting Bracket - Zinc-plated, TS Frames
Part Number: 9673406
Manufacturer
Rittal
Part number
9673406
Category
Alt Part Number
SV 9673.406
Quick Summary
SV mounting bracket for TS frames enables quick, secure attachment of compartment dividers in enclosures. Customers often struggle with misaligned panels and slow installs when using generic brackets. This part aligns with ETIM EC002525 and ECLASS 27400613 for reliable procurement data and traceability. Designed for scalable rack solutions and compatibility with 600 mm deep compartments, it supports efficient assembly and long-term durability.
Product Information
Extended Description

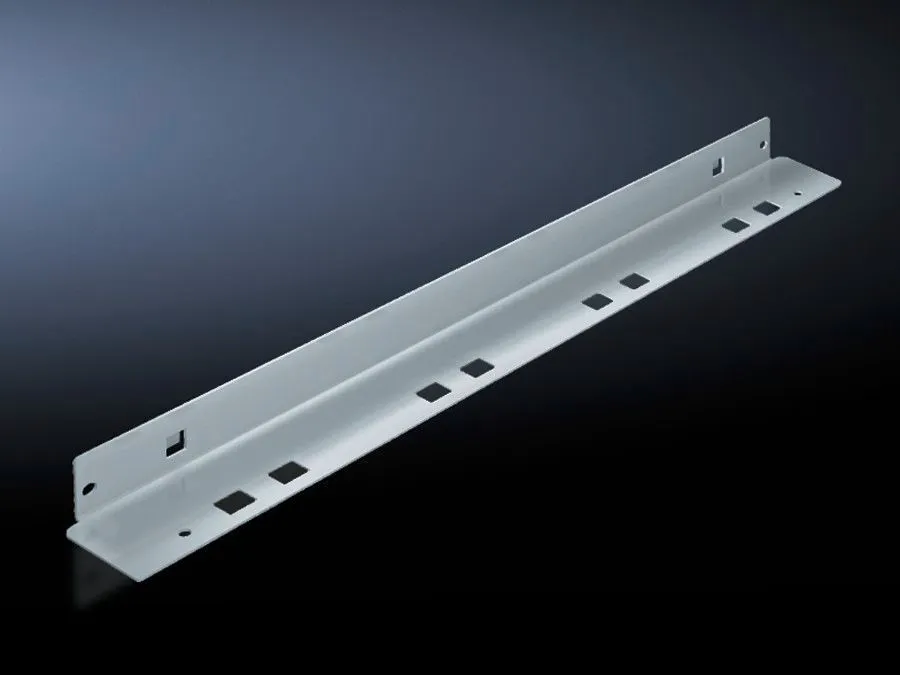

9673406 Rittal: SV Mounting bracket, L: 552 mm, for compartment divider
Article number
SV 9673.406
Product description
The mounting bracket may be attached to a TS frame, to a side panel module or between a frame section and an auxiliary construction. Pre-machined mounting openings allow slide-in attachment of compartment dividers.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
For compartment depth
600 mm
Length
552 mm
Dimensions
Length: 552 mm
Packs of
8 pc(s).
Weight/pack
3.6 kg
Customs tariff number
73269098
EAN
4028177544444
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Mounting bracket, L: 552 mm, for compartment divider
Feature: 552 mm length provides precise fit within TS frames and side panel modules. Business Impact: Reduces need for improvisation during installation, shortening project timelines and lowering labor costs. Application: Suitable for 600 mm depth compartments to maintain consistent divider spacing across enclosures. Feature: Material is sheet steel, 1.5 mm with zinc-plated surface. Business Impact: Enhances corrosion resistance and long-term reliability in control cabinet environments. Application: Ideal for harsh or damp settings where enclosure longevity matters. Feature: Pre-machined mounting openings enable slide-in attachment of compartment dividers. Business Impact: Speeds up assembly, minimizes misalignment, and reduces drilling requirements. Application: Works with standard divider systems across TS frames. Feature: Supply includes assembly parts; Pack of 8; Weight per pack 3.6 kg. Business Impact: Simplifies bulk procurement and reduces handling steps on site. Application: Facilitates rapid replenishment for ongoing projects or maintenance. Feature: For compartment depth of 600 mm; Compatibility with TS frames. Business Impact: Ensures consistent installation geometry across a modular enclosure family. Application: Supports scalable configurations and future reconfiguration with minimal rework. Objection handling: Pre-machined openings and standardized dimensions minimize risk of fitment issues, while zinc-plating offers durable protection against corrosion in industrial environments.
Get a Quick Quote for a Rittal 9673406
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673406?
Enquire Now
FAQs
Begin by aligning the pre-machined mounting openings on the SV 9673.406 with the corresponding TS frame slots. Slide in the divider and secure using supplied assembly parts. The 552 mm length fits standard TS frame configurations, ensuring precise alignment and reducing the risk of misfit or rework. This approach minimizes tool use and accelerates installation, especially in multi-rack deployments.
The bracket is made from 1.5 mm sheet steel with a zinc-plated finish, delivering robust mechanical strength and corrosion resistance suitable for industrial environments. This combination helps maintain divider alignment over time, reduces maintenance frequency, and supports longer service life in control cabinets and electrical enclosures.
Yes. The product is specifically designed for 600 mm deep compartments and is compatible with TS frames and side panel modules. The 552 mm length ensures proper relay shelf or divider clearance, enabling consistent spacing and easy reconfiguration when enclosure layouts change, which is valuable for scalable projects.
The SV 9673.406 aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 data models, supporting interoperability and accurate procurement data. While the data set does not explicitly list CE or IP certifications, these classifications help with supplier data quality and compatibility checks during sourcing.
Using the SV 9673.406 reduces installation time by eliminating custom drilling and misalignment corrections. The pre-machined openings, standardized 552 mm length, and zinc-plated durability translate to lower labor costs, fewer field adjustments, and faster project completion, especially on multi-rack deployments where consistent divider mounting is repeated across frames.
