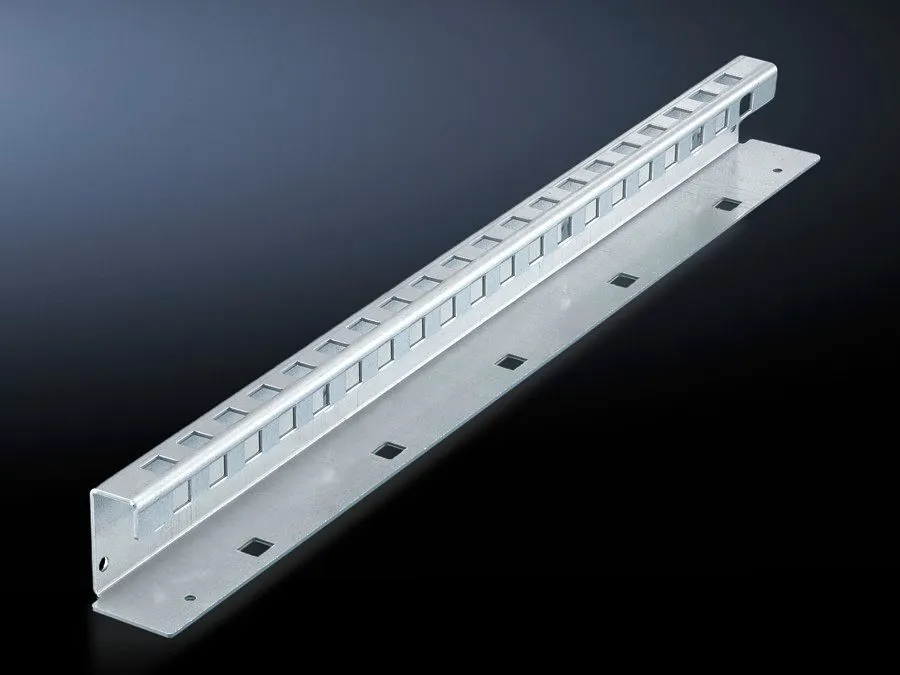

Rittal SV 9673.428 Mounting Bracket - 800 mm Compartments
Part Number: 9673428
Manufacturer
Rittal
Part number
9673428
Category
Alt Part Number
SV 9673.428
Quick Summary
The Rittal SV 9673.428 mounting bracket secures side panels and enables slide-in space dividers in industrial enclosures. Without pre-machined openings, installation can be time-consuming and prone to misalignment during compartment planning. Note: The provided data does not specify CE, SIL, or IP certifications; verify with the supplier for your regulatory needs. The 752 mm length and zinc-plated sheet steel construction deliver durable, reliable support for 800 mm deep compartments. Designed to accept an optional air circuit-breaker rail on the upper level, it simplifies modernization projects and preserves modularity. This bracket also ships with assembly parts, reducing field BOM complexity and improving installation efficiency, delivering tangible business value in panel wiring and power distribution tasks.
Product Information
Extended Description
9673428 Rittal: SV Mounting bracket, L: 752 mm, for compartment divider, and air circuit-breaker support rail
Article number
SV 9673.428
Product description
The mounting bracket is secured to the side panel module. Pre-machined mounting openings allow slide-in attachment of functional space dividers. The air circuit-breaker support bar may be attached to the upper level.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
For compartment depth
800 mm
Length
752 mm
Dimensions
Length: 752 mm
Packs of
2 pc(s).
Weight/pack
2.692 kg
Customs tariff number
73269098
EAN
4028177574496
ETIM 7.0
EC001900
ECLASS 8.0
27400613
Product description
SV Mounting bracket, L: 752 mm, for compartment divider, and air circuit-breaker support rail
Feature: Pre-machined mounting openings allow slide-in attachment of space dividers. Business Impact: Reduces installation time and ensures precise alignment, enabling faster project turnarounds. Application: Ideal for side panel modules in modular enclosure systems where space-dividers must be added without custom machining. Long-tail keywords: pre-machined openings, slide-in dividers, compartment divider compatibility. Feature: Sheet steel, 2 mm with zinc-plated finish. Business Impact: Delivers durable, corrosion-resistant support for harsh industrial environments, increasing service life and reducing maintenance. Application: Suitable for power management enclosures exposed to dust and moisture. Long-tail keywords: zinc-plated mounting bracket, 2 mm sheet steel, durable enclosure hardware. Feature: Length 752 mm and compatibility with 800 mm compartments. Business Impact: Ensures precise fit and alignment with standard enclosure depths, minimizing rework. Application: Supports enclosure layouts where 800 mm deep spaces are common. Long-tail keywords: 752 mm length, 800 mm compartment depth, enclosure compatibility. Feature: Includes assembly parts. Business Impact: Speeds procurement and on-site assembly, reducing downtime and errors. Application: Streamlines installation workflows for panel builders. Long-tail keywords: assembly parts included, quick-install hardware, on-site assembly efficiency. Feature: Pack of 2 with weight 2.692 kg per pack. Business Impact: Manageable handling by technicians, enabling safer lifts and staged installation. Application: Suitable for modular rack builds in plant environments. Long-tail keywords: weight per pack, two-pack mounting bracket, handling considerations. Feature: ETIM 7.0 EC001900 and ECLASS 8.0 27400613 alignment. Business Impact: Improves cataloging and ERP integration, reducing miscataloged components. Application: Enables seamless data exchange with MRP/ERP systems. Long-tail keywords: ETIM 7.0 EC001900, ECLASS 8.0 27400613, cataloging compatibility.
Get a Quick Quote for a Rittal 9673428
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673428?
Enquire Now
FAQs
To install, align the bracket with the pre-machined mounting openings on the side panel module, fasten securely, and then slide in the space dividers. If using the air circuit-breaker rail, attach it to the upper level as specified. The included assembly parts simplify on-site assembly and reduce field errors.
Yes. The bracket is designed for 800 mm compartment depth and provides a 752 mm mounting length to fit standard enclosure configurations. It supports compartment dividers and the upper-level air circuit-breaker rail, ensuring a clean, modular layout.
The bracket is made from sheet steel with a 2 mm thickness and a zinc-plated surface finish, delivering durability and corrosion resistance suitable for industrial environments. Each pack contains two brackets, with a weight of 2.692 kg per pack.
Yes. The SV 9673.428 mounting bracket allows the air circuit-breaker rail to be attached to the upper level, supporting modular enclosure designs and efficient space management for protection devices.
It reduces installation time through pre-machined openings and slide-in dividers, improves alignment accuracy, and simplifies BOM management by including assembly parts. The durable zinc-plated steel and compatible 800 mm depth design enable scalable, reliable power management in industrial settings.
