Rittal SV 9673.436 Compartment divider - Form separation
Part Number: 9673436
Manufacturer
Rittal
Part number
9673436
Category
Alt Part Number
SV 9673.436
Quick Summary
SV 9673.436 compartment divider is designed to horizontally separate compartments with vertical busbars in TS enclosures. This solution helps engineers maintain clean, safe busbar layouts while preserving access to cables and components. While implementation can be straightforward, many teams struggle with getting the right Form separation without sacrificing airflow or modularity. This product aligns with widely adopted standards and classifications, including ETIM 9 EC002525 and ECLASS 8.0 27400613, ensuring compatibility with downstream procurement systems. By accommodating a 600 mm compartment depth and a 400 mm TS width, it supports scalable cabinet designs. For project value, the divider offers reliable material performance—sheet steel 1.25 mm, zinc-plated finish—reducing maintenance costs and boosting uptime in power management and distribution cabinets.
Product Information
Extended Description

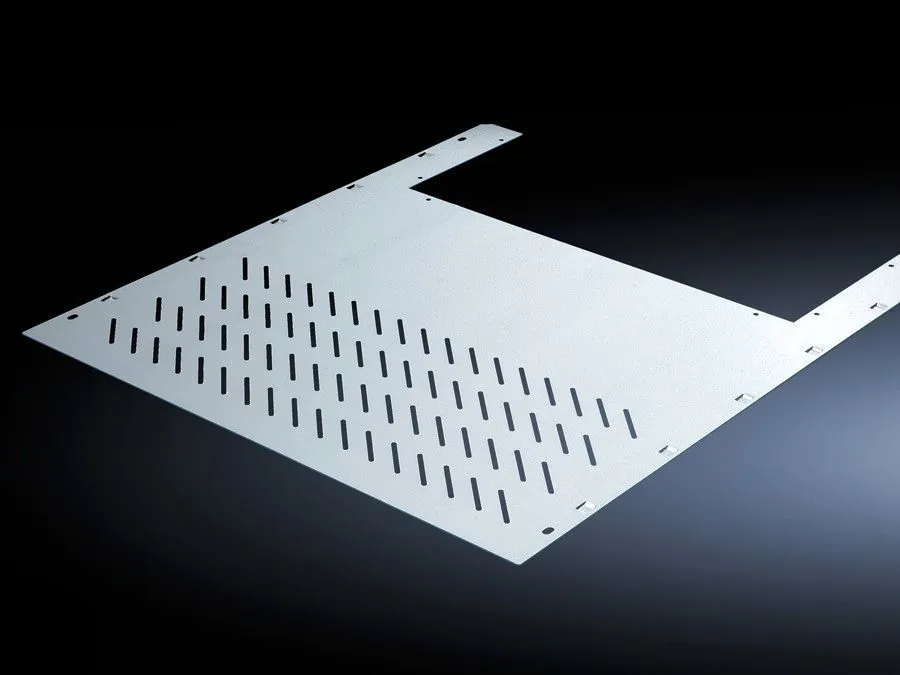

9673436 Rittal: SV Compartment divider, WT: 306x588 mm, for TS (W: 400 mm), with busbar gland
Article number
SV 9673.436
Design
With louvres
Product description
For the horizontal separation of compartments with vertical busbars. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
Mounting cut-out
Width:212 mm | Depth:201 mm
For compartment depth
600 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 306 mm | Depth: 588 mm
To fit
Width: = 400 mm
Packs of
4 pc(s).
Weight/pack
5.3 kg
Customs tariff number
73269098
EAN
4028177570887
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 306x588 mm, for TS (W: 400 mm), with busbar gland
Feature: Material and finish—1.25 mm sheet steel, zinc-plated. Business Impact: Durable, corrosion-resistant components that withstand industrial environments. Application: SV 9673.436 divider in TS enclosures provides long service life with minimal maintenance. Feature: Louvres design. Business Impact: Improved airflow around busbars, aiding heat dissipation and regulatory clearance. Application: Supports reliable operation in power distribution cabinets and control panels. Feature: Precise dimensions and mounting cut-out. Business Impact: Ensures a secure, vibration-resistant fit within a 400 mm TS width and 600 mm compartment depth, reducing installation errors. Application: Install with two mounting brackets per divider as specified. Feature: Pack sizing and weight. Business Impact: Efficient logistics and inventory management with 4 pieces per pack and 5.3 kg per pack, enabling predictable on-site handling. Application: Streamlines procurement planning for large-scale cabinet projects. Feature: Standards and compatibility. Business Impact: Aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613, simplifying data-driven purchasing and cross-compatibility with other Rittal components. Application: Integrates smoothly into existing control cabinet architectures for Form separation needs.
