Rittal 9673438 SV Compartment divider - With busbar gland
Part Number: 9673438
Manufacturer
Rittal
Part number
9673438
Category
Alt Part Number
SV 9673.438
Quick Summary
Rittal SV Compartment divider is designed to horizontally separate compartments with vertical busbars in switchgear and control gear enclosures. This helps prevent electrical cross-talk in dense panel layouts and simplifies maintenance by clearly delineating functional zones. The data supports ETIM and ECLASS classifications, aiding procurement and parts matching, while the zinc-plated steel offers durability in rack environments. Note that the supplied data does not list CE, IP, or SIL certifications; consult the official datasheet for compliance specifics. In practice, this divider enables scalable Form separation in Form 3 or 4 configurations, while its busbar gland supports reliable busbar routing and clean cable management, aligning with TS enclosure standards and mounting requirements.
Product Information
Extended Description

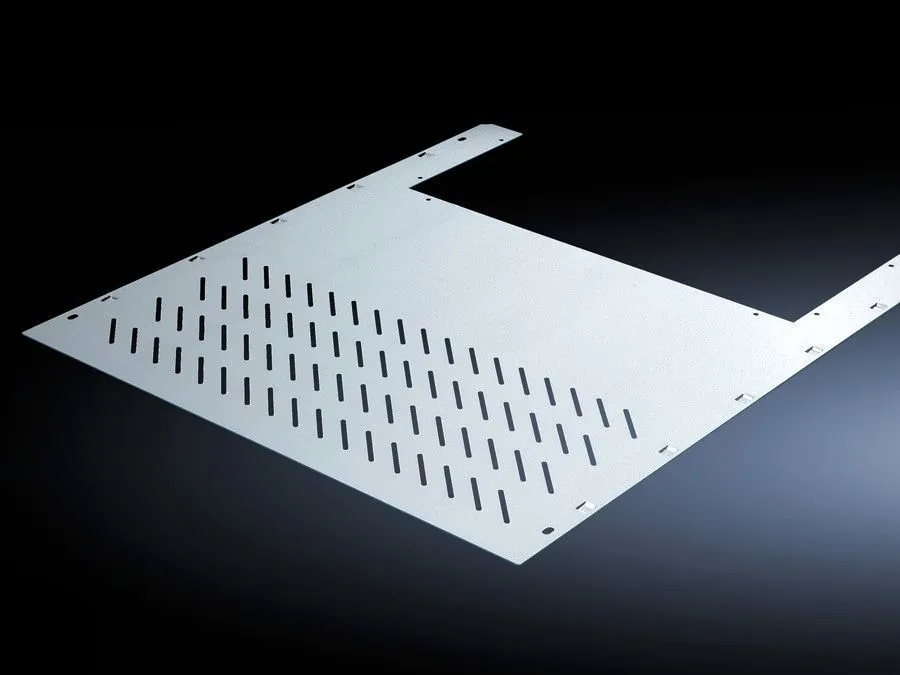

9673438 Rittal: SV Compartment divider, WT: 306x788 mm, for TS (W: 400 mm), with busbar gland
Article number
SV 9673.438
Design
With louvres
Product description
For the horizontal separation of compartments with vertical busbars. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
Mounting cut-out
Width:212 mm | Depth:201 mm
For compartment depth
800 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 306 mm | Depth: 788 mm
To fit
Width: = 400 mm
Packs of
4 pc(s).
Weight/pack
16.864 kg
Customs tariff number
73269098
EAN
4028177570900
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 306x788 mm, for TS (W: 400 mm), with busbar gland
Feature: Horizontal separation with vertical busbars (SV divider design with louvres). Business Impact: Creates clearly defined zones, reducing electrical cross-talk and simplifying maintenance. Application: Ideal for TS enclosures with 800 mm compartment depth and Form 3 or 4 configurations. Feature: Busbar gland integration and durable sheet steel construction. Business Impact: Ensures safe busbar routing, reduces wear, and extends service life in harsh industrial environments. Application: Suitable for power distribution panels requiring reliable busbar management. Feature: Precise dimensions and mounting cut-out for quick installation. Business Impact: Enables fast, drop-in installation with predictable fit, reducing commissioning time and field adjustments. Application: Works with TS width 400 mm and corresponding mounting provisions. Feature: Zinc-plated surface finish. Business Impact: Delivers corrosion resistance in demanding environments, lowering maintenance costs over the lifecycle. Application: Preferred in environments where panels encounter moisture or humidity. Feature: Pack size and weight efficiency. Business Impact: Streamlines logistics and budgeting with 4 pcs per pack and 16.864 kg total per pack. Application: Practical for multi-divider installations across larger switchgear assemblies. Feature: Material and classification references. Business Impact: Supports data-driven procurement with ETIM EC002525 and ECLASS 27400613, improving accuracy in MRO catalogs. Application: Facilitates consistent specification across engineering teams and suppliers.
