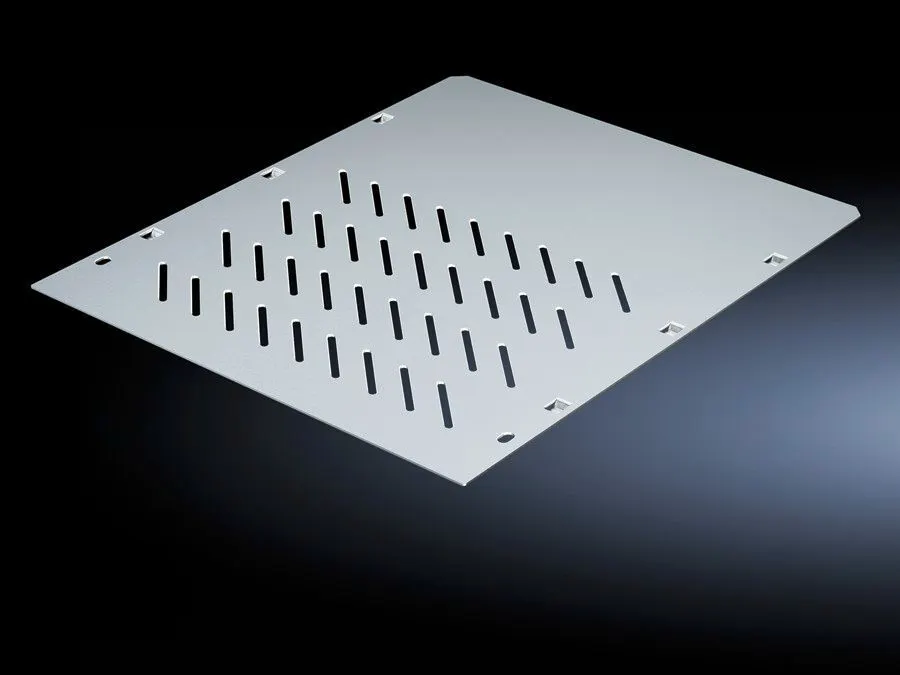

Rittal 9673443 SV Compartment divider - With louvres
Part Number: 9673443
Manufacturer
Rittal
Part number
9673443
Category
Alt Part Number
SV 9673.443
Quick Summary
Rittal 9673443 SV Compartment divider is used to create precise horizontal separation of compartments in TS enclosures. Engineers often struggle with cross-contamination and clutter inside multi-compartment panels, leading to reduced serviceability. This accessory aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, while remaining compatible with standard Rittal side panels. By leveraging a modular design and straightforward installation, it improves airflow management, enables cleaner wiring layouts, and supports faster assembly, ultimately reducing maintenance time and boosting overall enclosure reliability. In addition to its form-separation capability, it reinforces organized space planning for control gear and power electronics, delivering tangible business value through reduced downtime and easier upgrades.
Product Information
Extended Description
9673443 Rittal: SV Compartment divider, WT: 306x370 mm, for TS (W: 400 mm)
Article number
SV 9673.443
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
400 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 306 mm | Depth: 370 mm
To fit
Width: = 400 mm
Packs of
4 pc(s).
Weight/pack
4.44 kg
Customs tariff number
73269098
EAN
4028177704756
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 306x370 mm, for TS (W: 400 mm)
Feature → Business Impact → Application: The SV 9673.443 Compartment divider is designed with 1.25 mm zinc-plated sheet steel and louvres for durable construction and enhanced ventilation, reducing heat buildup in TS enclosures. This translates to improved component longevity and lower cooling costs in data centers and manufacturing lines, especially where dense control panels are common. Application: Use the divider to create Form separation in Form 3 or 4 configurations, ensuring clean separation of circuits and easier fault tracing in industrial automation cabinets. Feature → Business Impact → Application: The assembly instruction specifies that two mounting brackets are required per divider, enabling quick, repeatable installations with minimal field rework. Application: Ideal for high-mix, low-volume production environments where changeovers are frequent and quick reconfiguration of compartments is needed. Feature → Business Impact → Application: The product ships in packs of four with a total weight of 4.44 kg per pack, enabling efficient logistics and restocking for maintenance teams. Application: Suitable for multi-panel projects and retrofits where consistent divider spacing accelerates project timelines and reduces onsite handling risk.
Get a Quick Quote for a Rittal 9673443
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673443?
Enquire Now
FAQs
To install, mount the two brackets supplied per divider to the side panels as instructed, then position the divider so the louvers align for optimal airflow. Each divider pack contains four units, and the installation requires two brackets per divider. This setup minimizes wiring interference while keeping form separation intact during maintenance.
Yes. The divider is designed to work with TS enclosures and side-panel modules, enabling Form separation in Form 3 or Form 4 configurations. Its dimensions (306 mm width, 370 mm depth) and 400 mm overall width fit standard TS layouts, simplifying retrofits and new builds alike.
The divider is constructed from sheet steel with a thickness of 1.25 mm and finished with zinc plating for corrosion resistance. This combination provides mechanical strength suitable for industrial environments and long-term reliability in power management and distribution applications.
Dimensions are Width 306 mm and Depth 370 mm, designed to fit a TS enclosure width of 400 mm. For installation, two mounting brackets are required per divider, and packs contain four dividers, with each pack weighing 4.44 kg. Ensure compatibility with your enclosure’s internal mounting points before proceeding.
By enabling clean horizontal separation and organized wiring, the divider reduces crossover interference and simplifies fault isolation. The louved design promotes airflow, helping cooling systems maintain stable temperatures. These factors together shorten maintenance windows, speed up changeovers, and improve reliability in automation cabinets.
