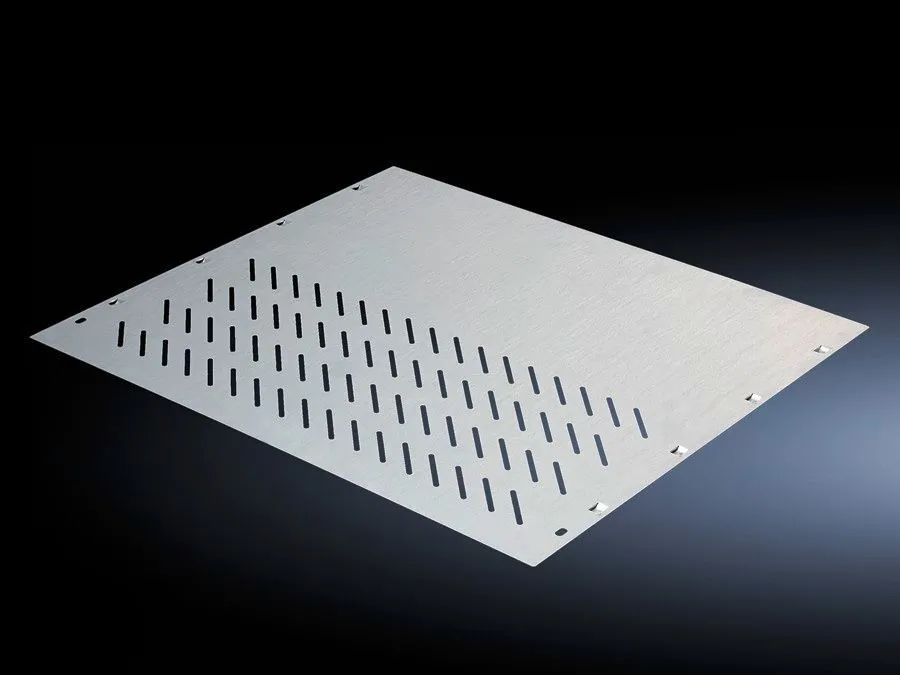

Rittal 9673444 SV Compartment divider - With louvres
Part Number: 9673444
Manufacturer
Rittal
Part number
9673444
Category
Alt Part Number
SV 9673.444
Quick Summary
Rittal SV Compartment divider is designed to horizontally separate compartments in switchgear enclosures. Engineers often struggle with mixed components and airflow, which this divider helps prevent by creating clear form separation. It aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 standards, supporting consistent procurement and interoperability. Compatible with TS enclosures and Rittal hardware, it streamlines installation and improves serviceability, reducing downtime and maintenance costs. This solution also supports scalable cabinet designs and standardized sizing, helping procurement teams optimize bill-of-materials while maintaining robust enclosure integrity.
Product Information
Extended Description
9673444 Rittal: SV Compartment divider, WT: 306x445 mm, for TS (W: 400 mm)
Article number
SV 9673.444
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
425 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 306 mm | Depth: 445 mm
To fit
Width: = 400 mm
Packs of
4 pc(s).
Weight/pack
5.3 kg
Customs tariff number
73269098
EAN
4028177562660
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 306x445 mm, for TS (W: 400 mm)
Feature design with louvres → Business impact improves internal airflow and heat dissipation, enabling safer component operation and reduced cooling load; Application ideal for TS enclosures where Form separation is required. Feature sheet steel, 1.25 mm, zinc-plated → Business impact delivers durable, corrosion-resistant construction for harsh industrial environments; Application suitable for long service life in factory floors and outdoor-rated cabinets. Feature dimensions 306x445 mm and compatibility with 400 mm TS width → Business impact ensures a precise fit, reducing gaps and retrofit time; Application supports clean partitioning in already populated cabinets. Feature packs of 4 and weight per pack 5.3 kg; installation requires 2 mounting brackets per divider → Business impact simplifies procurement and installation planning, lowering assembly time and on-site labor costs; Application beneficial for large-scale deployments in new build or upgrade projects. Feature depth suitability 425 mm and capability to form separation with side panels for Form 3 or Form 4 → Business impact ensures compliant separation structures; Application enables standardised wiring channels and better accessibility for maintenance and inspections.
Get a Quick Quote for a Rittal 9673444
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673444?
Enquire Now
FAQs
The SV 9673.444 divider is designed for TS enclosures with a 400 mm width. Install with two mounting brackets per divider, aligning the 306 mm width and 445 mm depth as specified. This ensures a secure, compliant separation of compartments and compatibility with side panels when forming Form 3 or Form 4 separations.
The louvres improve airflow control between compartments, reducing hotspot formation and enabling more uniform cooling. This supports higher component density without sacrificing reliability, making it suitable for dense power management and distribution cabinets.
Yes. When used in combination with side panel modules, this divider enables Form separation in accordance with Form 3 or Form 4, helping meet internal partitioning requirements for organized wiring and enhanced safety.
The divider aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613, providing standardized product classification for consistent sourcing and interoperability across procurement systems and catalogs.
By enabling clear compartment separation and easier access for maintenance, the divider reduces downtime during servicing, lowers cooling energy consumption, and simplifies installation in multi-cabinet deployments, delivering measurable reductions in total cost of ownership over the cabinet lifecycle.
