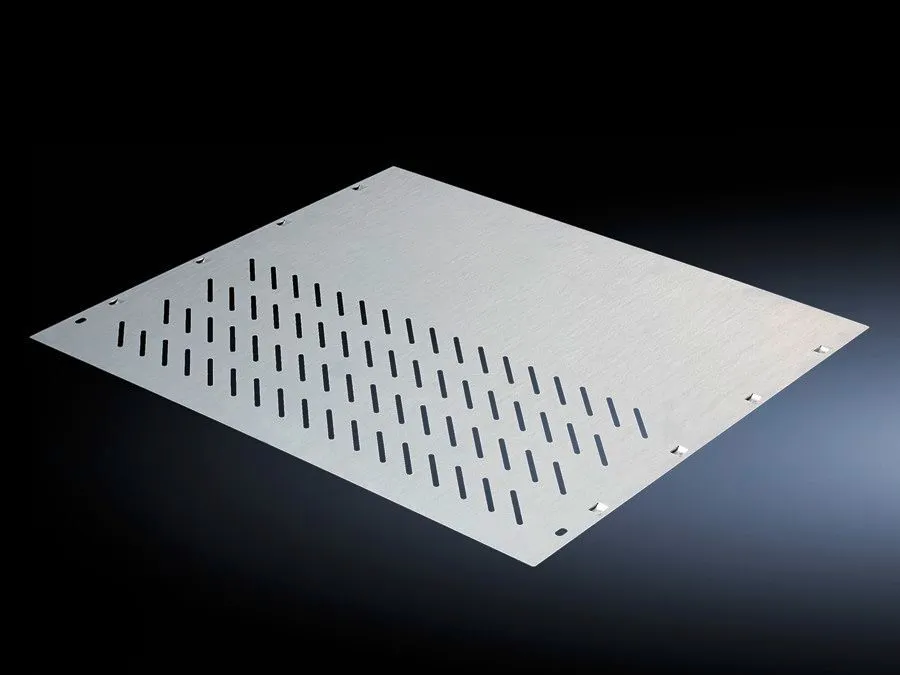

Rittal SV 9673.445 Compartment divider - Form 3/4
Part Number: 9673445
Manufacturer
Rittal
Part number
9673445
Category
Alt Part Number
SV 9673.445
Quick Summary
SV 9673.445 Compartment divider isolates compartments inside TS enclosures for tidy, safe electrical cabinets. Operators and maintenance teams often contend with cross‑contamination and uneven airflow between sections, which complicates cooling and fault isolation. The accessory supports Form separation up to Form 4 and is documented with ETIM EC002525 and ECLASS 27400613, while CE conformity is typically applicable to the surrounding enclosure system. The divider uses zinc‑plated sheet steel and precise machining to ensure a robust fit, reducing maintenance cycles. With a 306x588 mm footprint and a 400 mm TS width fit, it delivers reliable separation without custom fabrication, helping you optimize cabinet layout and serviceability.
Product Information
Extended Description
9673445 Rittal: SV Compartment divider, WT: 306x588 mm, for TS (W: 400 mm)
Article number
SV 9673.445
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
600 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 306 mm | Depth: 588 mm
To fit
Width: = 400 mm
Packs of
4 pc(s).
Weight/pack
7.4 kg
Customs tariff number
73269098
EAN
4028177562677
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 306x588 mm, for TS (W: 400 mm)
Feature: With louvres in the design. Business impact: Enhances ventilation and controlled air flow between compartments, improving cooling efficiency and reducing hot spots in industrial cabinets. Application: Ideal for TS enclosures requiring shared fresh air paths while maintaining separation between sections. Feature: Material and finish. Business impact: 1.25 mm sheet steel with zinc plating delivers corrosion resistance and long service life in harsh environments, lowering downtime and maintenance costs. Application: Suitable for factory floors, outdoor or humid facilities where metal components encounter sweat and dust. Feature: Dimensions and compatibility. Business impact: 306x588 mm footprint and TS 400 mm fit guarantee a precise, interference-free installation, minimizing rework and warranty issues. Application: Works with standard TS modules and side panel assemblies for faster project rollouts. Feature: Pack size and installation guidance. Business impact: Four pieces per pack and explicit assembly instruction (two mounting brackets per divider) streamline procurement and on-site installation, reducing labor effort. Application: Efficient for multi-divider configurations in large switchgear or control cabinet projects. Feature: Form separation capability. Business impact: Enables Form 3 or Form 4 separation within a single enclosure, supporting compliant cable routing and safer high‑density layouts. Application: Align with Form separation requirements in modular power distribution and control cabinets.
Get a Quick Quote for a Rittal 9673445
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673445?
Enquire Now
FAQs
Begin by confirming the enclosure width is 400 mm. Each divider requires two mounting brackets for secure mounting. Align the 306x588 mm divider with the side panels, fasten using the brackets and appropriate screws, and verify that the louvred face is oriented to optimize airflow. Check the 600 mm compartment depth specification and ensure spacing adheres to your Form separation configuration (Form 3 or 4). This setup minimizes interference with adjacent modules and simplifies future upgrades.
The divider is made from sheet steel at 1.25 mm thickness with a zinc‑plated surface for corrosion resistance. Each pack contains four pieces, with an individual divider weighing part of a 7.4 kg pack. The footprint is 306 mm wide by 588 mm deep, designed to fit TS enclosures with a 400 mm interior width. These specs support durable operation in industrial environments while maintaining precise dimensional control for quick installations.
Yes. The SV 9673.445 is designed to work with side panel modules to achieve Form separation in accordance with Form 3 or 4. This makes it suitable for high-density cabinet layouts where clear segregation of compartments is required for safety, airflow management, and organized wiring. Ensure two mounting brackets are used per divider to meet stability and vibration considerations in heavy-duty applications.
The product is documented with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications. For broader regulatory compliance such as CE marking and any IP-related considerations, refer to the official General Technical Information and the enclosure’s conformity documentation. Always verify with the latest datasheets to ensure your installation meets your regional requirements and project standards.
The divider’s zinc‑plated steel construction resists corrosion, reducing replacement frequency in challenging environments. Its precise dimensions and easy installation with two brackets per divider shorten project timelines, lowering labor costs. By enabling effective Form separation, it improves airflow, reduces heat buildup, and minimizes cross‑contamination between compartments, contributing to longer component life and lower maintenance costs in power management and distribution cabinets.
