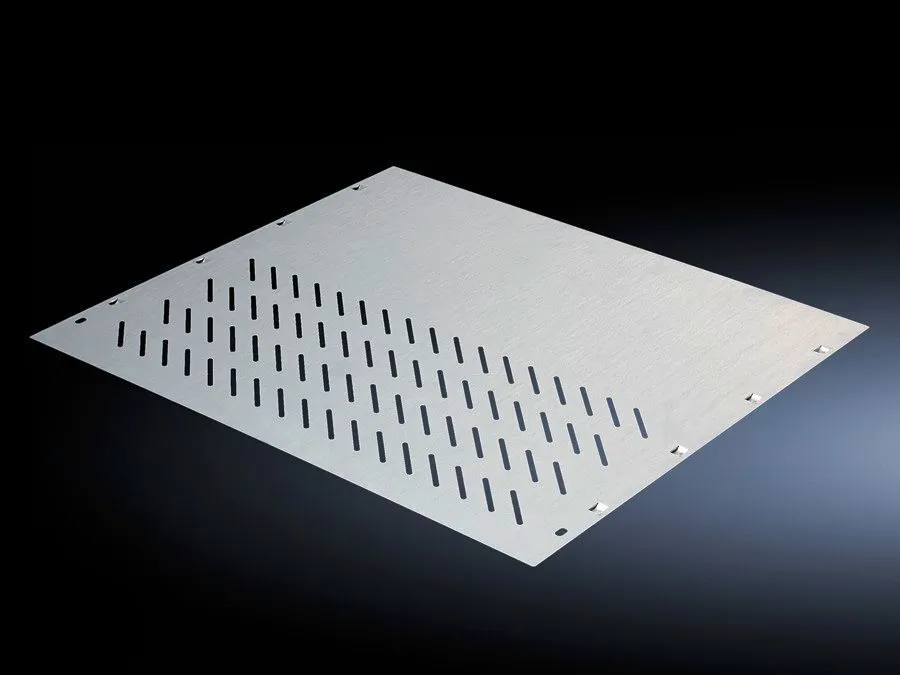

Rittal SV 9673.448 Compartment Divider - Form separation (3/4)
Part Number: 9673448
Manufacturer
Rittal
Part number
9673448
Category
Alt Part Number
SV 9673.448
Quick Summary
Rittal SV 9673.448 Compartment Divider is designed to horizontally separate compartments in TS enclosures, enabling cleaner wiring and improved airflow. This solves crowding and cross-talk when installing multiple power, control, and distribution components in a single cabinet. The design supports CE-compliant European installations and is compatible with standard enclosure accessories, including side panels for Form separation. ETIM 9 and ECLASS 8.0 classifications streamline BOMing and procurement. By integrating with TS side panels and matching the 800 mm compartment depth, this divider delivers modular scalability and a lower total cost of ownership through easier maintenance and improved reliability.
Product Information
Extended Description
9673448 Rittal: SV Compartment divider, WT: 306x788 mm, for TS (W: 400 mm)
Article number
SV 9673.448
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
800 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 306 mm | Depth: 788 mm
To fit
Width: = 400 mm
Packs of
4 pc(s).
Weight/pack
9.2 kg
Customs tariff number
73269098
EAN
4028177570825
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 306x788 mm, for TS (W: 400 mm)
Feature → Business Impact → Application: Louvres in the design improve ventilation and separation of compartments, reducing heat buildup and enabling more reliable performance in dense panel layouts; Application: ideal for TS enclosures with high-density components and hot-swapped devices. Feature → Business Impact → Application: 1.25 mm sheet steel with zinc-plated finish provides durable, corrosion-resistant hardware for harsh industrial environments; Application: suitable for manufacturing floors, data centres with equipment racks, and outdoor-rated or damp spaces. Feature → Business Impact → Application: Dimensions 306x788 mm and 800 mm compartment depth ensure consistent Form separation while maintaining alignment with existing side panels; Application: supports Form 3 or 4 separation in modular enclosures. Feature → Business Impact → Application: Packs of 4 pieces and weight 9.2 kg per pack reduce shipping costs and handling time; Application: efficient stocking, faster installation, and scalable deployment. Feature → Business Impact → Application: Assembly instruction requiring two mounting brackets per divider guarantees stable mounting and predictable service life; Application: straightforward retrofits or new builds with reliable, repeatable installation. Feature → Business Impact → Application: Compatibility with TS enclosure components and ETIM/ECLASS standards ensures smooth procurement and lifecycle integration; Application: minimizes design validation steps and accelerates project timelines.
Get a Quick Quote for a Rittal 9673448
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673448?
Enquire Now
FAQs
Install requires two mounting brackets per divider and alignment with TS side panels to achieve Form separation. The divider dimension of 306 mm width and 788 mm depth fits standard TS modules, and it ships in packs of four to simplify multi-site deployments.
Yes. The specification lists a compartment depth of 800 mm, ensuring correct fit within TS enclosures designed for this depth. The 306x788 mm footprint aligns with common TS interior dimensions.
The divider is made from sheet steel at 1.25 mm thickness and features a zinc-plated surface finish, delivering corrosion resistance and durable performance in industrial environments.
Each pack contains 4 pieces with a combined weight of 9.2 kg per pack, enabling cost-effective shipping and straightforward handling on-site during installation.
The product is aligned with ETIM 9 (EC002525) and ECLASS 8.0 (27400613) classifications to support compatible procurement. EAN for the product is 4028177570825, with the article number SV 9673.448.
