Rittal SV 9673.456 Compartment Divider - Busbar Gland
Part Number: 9673456
Manufacturer
Rittal
Part number
9673456
Category
Alt Part Number
SV 9673.456
Quick Summary
Rittal SV 9673.456 compartment divider is used to separate horizontal compartments with vertical busbars in TS enclosures. In tight control panel spaces, cluttered cable routing and limited mounting options create maintenance headaches and increase risk of mistakes. The data set lists Form separation compatible with Form 3 or 4 and a zinc-plated sheet steel construction; however, explicit CE, SIL or IP ratings are not shown. By enabling precise separation and reliable busbar access, this divider supports safer wiring, easier service, and scalable enclosure design for manufacturing environments. Coupled with 1.25 mm sheet steel and a 600 mm compartment depth, it complements TS enclosure configurations and reduces installation time for project teams.
Product Information
Extended Description

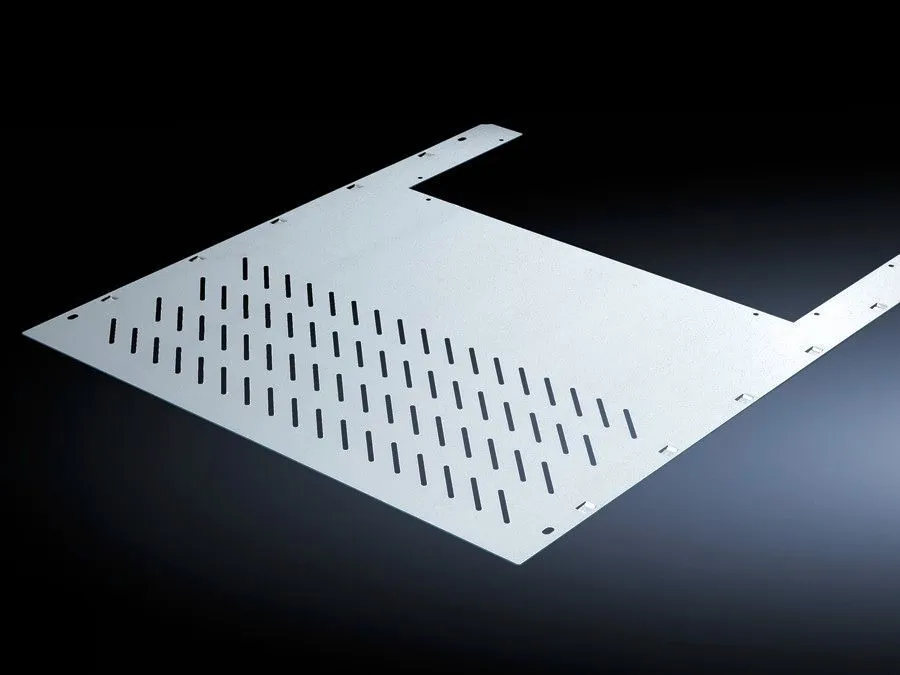

9673456 Rittal: SV Compartment divider, WT: 506x588 mm, for TS (W: 600 mm), with busbar gland
Article number
SV 9673.456
Design
With louvres
Product description
For the horizontal separation of compartments with vertical busbars. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
Mounting cut-out
Width:412 mm | Depth:201 mm
For compartment depth
600 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 506 mm | Depth: 588 mm
To fit
Width: = 600 mm
Packs of
4 pc(s).
Weight/pack
8.396 kg
Customs tariff number
73269098
EAN
4028177571037
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 506x588 mm, for TS (W: 600 mm), with busbar gland
Feature: Horizontal separation with vertical busbars. Business Impact: Improves safety and cable manageability within TS enclosures, reducing the risk of short circuits and mis-wiring. Application: Ideal for Form 3/4 configurations when paired with side-panel modules for modular, scalable cabinet layouts. Feature: Durable material and finish. Business Impact: Zinc-plated 1.25 mm sheet steel provides corrosion resistance and long service life in harsh industrial environments, lowering maintenance costs. Application: Suitable for factory floors, withstanding vibration and routine cleaning processes. Feature: Precise dimensions and mounting compatibility. Business Impact: Streamlined installation and predictable fit reduce project lead times and field modifications. Application: Fits TS width 600 mm, 506x588 mm divider footprint, mounting cut-out 412x201 mm; two brackets per divider recommended. Feature: Busbar gland integration. Business Impact: Enables neat termination points and reduces risk of contact with live components. Application: Supports vertical busbar systems in Form 3/4 separations. Feature: Pack configuration and logistics. Business Impact: Packs of four with weight 8.396 kg per pack simplify procurement and shipment planning. Application: Consistent supply for multi-divider installations and large enclosures.
Get a Quick Quote for a Rittal 9673456
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673456?
Enquire Now
FAQs
Install the divider within TS enclosures that are 600 mm wide. Each divider requires two mounting brackets, with a mounting cut-out of Width 412 mm x Depth 201 mm. The divider footprint is 506x588 mm and packs are supplied as four pieces, facilitating multi-divider installations alongside side-panel modules for Form 3/4 separation.
Compatibility is defined by a 600 mm width TS enclosure and a 506x588 mm divider footprint. The mounting cut-out must be 412x201 mm, and the assembly uses two mounting brackets per divider. The unit is designed for busbar gland integration and ships in packs of four, ensuring consistent sizing across installation groups.
Yes. The divider provides horizontal separation of compartments with vertical busbars, reducing crossing cables and improving organization. The zinc-plated 1.25 mm sheet steel offers durability, while the busbar gland supports neat termination points. Together with Form 3/4 configurations, this improves maintenance access and reduces the likelihood of wiring errors during servicing.
The provided data does not specify CE, SIL, or IP ratings. It lists ETIM 9 and ECLASS 8.0 classifications along with basic dimensions and materials. For regulatory compliance, verify with the supplier and reference local standards, especially in harsh or hazardous environments.
Each pack contains four dividers and weighs 8.396 kg. This packaging arrangement supports bulk installations and simplifies logistics for projects requiring multiple dividers in TS enclosures.
