Rittal SV 9673.458 Compartment divider - ETIM EC002525
Part Number: 9673458
Manufacturer
Rittal
Part number
9673458
Category
Alt Part Number
SV 9673.458
Quick Summary
SV Compartment divider is designed to horizontally separate compartments with vertical busbars in TS enclosures. Without it, busbar routing can create safety risks, heat buildup, and messy maintenance, making upgrades costly. It aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613, supporting accurate data classification and procurement workflows. The louvred design promotes efficient ventilation, and the built-in busbar gland simplifies wiring and reduces installation time. Used with side panels, it enables Form separation in accordance with Form 3 or 4, delivering safer, modular power distribution for industrial control cabinets.
Product Information
Extended Description

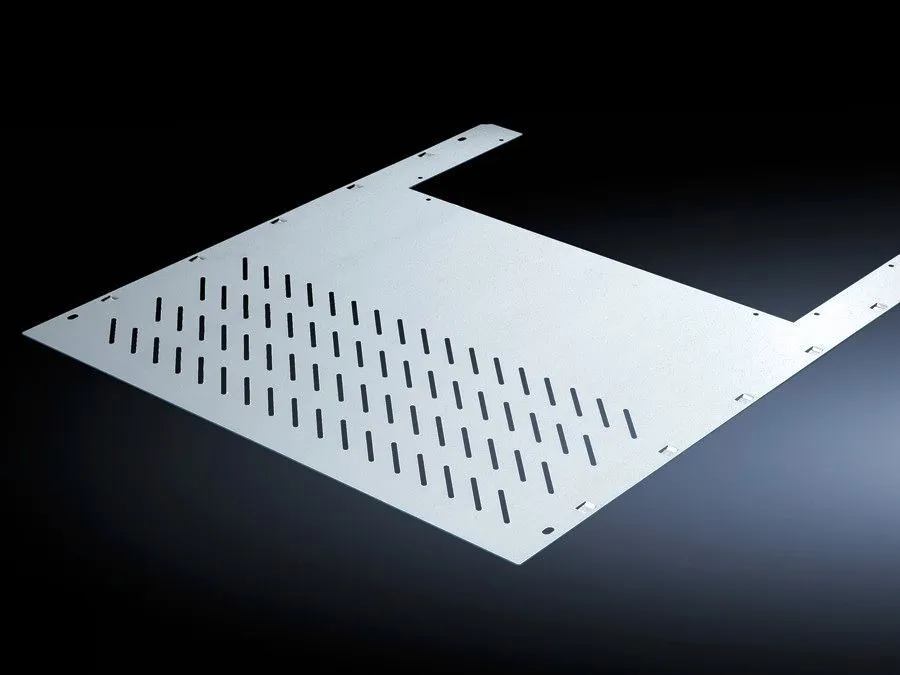

9673458 Rittal: SV Compartment divider, WT: 506x788 mm, for TS (W: 600 mm), with busbar gland
Article number
SV 9673.458
Design
With louvres
Product description
For the horizontal separation of compartments with vertical busbars. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
Mounting cut-out
Width:412 mm | Depth:201 mm
For compartment depth
800 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 506 mm | Depth: 788 mm
To fit
Width: = 600 mm
Packs of
4 pc(s).
Weight/pack
12.1 kg
Customs tariff number
73269098
EAN
4028177571051
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 506x788 mm, for TS (W: 600 mm), with busbar gland
The divider is manufactured from sheet steel, 1.25 mm thick, with a zinc-plated surface for corrosion resistance in harsh industrial environments. This combination delivers a rigid, durable barrier that withstands daily handling and enclosures in production facilities, reducing replacement intervals and maintenance costs. Dimensions and fit are tailored for TS enclosures with a 600 mm width (WT 506x788 mm), including a mounting cut-out of 412x201 mm, enabling clean Form separation with side panels and minimizing gaps in cable routing. The louvred design permits controlled airflow while the busbar gland provides safe, organized routing for vertical busbars, reducing hotspots and improving cooling efficiency. Two mounting brackets are required for each divider, ensuring secure, repeatable placement and easier alignment in the field, which shortens retrofit time. Packaged as four units per pack (12.1 kg per pack), this setup supports scalable stocking and logistics for multi-bay panels. The product is designed for Form separation in Form 3 and Form 4 configurations, delivering safer, compliant, and modular power distribution across industrial cabinets.
Get a Quick Quote for a Rittal 9673458
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673458?
Enquire Now
FAQs
Installation requires two mounting brackets per divider (as specified). Align the 506 mm width with the TS enclosure and use the 412x201 mm mounting cut-out to secure the divider. The process is straightforward when you have compatible side panels and the enclosure supports 600 mm form-factor; this ensures stable, repeatable alignment across bays.
The divider is made from 1.25 mm sheet steel with a zinc-plated finish for corrosion resistance. It measures 506 mm in width and 788 mm in depth, designed for TS enclosures with a 600 mm width. Each pack weighs 12.1 kg and includes four dividers per carton, with a mounting cut-out of 412x201 mm.
Yes. The SV 9673.458 divider is specified for horizontal separation to support Form separation in accordance with Form 3 or Form 4. The design includes a busbar gland to manage vertical busbars safely and maintain compliant separation between compartments.
The divider is categorized under ETIM 9 with EC002525 and ECLASS 8.0 with 27400613, enabling standardized data exchange and procurement. While not listing CE or IP ratings in the provided data, adherence to these classifications supports consistent product data across catalogs and sourcing platforms.
Expect improved safety by preventing cross-contact of busbars, enhanced cooling through vented louvres, and faster installation due to predefined dimensions and mounting requirements. The four-pack packaging aids stocking and logistics for multi-bay installations, contributing to lower total cost of ownership over cabinet life cycles.
