Rittal SV 9673.463 Compartment divider - 400 mm depth
Part Number: 9673463
Manufacturer
Rittal
Part number
9673463
Category
Alt Part Number
SV 9673.463
Quick Summary
The Rittal SV 9673.463 Compartment divider is designed for horizontal separation of compartments in TS enclosures. In dense switchgear environments, engineers seek reliable isolation without hindering airflow or cable management. Note: The data does not specify SIL, CE, or IP ratings; verify applicable certifications with your supplier. Constructed from zinc-plated sheet steel 1.25 mm and sized for a 400 mm compartment depth, it supports durable, compliant installations. Using this divider alongside side panels helps achieve Form 3 or Form 4 separation, improving safety, organization, and serviceability in power distribution applications. This approach translates to smoother assembly workflows and reduced commissioning time for panel builders and integrators.
Product Information
Extended Description

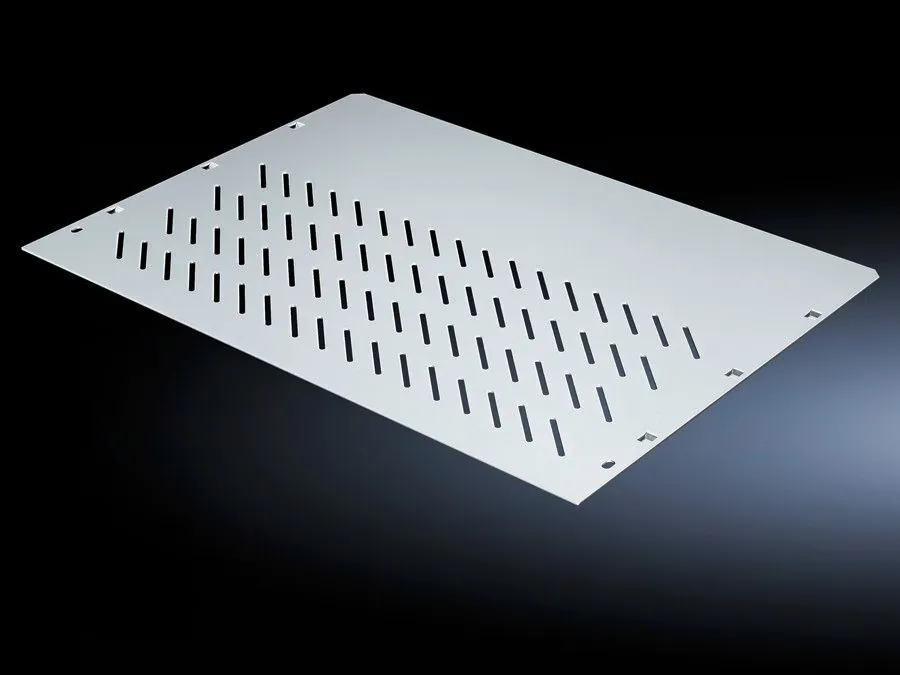

9673463 Rittal: SV Compartment divider, WT: 506x370 mm, for TS (W: 600 mm)
Article number
SV 9673.463
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
400 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 506 mm | Depth: 370 mm
To fit
Width: = 600 mm
Packs of
4 pc(s).
Weight/pack
7.04 kg
Customs tariff number
73269098
EAN
4028177704749
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 506x370 mm, for TS (W: 600 mm)
Feature: Sheet steel construction 1.25 mm with zinc plating → Business Impact → Enhanced corrosion resistance and long-term durability, reducing maintenance costs in harsh environments. Application → Ideal for TS enclosures in power distribution where reliability matters. Feature: Louvres integrated into the design → Business Impact → Promotes continuous cooling and airflow around components, lowering risk of thermal hotspots. Application → Suitable for densely populated panels with limited rack space. Feature: Precise dimensions (506x370 mm; fits 600 mm TS width) → Business Impact → minimizes unused cabinet space and simplifies layout planning, cutting installation time. Application → Great for standardized module rows in industrial control panels. Feature: Pack configuration of four with two mounting brackets per divider → Business Impact → Streamlines procurement and installation planning, accelerating project timelines. Application → Easy to plan for in large deployments. Feature: Material and finish (sheet steel, zinc-plated, 400 mm depth) → Business Impact → Combines mechanical strength with corrosion resistance, lowering lifetime costs. Application → Suitable for enclosure environments with exposure to dust and humidity. Feature: Compatibility with Form separation (Form 3 or Form 4) → Business Impact → Ensures compliance with enclosure segregation standards while maintaining access for maintenance. Application → Widely applicable in modular power distribution setups across industries.
Get a Quick Quote for a Rittal 9673463
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673463?
Enquire Now
FAQs
Mounting requires two brackets per divider. The divider is sized for TS enclosures with a 600 mm width, using standard side panels and the included mounting points. When assembling in packs of four, plan bracket placement to align with existing module rails, ensuring stable, vibration-resistant installation and easy future access.
The louvred design facilitates controlled airflow across compartments, reducing thermal hotspots while maintaining effective separation. This supports better thermal management in densely populated panels, helping maintain component longevity and stable operating temperatures without extra cooling hardware.
Yes. The SV 9673.463 is designed specifically to enable Form separation in accordance with Form 3 or Form 4 standards when used with compatible side panels. This makes it suitable for modular power distribution enclosures where distinct functional zones are required for safety and maintenance.
The provided data lists ETIM 9 EC002525 and ECLASS 8.0 27400613, along with standard GTIN and tariff details. CE, SIL, or IP ratings are not explicitly listed; verify applicable certifications with your supplier and ensure they meet your regional compliance requirements for electrical enclosures.
A 4-pack simplifies procurement and scheduling, reducing run-time purchases and interruptions. With each divider weighing 7.04 kg per pack and a straightforward two-bracket installation, field labor time decreases, leading to faster cabinet builds, lower labor costs, and predictable inventory needs for large installations.
