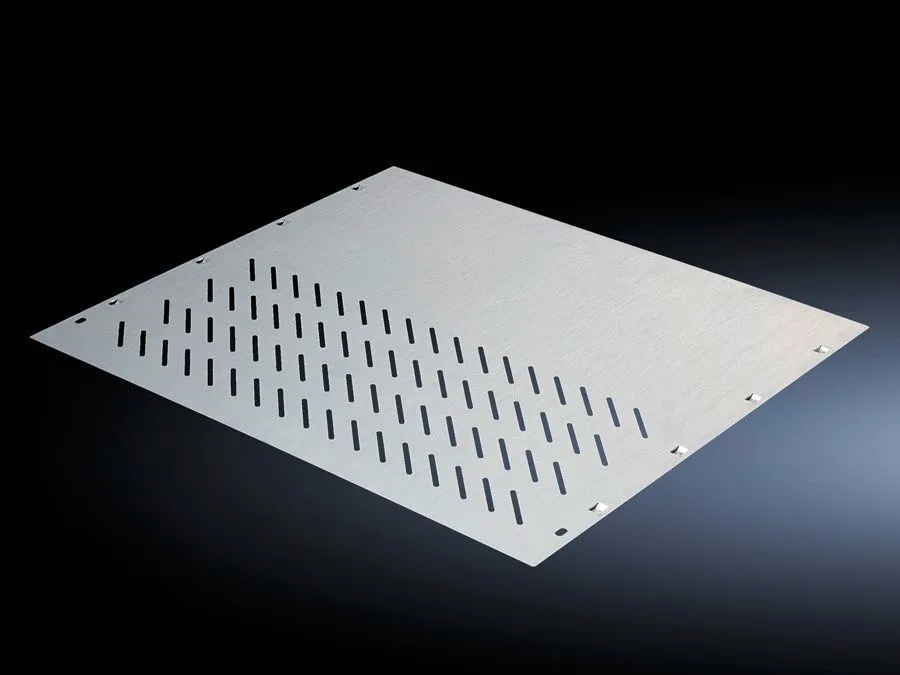

Rittal SV 9673.464 SV Compartment divider - Zinc-plated
Part Number: 9673464
Manufacturer
Rittal
Part number
9673464
Category
Alt Part Number
SV 9673.464
Quick Summary
Rittal SV 9673.464 SV Compartment divider is designed to horizontally separate compartments inside TS enclosure systems. Users often struggle with crowded panels and tangled cable routes, and this divider provides a clean, modular partition that simplifies routing and future reconfiguration. It aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, supporting consistent procurement, while the zinc-plated sheet steel delivers durable, corrosion-resistant performance. In practice, it enables Form 3 or Form 4 separation with minimal installation effort, helping scalability and serviceability over the life of the cabinet. This accessory adds value through improved organization, easier maintenance, and faster reconfiguration, making it a practical investment for industrial control panels and power management enclosures.
Product Information
Extended Description
9673464 Rittal: SV Compartment divider, WT: 506x445 mm, for TS (W: 600 mm)
Article number
SV 9673.464
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
425 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 506 mm | Depth: 445 mm
To fit
Width: = 600 mm
Packs of
4 pc(s).
Weight/pack
8.364 kg
Customs tariff number
73269098
EAN
4028177543355
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 506x445 mm, for TS (W: 600 mm)
Horizontal compartment separation in TS enclosures improves organization and reduces cross-coupling, delivering cleaner cable routing and safer maintenance. This is achieved through a precisely sized divider (WT 506x445 mm) designed to fit TS enclosures with a 600 mm width, enabling quick adaptation to changing panel layouts. Constructed from sheet steel 1.25 mm and zinc plated, the divider withstands industrial environments and repeated insertions/removals. The durable finish reduces corrosion and downtime, supporting longer service intervals and lower replacement costs. Two mounting brackets are required to install each divider, ensuring secure alignment with side panels. With a weight of 8.364 kg per pack and packs of four, installation remains efficient for teams handling standard panel workshops. In combination with side panel modules, the divider enables Form 3 or Form 4 separation, supporting compliant configurations in modular enclosures. The divider is sized to fit 506x445 mm footprint and targets a 425 mm compartment depth, providing consistent partitioning across the enclosure.
Get a Quick Quote for a Rittal 9673464
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673464?
Enquire Now
FAQs
Begin by pairing the divider with the corresponding TS enclosure side panels. Use two mounting brackets per divider to secure alignment, ensuring a flush fit with the enclosure width of 600 mm. Check that the 425 mm compartment depth is maintained, then route cables cleanly along the divider’s louvred design for Form separation in Form 3 or Form 4 configurations.
The SV 9673.464 uses sheet steel 1.25 mm with a zinc-plated finish, providing durable corrosion resistance. Its footprint is 506x445 mm, designed for TS enclosures at 600 mm width. The product ships in packs of four, with a weight of 8.364 kg per pack, enabling straightforward planning for panel revisions and stock management.
Yes. The divider is designed to create Form separation when used with the appropriate side panel modules, enabling Form 3 or Form 4 configurations. This supports modular enclosure planning, improves compartmentalization, and simplifies future reconfigurations without compromising accessibility.
The divider aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, aiding standardized procurement and data integration. While not a product safety label, these classifications help engineers ensure consistency across parts catalogs and maintenance records.
By organizing cabling, reducing cross-talk, and enabling quicker reconfiguration, the SV 9673.464 minimizes maintenance downtime and accelerates commissioning of changes. The durable zinc-plated steel and modular mounting reduce replacement frequency, contributing to lower lifecycle costs and higher overall system reliability in power management and distribution cabinets.
