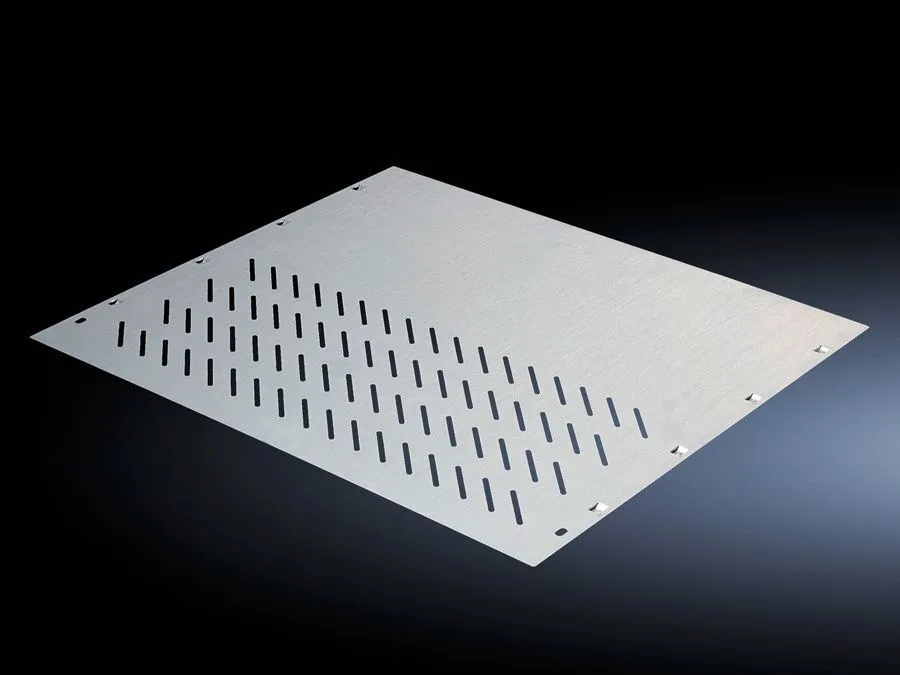

Rittal SV 9673.468 Compartment Divider - With Louvres
Part Number: 9673468
Manufacturer
Rittal
Part number
9673468
Category
Alt Part Number
SV 9673.468
Quick Summary
The Rittal SV 9673.468 Compartment Divider is designed to create horizontal separation inside TS enclosures for improved organization. Without proper dividers, cabling and equipment can become tangled, slowing maintenance and increasing the risk of cross-contamination and airflow issues. This accessory supports CE-compliant enclosure design and integrates with side-panel modules to enable Form separation in accordance with Form 3 or Form 4. Its 1.25 mm zinc-plated sheet steel construction with louvers provides robust, long-lasting performance while fitting TS enclosures at 600 mm width. By standardizing compartment boundaries, you gain faster fault isolation, easier upgrades, and consistent cabinet interiors—delivering tangible efficiency gains for panel builders and operators.
Product Information
Extended Description
9673468 Rittal: SV Compartment divider, WT: 506x788 mm, for TS (W: 600 mm)
Article number
SV 9673.468
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
800 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 506 mm | Depth: 788 mm
To fit
Width: = 600 mm
Packs of
4 pc(s).
Weight/pack
15.188 kg
Customs tariff number
73269098
EAN
4028177570849
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 506x788 mm, for TS (W: 600 mm)
Feature: 1.25 mm sheet steel with zinc-plated finish and louvers delivers corrosion resistance and durable airflow control. Business Impact: Reduces maintenance frequency and guards against moisture-related deterioration while preserving rack integrity. Application: Ideal for TS enclosures where a horizontal separation of compartments is required for Form 3 or Form 4 installations. Feature: Dimensions 506x788 mm and depth compatibility with 800 mm compartments; To fit TS enclosures of 600 mm width. Business Impact: Ensures precise fit, minimizes gaps, and simplifies planning for modular racks. Application: Reduces custom fabrication time and supports quick upgrades in growing process lines. Feature: Packs of 4 with an assembly instruction requiring 2 mounting brackets per divider. Business Impact: Streamlines stocking, speeds up installation, and improves install consistency across multiple cabinets. Application: Use in multi-cabinet deployments to maintain uniform compartment separation. Feature: Weight per pack 15.188 kg; Material and surface finish meet standard industrial requirements. Business Impact: Predictable logistics and reliable handling during installation campaigns. Application: Suitable for high-volume rollouts and service intervals. Feature: For compartment depth of 800 mm and compatibility to fit Width = 600 mm TS enclosures. Business Impact: Compatible with common Rittal TS dimensions, reducing the need for adapters. Application: Works with side-panel modules to achieve clean Form separation in modern control panels.
Get a Quick Quote for a Rittal 9673468
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673468?
Enquire Now
FAQs
Install requires two mounting brackets per divider. Align the 506x788 mm divider with the TS enclosure interior, secure brackets to the enclosure frame, then attach the divider to the brackets. Ensure the 600 mm width is maintained and the depth remains within the 800 mm specification for proper clearance and ventilation.
Yes. The divider is designed to fit TS enclosures with a 600 mm width and is specified for a compartment depth of 800 mm, providing a precise and stable partition within standard cabinet dimensions.
The divider incorporates a louverd design to balance barrier function with airflow. This helps maintain adequate cooling paths while separating compartments, reducing hotspots and improving overall enclosure performance.
Each pack contains four dividers, with a weight of 15.188 kg per pack. Plan for two mounting brackets per divider during installation, and factor in 4-unit pack handling when planning cabinet deployments or maintenance projects.
For European installations, CE compliance is typically expected for enclosure accessories. Also consider IP protection requirements for enclosure integrity and SIL safety assessments if the divider impacts critical control-circuit isolation. Verify project standards to ensure full regulatory alignment.
