Rittal SV 9673.476 SV Compartment divider - With busbar gland
Part Number: 9673476
Manufacturer
Rittal
Part number
9673476
Category
Alt Part Number
SV 9673.476
Quick Summary
Rittal SV 9673.476 SV Compartment divider enables horizontal separation of compartments in TS enclosures with vertical busbars. This addresses the common pain point of achieving reliable form separation while fitting busbar glands in compact TS cabinets. Key classifications include ETIM 9 EC002525 and ECLASS 8.0 27400613, helping ensure interoperability and procurement accuracy. In practice, this divider works with side panel modules to deliver Form separation in accordance with Form 3 or Form 4, enabling safe, organized power and signal routing. The design supports efficient installation and scalable panel architectures, delivering value through reduced downtime, easier maintenance, and consistent component sourcing in industrial automation projects.
Product Information
Extended Description

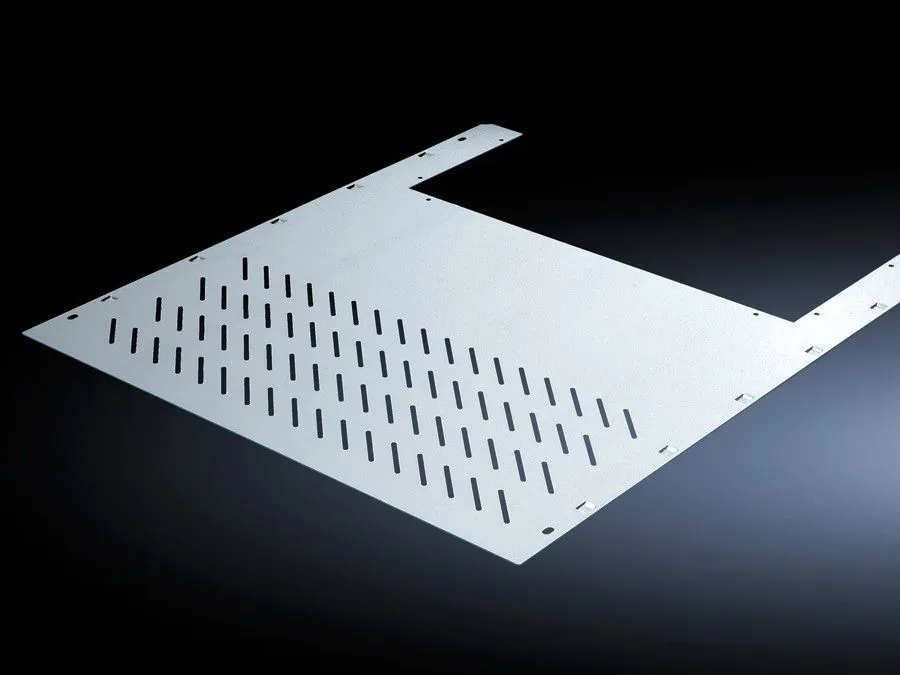

9673476 Rittal: SV Compartment divider, WT: 706x588 mm, for TS (W: 800 mm), with busbar gland
Article number
SV 9673.476
Design
With louvres
Product description
For the horizontal separation of compartments with vertical busbars. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
Mounting cut-out
Width:612 mm | Depth:201 mm
For compartment depth
600 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 706 mm | Depth: 588 mm
To fit
Width: = 800 mm
Packs of
4 pc(s).
Weight/pack
11.288 kg
Customs tariff number
73269098
EAN
4028177571075
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 706x588 mm, for TS (W: 800 mm), with busbar gland
Feature: Robust sheet steel construction with zinc-plated finish. Business Impact: Delivers corrosion resistance and a longer service life in harsh industrial environments, reducing maintenance costs. Application: Use in TS enclosures with a 600 mm compartment depth to maintain reliable vertical busbar separation. Feature: Louvre-design for improved airflow. Business Impact: Helps manage heat within the panel, improving reliability and potentially lowering cooling energy needs. Application: Ideal for compartments housing vertical busbars where convection paths are limited. Feature: Precise mounting cut-out 612 mm width and 201 mm depth; compatible with a TS W 800 mm frame. Business Impact: Simplifies retrofits and ensures a secure installation with predictable tolerances. Application: Two mounting brackets are required per divider to meet TS enclosure mounting standards. Feature: Form separation capability with busbar gland integration. Business Impact: Enables Form 3/4 separation, reducing cross-cabinet electrical interference and improving safety. Application: Works alongside side panel modules for compliant enclosure layouts. Feature: Pack configuration and identification for procurement. Business Impact: Packs of 4 units per order streamline logistics and stock planning; weight per pack and GTIN/EAN simplify catalog management. Application: Suited for repeated installations across large-scale power distribution panels.
