Rittal SV 9673.478 Compartment Divider - Form Separation
Part Number: 9673478
Manufacturer
Rittal
Part number
9673478
Category
Alt Part Number
SV 9673.478
Quick Summary
SV 9673.478 compartment divider is designed to horizontally separate compartments in TS cabinets using vertical busbars. This helps prevent cross-talk and heat transfer between zones, addressing common enclosure partition challenges. CE marking for European safety compliance, RoHS conformity for hazardous substances, and compatibility with standard enclosure practices support reliable deployment in industrial environments. The design accommodates side panel modules to enable Form separation in Form 3 or 4 configurations, while the zinc-plated sheet steel body provides durable corrosion resistance. With its robust construction and simple integration, this divider delivers consistent isolation, faster installation, and predictable maintenance outcomes for power management and distribution cabinets.
Product Information
Extended Description

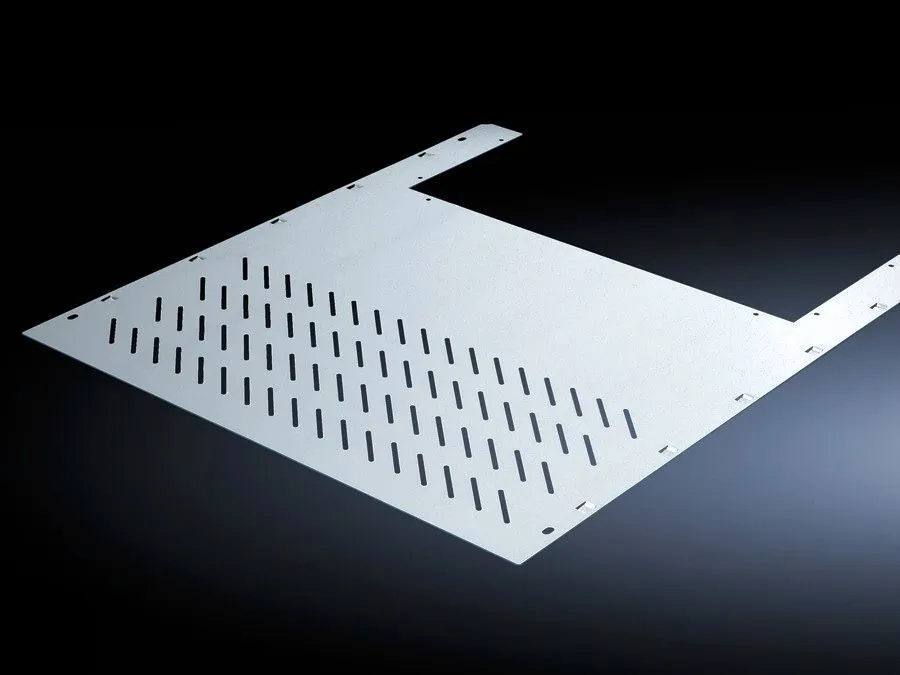

9673478 Rittal: SV Compartment divider, WT: 706x788 mm, for TS (W: 800 mm), with busbar gland
Article number
SV 9673.478
Design
With louvres
Product description
For the horizontal separation of compartments with vertical busbars. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
Mounting cut-out
Width:612 mm | Depth:201 mm
For compartment depth
800 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 706 mm | Depth: 788 mm
To fit
Width: = 800 mm
Packs of
4 pc(s).
Weight/pack
16 kg
Customs tariff number
73269098
EAN
4028177571099
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 706x788 mm, for TS (W: 800 mm), with busbar gland
Feature → Business Impact → Application: The SV 9673.478 uses a 1.25 mm sheet steel body with zinc-plated finish, delivering long service life in demanding plant environments and reducing maintenance costs for metalwork in switchgear. This translates to lower ongoing repair needs and higher uptime when partitioning high-density busbar arrangements in TS enclosures. Application-wise, it supports horizontal separation of compartments with vertical busbars, particularly useful in modular data center and factory automation cabinets where clean segmentation improves reliability.Feature → Business Impact → Application: Dimensions of 706x788 mm (WT for TS 800 mm) and a 612x201 mm mounting cut-out provide a precise fit for standard Rittal TS frames, simplifying installation and minimizing field modification time. Practically, engineers can rapidly deploy the divider with confidence that it aligns with the enclosure width and depth, enabling faster project timelines in electrical distribution and control cabinet projects.Feature → Business Impact → Application: The design includes a busbar gland and is intended to be installed with two mounting brackets per divider, ensuring rigid mounting and vibration resistance in industrial environments. This reduces the risk of component shift during operation, improving electrical integrity and safety in panel assemblies for automation lines and packaging machinery.Feature → Business Impact → Application: The product supports Form separation when used with side panel modules, enabling Form 3 or Form 4 configurations. This provides a compliant, scalable pathway for segregating live compartments from control circuitry, which is essential for safety, regulatory compliance, and easier maintenance in complex switchgear installations.Feature → Business Impact → Application: Pack composition and logistics are optimized with four pieces per pack and a weight of 16 kg per pack, aiding warehouse handling and shipping efficiency. In practice, distributors and OEMs can optimize stock planning and reduce on-site lifting time during cabinet upgrades or expansions in manufacturing plants.
